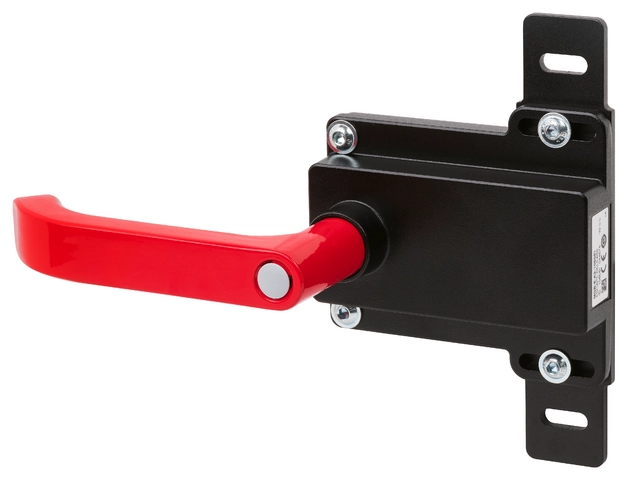

Escape release module MGB-E... pre-assembled on mounting plate
- Escape release from the danger zone
- Mounted on mounting plate
- With red handle
- 115 mm long
Description
Escape release
The safety system MGB can be equipped with an escape release module. The escape release enables people shut in to open the locked door from the danger zone. It is only necessary to actuate the door handle.
The actuating direction automatically adapts to the actuating direction of the handle module and does not need to be changed. The actuation axis supplied is suitable for profiles up to 40 mm.
Extended actuation axis
Optionally, a 250 mm long actuation axis (instead of 115 mm) can be ordered for thicker doors or profiles > 40 mm. The axis can be shortened to the required dimension.
Dimension drawing
| 1 | Door handle |
| 2 | Housing |
| 3 | Actuation axis 8 x 8 mm, 115 mm long |
| 4 | Protective sleeve, 52 mm long |
Dimension drawing
Technical data
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Die-cast zinc/stainless steel powder-coated |
| Weight | |
| Net | 1,05 kg |
| Ambient temperature | -20 ... 55 °C |
| Mechanical life | 1 x 106 |
| Installation orientation | Any |
Other
| Additional feature | With mounting plate |
| Product version number | V2.0.0 |
