Extended actuation axis for MGB-E...
Description

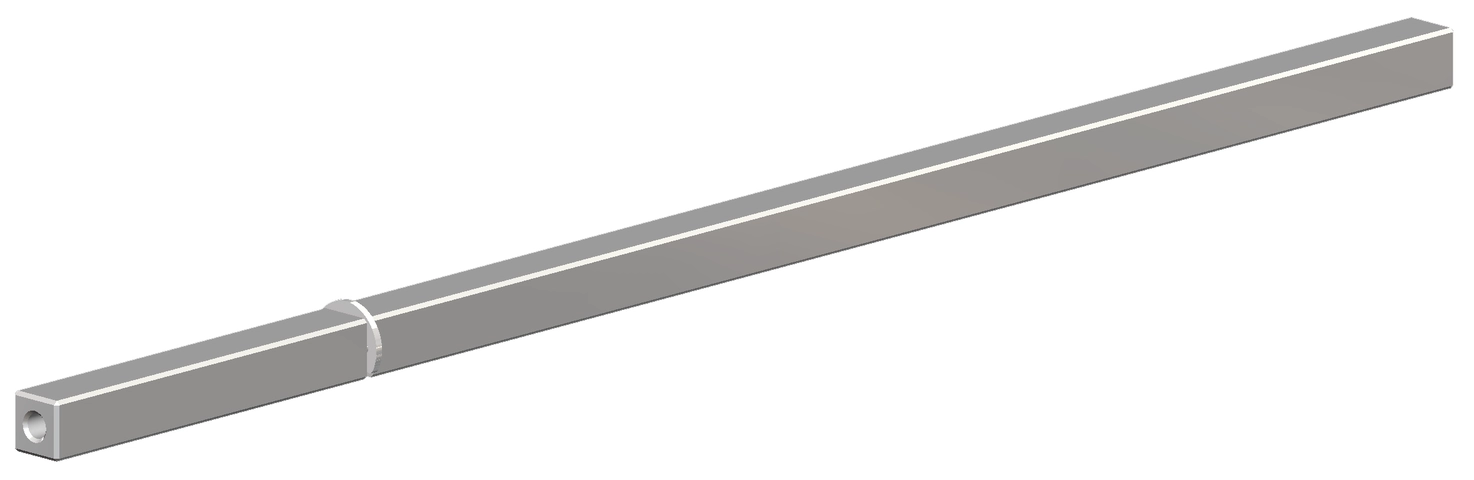

250 mm long, square drive 8 x 8 mm (with protective sleeve, 182 mm long)
Dimensional drawings
| 1 | Door handle |
| 2 | Housing |
| 3 | Actuation axis 8 x 8 mm, 250 mm long |
| 4 | Protective sleeve, 182 mm long |
Technical data
Mechanical values and environment
| Dimensions | 250 mm |
| Material | USt 37-1K or similar |
