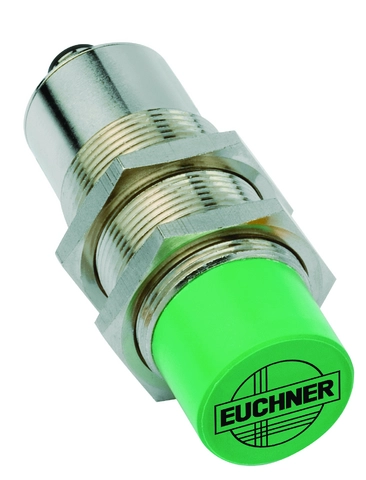

Read-only head CIT3A with parallel interface, plugged in axially
Description
Attention:
On the use of a screened cable the connecting cable is allowed to be max. 50 m long.
Dimensional drawings
| 1 | LED |
| 1) | Clear zone |
| 2 | Active face |
| m | Center offset |
| s | Read distance |
Connection examples
Technical data
Approvals
Electrical connection values
| Output type | Push-Pull |
| Output voltage | |
| 0 ... 2 V DC for LOW - level | |
| min. UB -3 V DC for HIGH - level | |
| Operating voltage DC | 20 ... 24 ... 28 V DC (All electrical connections must be isolated from the mains either by safety transformers according to IEC/EN 61558-2-6 with limitation of the output voltage in the event of a fault or by equivalent isolation measures.) |
| Input voltage | |
| min. 15 V DC SKIP input HIGH - level | |
| max. 2 V DC SKIP input LOW - level | |
| Switching current | |
| per output | max. 30 mA |
| Current consumption | |
| without load | 65 ... 100 mA |
| Resistance | 4.5 kΩ Input resistance SKIP Input |
Mechanical values and environment
| Connection type | M12 plug, 8-pin, axial connection (The screen of the connection cable, connecting cable is conductively connected to the housing of the reading head via the knurled nut of the M12 plug connector(s).) |
| Mounting type | surface |
| Degree of protection | IP67 |
| Ambient temperature | 0 ... +50 °C |
| Material | |
| Housing | CuZn, nickel plated |
Interface
| Date interface | 4-bit parallel, binary coded via HIGH/LOW level |
In combination with data carriers CIS3AP50X50SH16YSNOU, CIS3AP50X50SH16YSNOP
| Read distance | |
| at 25°C, center offset m=0 mm | 7 ... 12 ... 20 mm (It is necessary to maintain the minimum distance so that the data transfer to the read head functions without interference when the data carrier is approached from the side.) |
| Center offset | |
| Read distance s = 12 mm | -11 ... 11 mm |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
Doc. no.
Version
Language
Size
Doc. no.
EDC2077155
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001517
Version
Language
Size
0,1 MB
Other Documents
Ordering data
| Ordernumber | 071900 |
| Item designation | CIT3APL1N30-STA |
| Gross weight | 0,22kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-28-04-01 Identification, RFID Reader |
