CIT3APL1G05ST (Order no. 077805)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

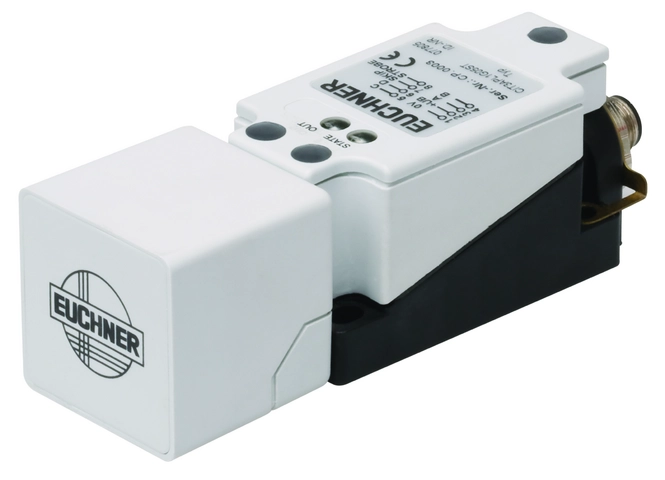

Read-only head CIT3A G05 with parallel interface, plugged in axially

Description

Attention:

On the use of a screened cable the connecting cable is allowed to be max. 50 m long.

Dimensional drawings

1	Active face
2	LED status indication
3	Shield spring
m	Center offset
s	Read distance

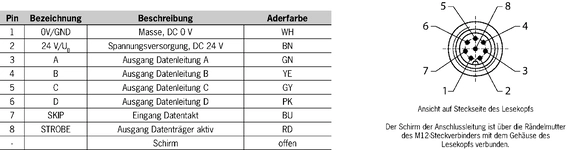

Connection examples

Technical data

Approvals

Electrical connection values

Output type	Push-pull
Output voltage
	0 ... 2 V DC for LOW level
	UB- 3 ... UB V DC for HIGH level
Operating voltage DC	20 ... 24 ... 28 V DC (All the electrical connections must either be isolated from the mains supply by a safety transformer according IEC/ EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.)
Input voltage
	max. 2 V DC SKIP input LOW level
	min. 15 V DC SKIP input HIGH level
Switching current
per output	-30 ... +30 mA
Current consumption	90 ... 120 mA without load current
Resistance	4.5 kΩ Input resistance

Mechanical values and environment

Connection type	M12 plug, 8-pin, axial connection (The screen on the connecting cable is connected to the read head's screen bonding clamp via the knurled nut on the M12 plug connector.)
Mounting type	surface
Degree of protection	IP65
Ambient temperature	0 ... +50 °C
Material
Housing	Plastic

Interface

Date interface	4-bit parallel, binary coded via HIGH/LOW level

Date interface

4-bit parallel, binary coded via HIGH/LOW level

In combination with actuator CIS3AP50X50SH16YSNOU, CIS3AP50X50SH16YSNOP

Read distance
at 25°C	14 ... 20 ... 28 mm (Compliance with the minimum distance is required if data transmission to the read head is to function without interference when the data carrier is approached from the side.)
Center offset
at 25 °C, read distance	-13 ... 13 mm

Accessories

Connection material

Connecting cable with plug connector M12, 8-pin, 10 m

077752
C-M12F08-08X025PV10,0-GA-077752

M12 female plug, 8-pin
Straight plug connector
PVC cable, screened
Cable length 10 m
With flying lead

Connecting cable with plug connector M12, 8-pin, 15 m

077753
C-M12F08-08X025PV15,0-GA-077753

M12 female plug, 8-pin
Straight plug connector
PVC cable, screened
Cable length 15 m
With flying lead

Connecting cable with plug connector M12, 8-pin, 20 m

077871
C-M12F08-08X025PV20,0-GA-077871

M12 female plug, 8-pin
Straight plug connector
PVC cable, screened
Cable length 20 m
With flying lead

Connecting cable with plug connector M12, 8-pin, 25 m

077872
C-M12F08-08X025PV25,0-GA-077872

M12 female plug, 8-pin
Straight plug connector
PVC cable, screened
Cable length 25 m
With flying lead

Connecting cable with plug connector M12, 8-pin, 5 m

077751
C-M12F08-08X025PV05,0-GA-077751

M12 female plug, 8-pin
Straight plug connector
PVC cable, screened
Cable length 5 m
With flying lead

Connecting cable with plug connector M12, 8-pin, 50 m

077873
C-M12F08-08X025PV50,0-GA-077873

M12 female plug, 8-pin
Straight plug connector
PVC cable, screened
Cable length 50 m
With flying lead

Data carrier

Data carrier CIS3A

088822
CIS3AP50X50SH16YSNOU

Square design, 50 x 50 mm
Unprogrammed

088823
CIS3AP50X50SH16YSNOP

Square design, 50 x 50 mm
Programmed
