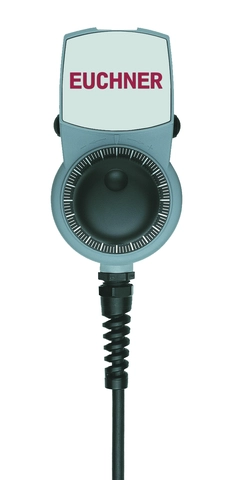

HBA-095561 (Order no. 095561)
Choose content
HBA housing with handwheel - kit
- Handwheel, 100 pulses, wear-free magnetic detent mechanism
- Hole for EMERGENCY STOP device (sealed with blind plug)
- Cable gland for cable diameter 5-10 mm
- Rubber-coated mounting magnet on the rear of the housing
- 6 fixing domes for printed circuit board installation in top shell
- 1 enabling switch, 3-stage, 2 NO contacts
Description
Notes
- Attention: housing HBA-095561 is suitable only for EMERGENCY STOP device 106435, short design.
Dimensional drawings
Technical data
Approvals
Operating and display elements
| Item | Color | Extras | Version | Slide-in label | Note slide-in label | Switching element | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| see data sheets | black plastic adjusting wheel | - | Handwheel | - | 1 | ||||
| see data sheets | black | - | Enabling switch, 3-stage | 2 NO contacts | 1 |
Electrical connection values
| Output type | |
| Handwheel | RS422 |
| Operating voltage DC | |
| Handwheel | 5 V DC -5% ... +5% |
| EMC protection requirements | |
| according to CE | EN 61000-6-2, EN 61000-6-4 (Handwheel) |
| Pulses per revolution | |
| Handwheel | 2x100 |
| Switching capacity (VA) | |
| Enabling switch | max. 0.25 VA |
| Switching voltage | |
| Enabling switch | max. AC/DC 42 V |
| Switching current | |
| Enabling switch | max. 100 mA |
| Current consumption | |
| without load | max. 80 mA (Handwheel) |
Mechanical values and environment
| Number of bores | 1 for emergency stop with turn-to-reset button |
| Storage temperature | -25 ... 70 °C |
| Detent positions per revolution | |
| Handwheel | 100 (magnetic detent mechanism) |
| Ambient temperature | 0 ... 50 °C |
| Material | Polycarbonate |
Components included in the set
| Included accessories | Cable gland and blind plug for emergency stop hole |
Miscellaneous
| Color | Gray RAL 7040 |
Accessories
Connection material
Connecting cable for hand-held pendant stations HBA/HBM/HBL/ZSM, coiled
086721
SPIRALLEITUNG 12-ADRIG 3,9M
SPIRALLEITUNG 12-ADRIG 3,9M
- PUR cable, coiled
- Cable length 3.9 m
- With flying leads
- With 12 cores, cut-off cleanly
086722
SPIRALLEITUNG 12-ADRIG 5,4M
SPIRALLEITUNG 12-ADRIG 5,4M
- PUR cable, coiled
- Cable length 5.4 m
- With flying leads
- With 12 cores, cut-off cleanly
087408
SPIRALLEITUNG 23-ADRIG 3,9M
SPIRALLEITUNG 23-ADRIG 3,9M
- PUR cable, coiled
- Cable length 3.9 m
- With flying leads
- With 23 cores, cut-off cleanly
087409
SPIRALLEITUNG 23-ADRIG 5,4M
SPIRALLEITUNG 23-ADRIG 5,4M
- PUR cable, coiled
- Cable length 5.4 m
- With flying leads
- With 23 cores, cut-off cleanly
097190
SPIRALLEITUNG 35-ADRIG 3,9M
SPIRALLEITUNG 35-ADRIG 3,9M
- PUR cable, coiled
- Cable length 3.9 m
- With flying leads
- With 35 cores, cut-off cleanly
097191
SPIRALLEITUNG 35-ADRIG 5,4M
SPIRALLEITUNG 35-ADRIG 5,4M
- PUR cable, coiled
- Cable length 5.4 m
- With flying leads
- With 35 cores, cut-off cleanly
Connecting cable for hand-held pendant stations HBA/HBM/HBL/ZSM, straight
087381
LEITUNG 12-ADRIG 10,0M
LEITUNG 12-ADRIG 10,0M
- PUR cable, straight
- Cable length 10 m
- With flying leads
- With 12 cores, cut-off cleanly
087379
LEITUNG 12-ADRIG 3,5M
LEITUNG 12-ADRIG 3,5M
- PUR cable, straight
- Cable length 3.5 m
- With flying leads
- With 12 cores, cut-off cleanly
087380
LEITUNG 12-ADRIG 5,0M
LEITUNG 12-ADRIG 5,0M
- PUR cable, straight
- Cable length 5 m
- With flying leads
- With 12 cores, cut-off cleanly
087384
LEITUNG 23-ADRIG 10,0M
LEITUNG 23-ADRIG 10,0M
- PUR cable, straight
- Cable length 10 m
- With flying leads
- With 23 cores, cut-off cleanly
087382
LEITUNG 23-ADRIG 3,5M
LEITUNG 23-ADRIG 3,5M
- PUR cable, straight
- Cable length 3.5 m
- With flying leads
- With 23 cores, cut-off cleanly
087383
LEITUNG 23-ADRIG 5,0M
LEITUNG 23-ADRIG 5,0M
- PUR cable, straight
- Cable length 5 m
- With flying leads
- With 23 cores, cut-off cleanly
097187
LEITUNG 35-ADRIG 10,0M-097187
LEITUNG 35-ADRIG 10,0M-097187
- PUR cable, straight
- Cable length 10 m
- With flying leads
- With 35 cores, cut-off cleanly
097189
LEITUNG 35-ADRIG 3,5M
LEITUNG 35-ADRIG 3,5M
- PUR cable, straight
- Cable length 3.5 m
- With flying leads
- With 35 cores, cut-off cleanly
097188
LEITUNG 35-ADRIG 5,0M
LEITUNG 35-ADRIG 5,0M
- PUR cable, straight
- Cable length 5 m
- With flying leads
- With 35 cores, cut-off cleanly
Function expansion
Downloads
Single Documents
Data sheets
Data sheet
Doc. no.
Version
Language
Size
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Doc. no.
2127844
Version
01
Language
Size
0,6 MB
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Doc. no.
2127844
Version
01
Language
Size
0,5 MB
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2109732
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001586
Version
Language
Size
0,2 MB
Instructions
Operating Instructions Hand-Held Pendant Stations HBA/HBM
Doc. no.
Version
Language
Size
Operating Instructions Hand-Held Pendant Stations HBA/HBM
Mode d’emploi Pupitres portables HBA/HBM
Betriebsanleitung Handbediengeräte HBA/HBM
Istruzioni di impiego Dispositivo di comando manuale HBA/HBM
Mode d’emploi Pupitres portables HBA/HBM
Betriebsanleitung Handbediengeräte HBA/HBM
Istruzioni di impiego Dispositivo di comando manuale HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,9 MB
Manual de instrucciones Botoneras HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,3 MB
Betriebsanleitung Handbediengeräte HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,3 MB
Návod k použití Ruční ovladače HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,4 MB
Operating instructions for electronic HBA handwheel with magnetic detent
Doc. no.
Version
Language
Size
Operating instructions for electronic HBA handwheel with magnetic detent
Mode d’emploi de la manivelle électronique pour pupitre portable HBA avec crantage magnétique
Betriebsanleitung Elektronisches HBA-Handrad mit magnetischer Rastung
Istruzioni di impiego volantino elettronico per HBA con autoritenuta magnetica
Mode d’emploi de la manivelle électronique pour pupitre portable HBA avec crantage magnétique
Betriebsanleitung Elektronisches HBA-Handrad mit magnetischer Rastung
Istruzioni di impiego volantino elettronico per HBA con autoritenuta magnetica
Doc. no.
2105823
Version
02-04/09
Language
Size
0,5 MB
Manual de instrucciones del volante HBA electrónico con parada magnética
Doc. no.
2105823
Version
02-04/09
Language
Size
0,2 MB
Návod k použití – elektronické ruční kolečko HBA s magnetickou aretací
Doc. no.
2105823
Version
02-04/09
Language
Size
0,1 MB
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,2 MB
CAD/eCAD
Ordering data
| Ordernumber | 095561 |
| Item designation | HBA-095561 |
| Gross weight | 0,569kg |
| Customs tariff number | 85371098 |
| ECLASS | 27-33-02-02 Mobile Panel (HMI) |
