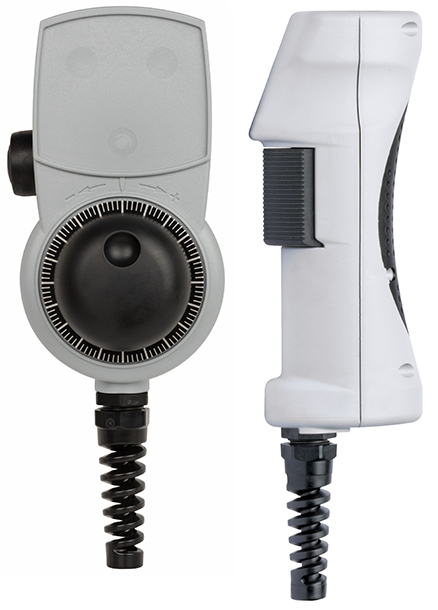

HBA/HBM/ZSM housing

Ergonomic housings in three different sizes
Safety functions can be implemented using a three-stage enabling switch and/or an EMERGENCY STOP
Machine functions can be implemented using pushbuttons, key-operated rotary switches, LED indicators, etc.
Partially pre-assembled kits or empty housings

The kit for hand-held pendant stations allows you to meet specific requirements for machine operation. Thanks to the wide range of accessories and switches, you can customize the units to your exact needs.

HBA/HBM/ZSM housing

Products (13)

No results found

084445
GEHAEUSE HBA-084445
HBA housing without handwheel - kit

Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell

084450
GEHAEUSE HBA-084450
HBA housing without handwheel - kit

Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell

086155
GEHAEUSE HBA-086155
HBA housing without handwheel - kit

Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell

095562
GEHAEUSE HBA-095562
HBA housing without handwheel - kit

Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell

083449
HBA-083449
HBA housing with handwheel - kit

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Hole for EMERGENCY STOP device (sealed with blind plug)
Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function

083495
HBA-083495
HBA housing with handwheel - kit

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Hole for EMERGENCY STOP device (sealed with blind plug)
Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function

083499
HBA-083499
HBA housing with handwheel - kit

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Hole for EMERGENCY STOP device (sealed with blind plug)
Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function

086762
HBA-086762
HBA housing with handwheel - kit

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Hole for EMERGENCY STOP device (sealed with blind plug)
Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function

095561
HBA-095561
HBA housing with handwheel - kit

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Hole for EMERGENCY STOP device (sealed with blind plug)
Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell
1 enabling switch, 3-stage, 2 NO contacts

095572
HBA-095572
HBA housing with handwheel - kit

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Hole for EMERGENCY STOP device (sealed with blind plug)
Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell
1 enabling switch, 3-stage, 2 NO contacts

095574
HBA-095574
HBA housing with handwheel - kit

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Hole for EMERGENCY STOP device (sealed with blind plug)
Cable gland for cable diameter 5-10 mm
Rubber-coated mounting magnet on the rear of the housing
6 fixing domes for printed circuit board installation in top shell
1 enabling switch, 3-stage, 2 NO contacts

106104
ZSM4200-106104
ZSM housing

3-stage function
Hole for stop command device at bottom
Cable gland included

106105
ZSM4200-106105
ZSM housing with + and – buttons

3-stage function
+ and – buttons
Hole for stop command device at bottom
Cable gland included
