HomeProductsHand-held pendant stations and handwheelsKit for hand-held pendant stationsHBA/HBM/ZSM housingGEHAEUSE HBA-086155

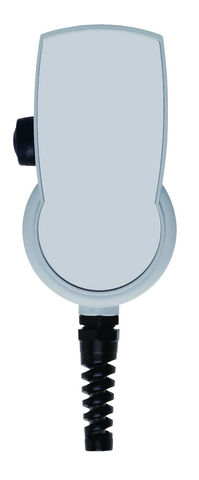

GEHAEUSE HBA-086155 (Order no. 086155)
Choose content
HBA housing without handwheel - kit
- Cable gland for cable diameter 5-10 mm
- Rubber-coated mounting magnet on the rear of the housing
- 6 fixing domes for printed circuit board installation in top shell
Description
Depending on version:
- Hole for EMERGENCY STOP device (sealed with blind plug)
- 2 pushbuttons 2-stage, 1 NO contact each, e.g. for enabling function
- 1 enabling switch, 3-stage, 2 NO contacts
Notes
- Attention: housing HBA-095562 is suitable only for EMERGENCY STOP device 106435, short design.
- Depending on version with 2 2-stage pushbuttons or 1 3-stage enabling switch.

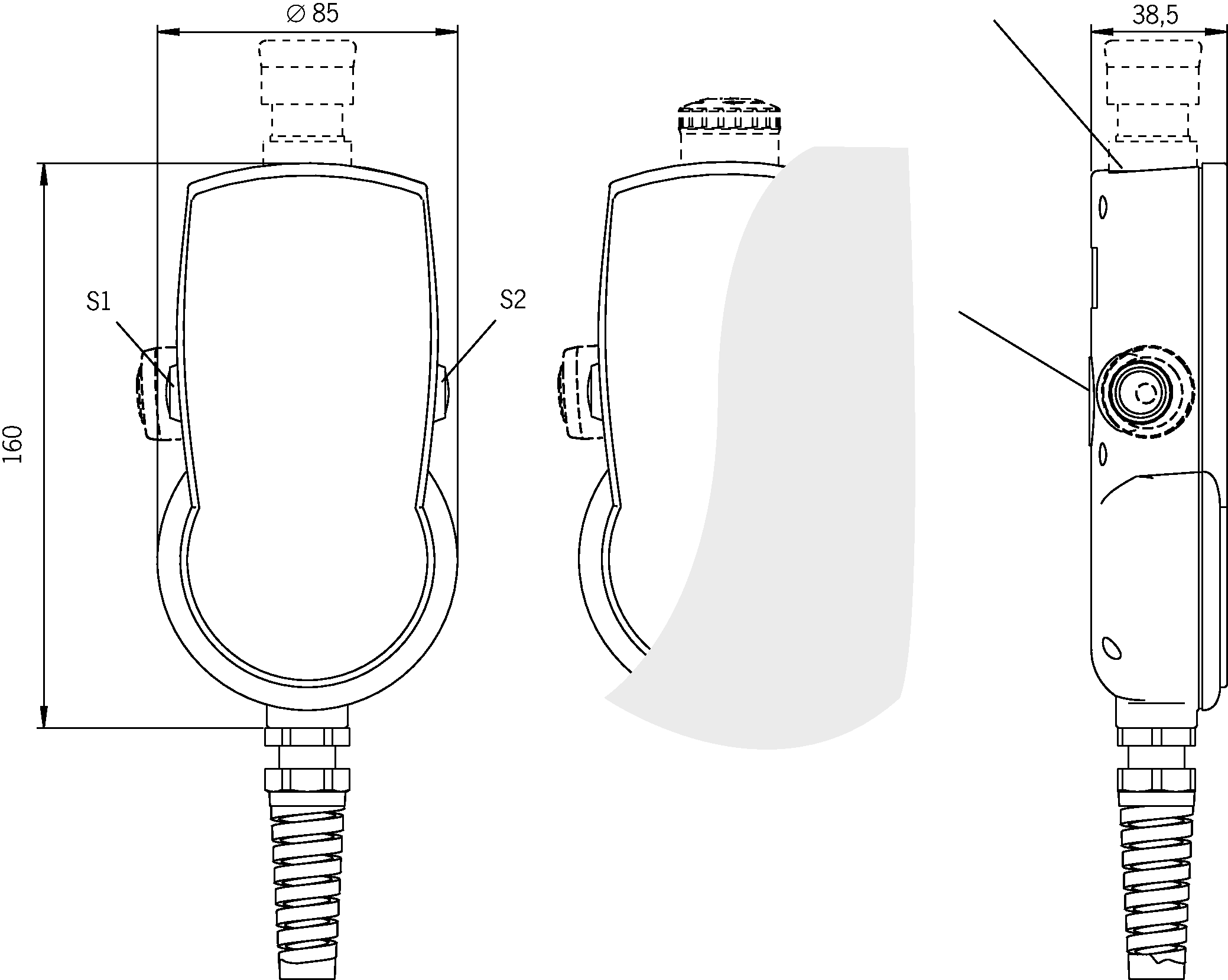

Dimensional drawings
Technical data
Operating and display elements
| Item | Color | Extras | Note slide-in label | Slide-in label | Switching element | Version | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| see data sheets | 1 NO contact each | Pushbutton, 2-stage | 2 |
Electrical connection values
| Switching voltage | |
| Pushbuttons | max. DC 50 V |
| Switching current | |
| Pushbuttons | max. 100 mA |
Mechanical values and environment
| Number of bores | 1 for emergency stop with pull-to-reset button |
| Storage temperature | -25 ... 70 °C |
| Ambient temperature | 0 ... 50 °C |
| Material | Polycarbonate |
Components included in the set
| Included accessories | Cable gland and blind plug for emergency stop hole |
Miscellaneous
| Color | Gray RAL 7040 |
Accessories
Connection material
Connecting cable for hand-held pendant stations HBA/HBM/HBL/ZSM, coiled
086721
SPIRALLEITUNG 12-ADRIG 3,9M
SPIRALLEITUNG 12-ADRIG 3,9M
- PUR cable, coiled
- Cable length 3.9 m
- With flying leads
- With 12 cores, cut-off cleanly
086722
SPIRALLEITUNG 12-ADRIG 5,4M
SPIRALLEITUNG 12-ADRIG 5,4M
- PUR cable, coiled
- Cable length 5.4 m
- With flying leads
- With 12 cores, cut-off cleanly
087408
SPIRALLEITUNG 23-ADRIG 3,9M
SPIRALLEITUNG 23-ADRIG 3,9M
- PUR cable, coiled
- Cable length 3.9 m
- With flying leads
- With 23 cores, cut-off cleanly
087409
SPIRALLEITUNG 23-ADRIG 5,4M
SPIRALLEITUNG 23-ADRIG 5,4M
- PUR cable, coiled
- Cable length 5.4 m
- With flying leads
- With 23 cores, cut-off cleanly
097190
SPIRALLEITUNG 35-ADRIG 3,9M
SPIRALLEITUNG 35-ADRIG 3,9M
- PUR cable, coiled
- Cable length 3.9 m
- With flying leads
- With 35 cores, cut-off cleanly
097191
SPIRALLEITUNG 35-ADRIG 5,4M
SPIRALLEITUNG 35-ADRIG 5,4M
- PUR cable, coiled
- Cable length 5.4 m
- With flying leads
- With 35 cores, cut-off cleanly
Connecting cable for hand-held pendant stations HBA/HBM/HBL/ZSM, straight
087381
LEITUNG 12-ADRIG 10,0M
LEITUNG 12-ADRIG 10,0M
- PUR cable, straight
- Cable length 10 m
- With flying leads
- With 12 cores, cut-off cleanly
087379
LEITUNG 12-ADRIG 3,5M
LEITUNG 12-ADRIG 3,5M
- PUR cable, straight
- Cable length 3.5 m
- With flying leads
- With 12 cores, cut-off cleanly
087380
LEITUNG 12-ADRIG 5,0M
LEITUNG 12-ADRIG 5,0M
- PUR cable, straight
- Cable length 5 m
- With flying leads
- With 12 cores, cut-off cleanly
087384
LEITUNG 23-ADRIG 10,0M
LEITUNG 23-ADRIG 10,0M
- PUR cable, straight
- Cable length 10 m
- With flying leads
- With 23 cores, cut-off cleanly
087382
LEITUNG 23-ADRIG 3,5M
LEITUNG 23-ADRIG 3,5M
- PUR cable, straight
- Cable length 3.5 m
- With flying leads
- With 23 cores, cut-off cleanly
087383
LEITUNG 23-ADRIG 5,0M
LEITUNG 23-ADRIG 5,0M
- PUR cable, straight
- Cable length 5 m
- With flying leads
- With 23 cores, cut-off cleanly
097187
LEITUNG 35-ADRIG 10,0M-097187
LEITUNG 35-ADRIG 10,0M-097187
- PUR cable, straight
- Cable length 10 m
- With flying leads
- With 35 cores, cut-off cleanly
097189
LEITUNG 35-ADRIG 3,5M
LEITUNG 35-ADRIG 3,5M
- PUR cable, straight
- Cable length 3.5 m
- With flying leads
- With 35 cores, cut-off cleanly
097188
LEITUNG 35-ADRIG 5,0M
LEITUNG 35-ADRIG 5,0M
- PUR cable, straight
- Cable length 5 m
- With flying leads
- With 35 cores, cut-off cleanly
Function expansion
Downloads
Single Documents
Instructions
Operating Instructions Hand-Held Pendant Stations HBA/HBM
Doc. no.
Version
Language
Size
Operating Instructions Hand-Held Pendant Stations HBA/HBM
Mode d’emploi Pupitres portables HBA/HBM
Betriebsanleitung Handbediengeräte HBA/HBM
Istruzioni di impiego Dispositivo di comando manuale HBA/HBM
Mode d’emploi Pupitres portables HBA/HBM
Betriebsanleitung Handbediengeräte HBA/HBM
Istruzioni di impiego Dispositivo di comando manuale HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,9 MB
Manual de instrucciones Botoneras HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,3 MB
Betriebsanleitung Handbediengeräte HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,3 MB
Návod k použití Ruční ovladače HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,4 MB
Other Documents
CAD/eCAD
Ordering data
| Ordernumber | 086155 |
| Item designation | GEHAEUSE HBA-086155 |
| Gross weight | 0,291kg |
| Customs tariff number | 85389099990 |
