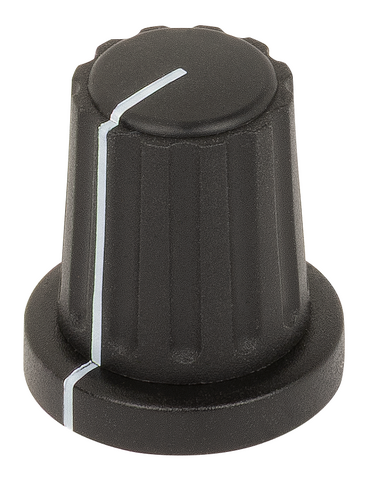

DREHKNOPF SCHWARZ F. ACHSE 3,175MM (Order no. 097141)
Choose content
Rotary knob for selector switch Gray code or 1 of X
Description

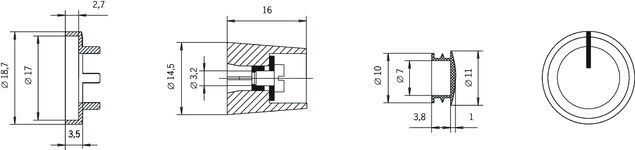

Dimensional drawings
Technical data
Mechanical values and environment
| Dimensions | |
| Knob diameter | 14.5 mm (Axle diameter 3.175 mm) |
| Mounting type | Collet |
| Storage temperature | -25 ... 70 °C |
Miscellaneous
| Color | black/ mat with marking |
Downloads
Sales documents
Commandes d’Assentiment ZS
Doc. no.
Version
Language
Size
Commandes d’Assentiment ZS
Doc. no.
097367
Version
09-02/21
Language
Size
10,2 MB
Enabling switches ZS
Doc. no.
Version
Language
Size
Enabling switches ZS
Doc. no.
095690
Version
09-02/21
Language
Size
10,1 MB
Zustimmtaster ZS
Doc. no.
Version
Language
Size
Zustimmtaster ZS
Doc. no.
095689
Version
09-02/21
Language
Size
10,2 MB
CAD/eCAD
Ordering data
| Ordernumber | 097141 |
| Item designation | DREHKNOPF SCHWARZ F. ACHSE 3,175MM |
| Gross weight | 0,009kg |
| Customs tariff number | 85389099990 |
