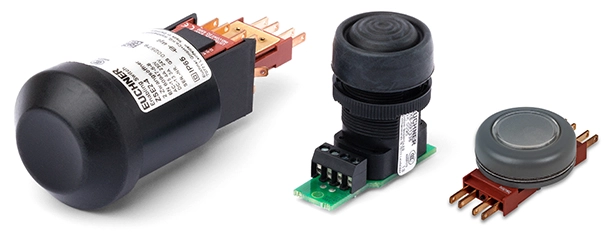

Built-in enabling switches ZSG, ZSE and ZXE

Features

  • 2/3-stage function
  • Dual-channel version
  • Optionally with 22.5 mm, 30.5 mm or 34.4 mm installation dimension
  • Suitable, for example, for installation in the hand-held pendant station HBA, HBM or HBL

2-stage function

Enabling function is active in the second stage (pressed position). When the button is released, the enabling is removed (see function sequence).

3-stage function

Enabling function is active only in the second stage (middle position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

Built-in enabling switches ZSG, ZSE and ZXE

You will find further information in our product catalog.

Product finder

Quick search
Number of positively driven contacts
Number of NO contacts
Degree of protection
