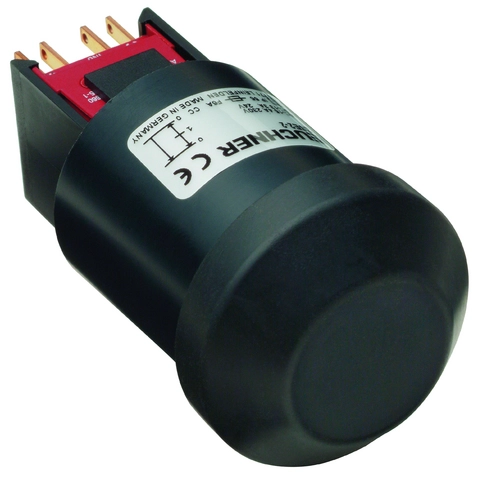

ZSE2-1 (Order no. 052448)

ZSE, 3-stage

  • 3-stage function
  • 30.5 mm installation dimension
  • Suitable for installation in hand-held pendant stations HBL or housing G2 or G3, for example
ZSE2-1 (Order no. 052448)

Description

3-stage function

Enabling function is active only in the second stage (center position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

Switching element

111

1NO + 1NC + 1NC

Dimension drawing
Dimension drawing
Wiring diagram 111
Wiring diagram 111
Travel diagram
Travel diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
closed, enabling
closed
open

Technical data

Approvals

CCC2020980305002418_CQC2009010305380679_2024EAC_RU C-DE.MO05.B.00972/20

Electrical connection values

rated conditional short-circuit current 100 A
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-15 4 A 230 V
DC-13 3 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Switching voltage
at 10 mA min. 12 V
Switching current
at 24V min. 1 mA
Degree of contamination (external, according to EN 60947-1)
Industry 3

Mechanical values and environment

Connection type Tab connector 2.8 x 0.8 IEC 760
Number NC contacts 1
Number of NO contacts 1
Number of positively driven contacts 1
Installation orientation any
Mechanical life
Position 1-2-1 0.1 x 10⁶
Position 1-2-3-1 0.1 x 10⁶
Mounting type IEC 947-5-1 D30 ((bore 30.5))
Switching principle Slow-action contact element
Degree of protection
IP65 (on the front)
IP00 (Connections)
Ambient temperature -5 ... +60 °C
Material
Housing Plastic, color black
Cap Elastomer, low PAH, black

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Enabling switch
B10D 0.5 x 10⁶

Miscellaneous

in compliance with 60947-5-8

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 052448
Item designation ZSE2-1
Gross weight 0,098kg
Customs tariff number 85365019000
ECLASS 27-37-12-38 Agreement switch
