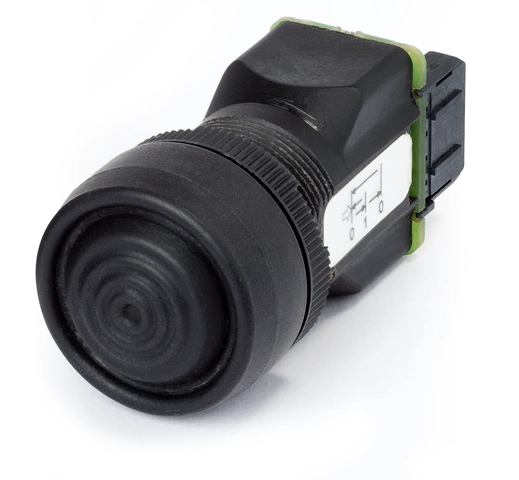

ZXE-111276 (Order no. 111276)

ZXE, 3-stage, with click

  • 3-stage function
  • Dual-channel version
  • 22.5 mm installation dimension
  • Snap-action switching contact
  • With click
  • Tab connectors
ZXE-111276 (Order no. 111276)

Description

Notes

  • Enabling switch ZXE-111276 for use in housing HBA/HBM
  • A click sounds during the change from stage 1 to stage 2 and during the return from stage 2 to stage 1.

Switching element

2202

2NO/NC 1) From position 1 to position 2 –>NO contact; from position 2 to position 3 –>NC contact.

3-stage function

Enabling function is active only in the second stage (center position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

Dimension drawing
Dimension drawing
Wiring diagram 2202
Wiring diagram 2202
Travel diagram
Travel diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
closed, enabling
closed
open

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20

Electrical connection values

Fuse
external 0.1 A medium slow-blow
rated conditional short-circuit current 100 A
Rated insulation voltage Ui 30 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
DC-13 0.1 A 24 V
Breaking capacity max. 0.25 W
Switching current 5 ... 100 mA
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Connection type Plug connector, 4-pin
Number of switching elements 2 Normally open contact
Rated actuating force according to EN 60947-5-8 100
Actuating force max. 50 N (from stage 2 to 3)
Installation orientation any
Mechanical life
Position 1-2-1 0.1 x 10⁶
Position 1-2-3-1 0.1 x 10⁶
Degree of protection
IP00 (Connections)
IP65 (on the front)
Ambient temperature -5 ... +60 °C
Material
Housing Polyamide, color black
Protective cap CR, color black

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10D 0.75 x 10⁶

Miscellaneous

in compliance with DIN EN 60947-5-8
Color
Protective cap black
Housing black
Additional feature Click

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,4 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 111276
Item designation ZXE-111276
Gross weight 0,076kg
Customs tariff number 85365019000
ECLASS 27-37-12-38 Agreement switch
