RPS-M-E-3131SC175M (Order no. 114981)

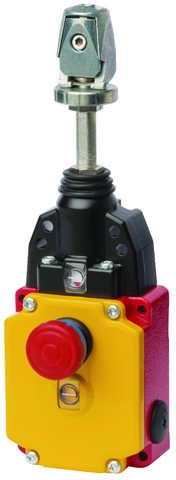

Rope pull switch with pull-to-reset button for emergency stop device, clamping head, with pre-failure monitoring

  • Metal housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • 3 cable entries M20 x 1.5
  • Switching elements with 4 switching contacts
  • Pre-failure monitoring for the rope tension
RPS-M-E-3131SC175M (Order no. 114981)

Description

Switching elements

3131

Slow-action switching contact 2 NC + 2 NO

Dimension drawing
Dimension drawing
Wiring diagram 3131
Wiring diagram 3131
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20CQC2019010305204824DGUV_ET 20035_ET 20036CSA_1708516_

Electrical connection values

Connection cross section 0.5 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 0.27A 250V / 0.55A 125V
AC-15 3A 240V / 6A 120V
Short circuit protection according to IEC 60269-1 6A gG
Switching current
at 24V min. 10 mA
thermal rated current Ith 10 A

Mechanical values and environment

Connection type
3 x M20 x 1.5
Number of NO contacts 2
Number of positively driven contacts 2
Actuation frequency max. 1200 1/h
Actuating force 175 N
Installation orientation any
Mechanical life 0.1 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP67
Rope diameter 2 ... 5 mm
Ambient temperature -30 ... +80 °C
Material
Housing Die-cast aluminum

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.2x10620 y


Miscellaneous

Additional feature
Emergency stop function
Pre-failure monitoring

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 7,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 114981
Item designation RPS-M-E-3131SC175M
Gross weight 1,069kg
Customs tariff number 85365019000
ECLASS 27-37-12-01 Emergency stop pull cord switch
