AY-LED-024-GR/RD-M-171344 (Order no. 171344)

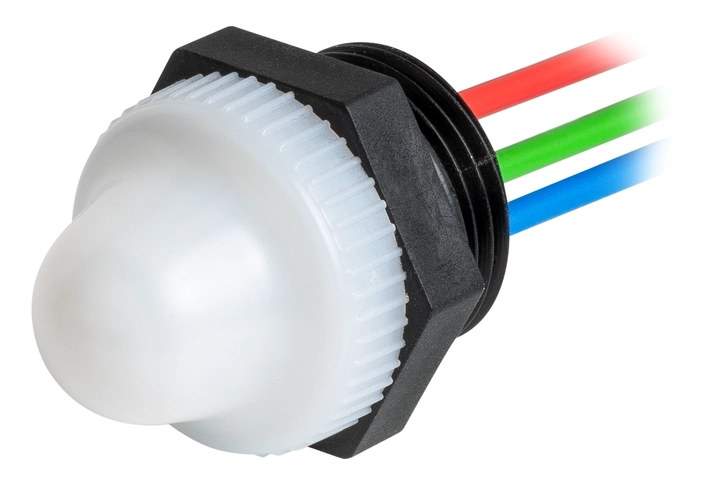

Built-in LED, light shines to front

  • Color: milky
AY-LED-024-GR/RD-M-171344 (Order no. 171344)

Description

The built-in LED is suitable for direct installation in one of the M20 x 1.5 threads of the three cable entries in the rope pull switch RPS. The built-in LED indicates to the operator whether the switch is actuated or not. The switching element can be wired individually. Operating voltage DC 24 V.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Red
2Green
3Blue
4Conductor cross-section 0.5 mm²
5Cable end sleeve
6stripped

Technical data

Electrical connection values

Operating voltage
LED 24 V

Mechanical values and environment

Connection type M20x1.5
Degree of protection IP65/IP67 (in the screwed tight state)
Material Plastic

Miscellaneous

Additional feature LED green/red

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 171344
Item designation AY-LED-024-GR/RD-M-171344
Gross weight 0,02kg
Customs tariff number 85414100000
