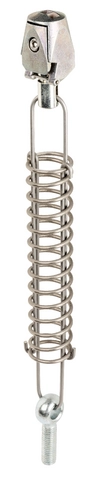

Tensioner spring for rope pull switches
- Tensioner spring for tensile force 110 N / 175 N
Description
Dimensional drawings
| 1 | not tensioned |
| 2 | tensioned |
| 3 | The plastic sheath must be removed in the clamping range. |
Technical data
Mechanical values and environment
| Spring rate | 2.1 N/mm |
| maximum spring force | 218 N |
| Mounting type | |
| Mounting thread | M12 |
| Rope diameter | 2 ... 5 mm |
| Ambient temperature | -25 ... +70 °C |
| Material | |
| Spring | Stainless steel |
| Rope clamp | Die-cast zinc / steel, galvanized |
| Eyebolt | Galvanized steel |
Miscellaneous
| Additional feature | Quick-action clamping device |
