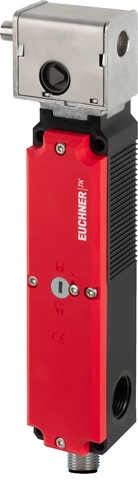

TK1-4131CB024SM8 (Order no. 115310)

Safety switch TK, locking pin left, plug connector M12, closed-circuit current principle

  • Mounting on plastic housing TP with actuating head and locking pin made of metal
  • High locking forces of 5000 N
  • Auxiliary release on the switch head
  • Actuating element for contact separation on the front
  • Plug connector M12
TK1-4131CB024SM8 (Order no. 115310)

Description

Solenoid operating voltage

  • AC/DC 24 V +10%, -15%

Guard locking type

TK1

Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid.

Switching element

4131

Slow-action switching contact 2 NC + 2 NO

Auxiliary release

This is used for releasing the guard locking with the aid of a tool.

Contact separation

When actuated, positively driven contacts 21-22 and 41-42 are opened. Guard locking is not fully unlocked. The auxiliary release must be sealed to prevent tampering (e.g. with sealing lacquer).

Switching function
Switching function
Dimension drawing
Dimension drawing

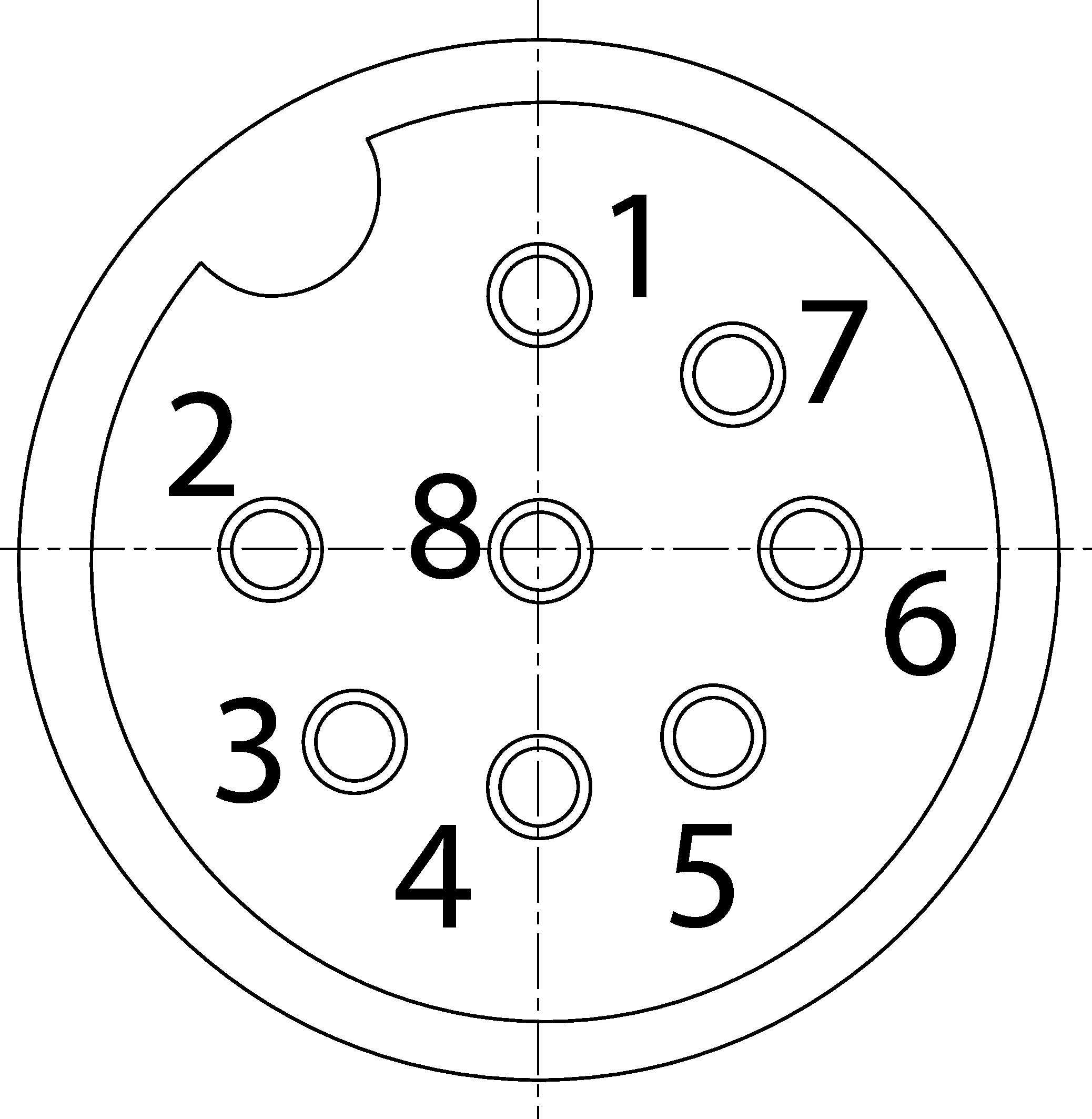

Connector assignment
Connector assignment

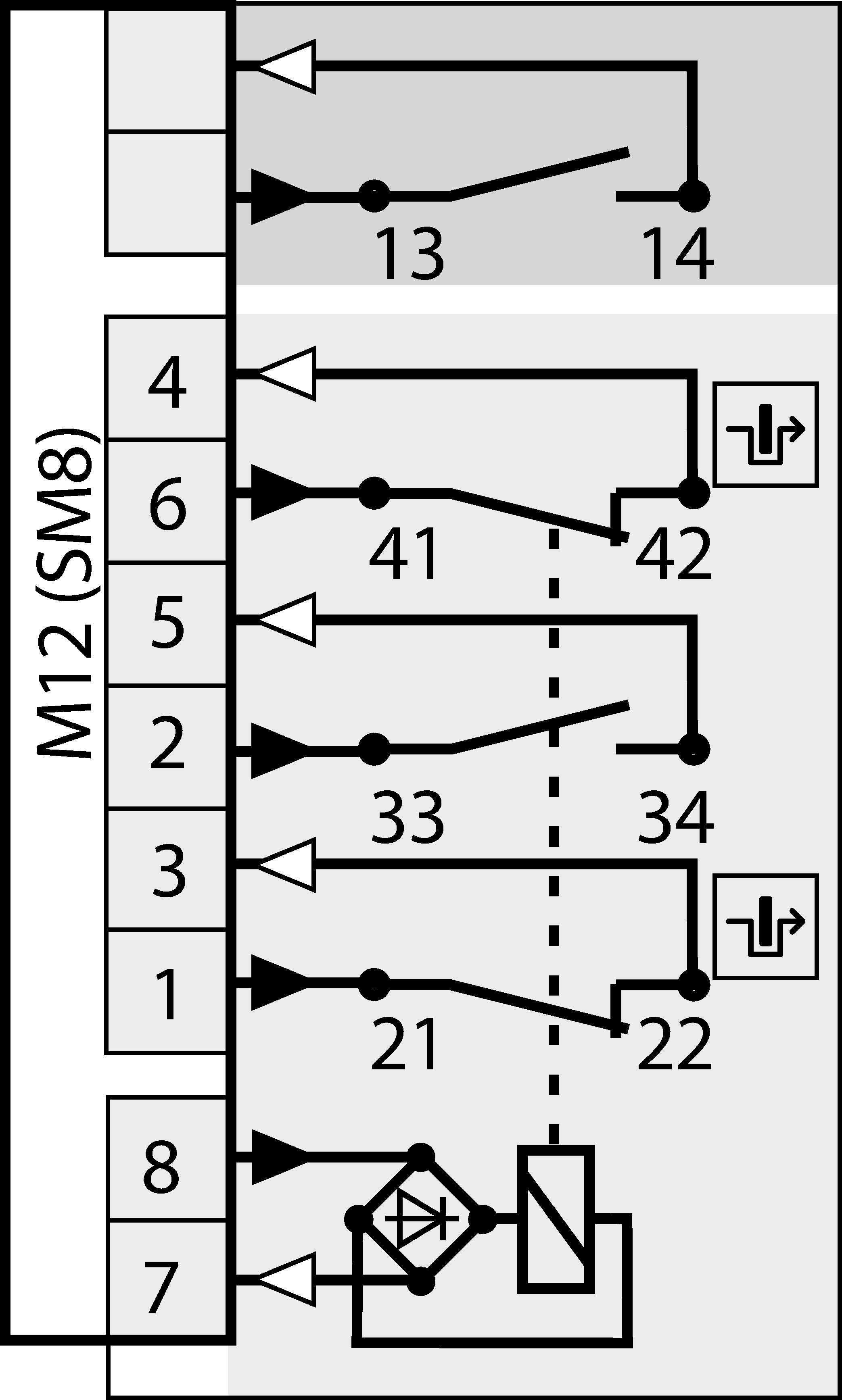

Wiring diagram 4131
Wiring diagram 4131
Electromechanical safety switches in use

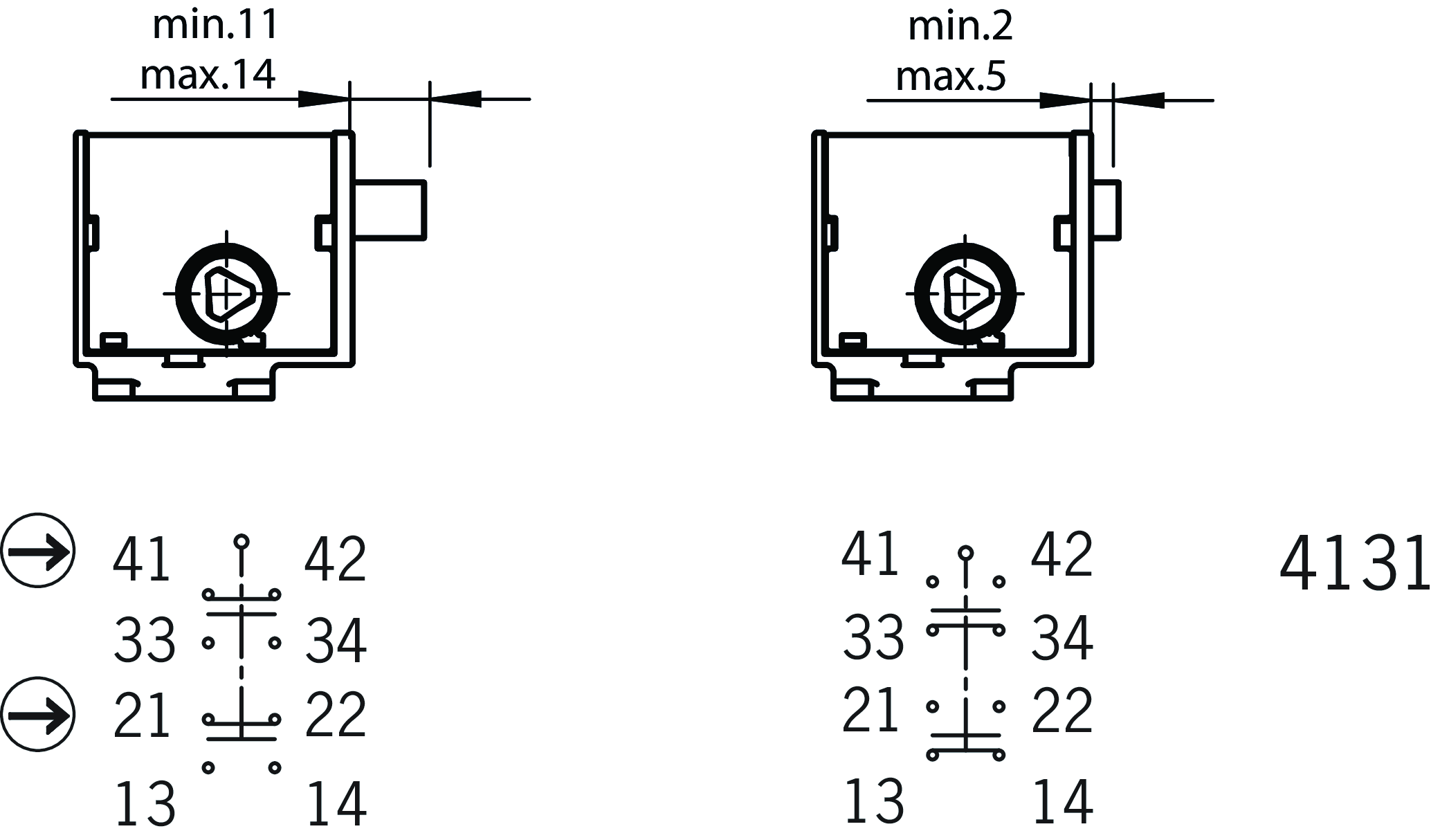

Functional drawings

Functional drawings

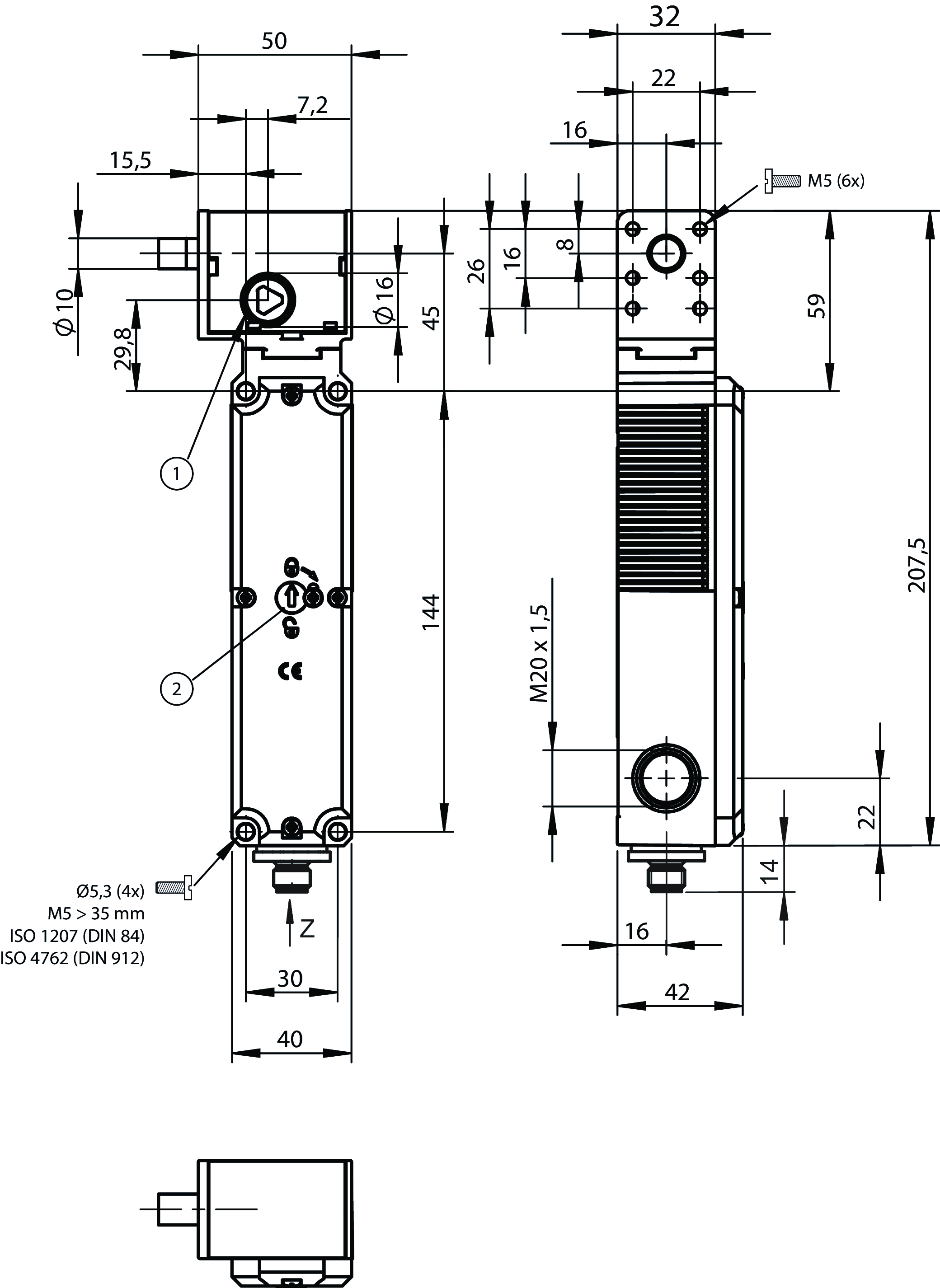

Dimensional drawings

Dimensional drawings
1Auxiliary release on both sides
2Contact separation
Plug not aligned

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_2/4CCC_2020980305000541_CQC2008010305306207

Electrical connection values

Power consumption 8 W
Rated insulation voltage Ui 30 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
DC-13 1 A 24 V
AC-15 1 A 24 V
Short circuit protection according to IEC 60269-1 1A gG
Solenoid operating voltage
AC/DC 24 V -15% ... +10%
Solenoid duty cycle 100 %
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 1 A

Mechanical values and environment

Approach direction C
Connection type
1 x Plug connector M12 (8-pin)
Number of guard lock monitoring NO contacts 1
Number of guard lock monitoring positively driven contacts 2
Actuation frequency max. 1200 1/h
Installation orientation any
Mechanical life 1 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... +55 °C
Material
Contact Silver alloy, gold flashed
Housing Reinforced thermoplastic
Locking force Fmax 5000 N
Guard locking principle Closed-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of guard locking2x10620 y
Important! Values valid at DC-13 100 mA/24V


PLMaximum SILCategoryMission time
Control of guard lockingDepending on external control of guard locking20 y


Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 115310
Item designation TK1-4131CB024SM8
Gross weight 0,623kg
Customs tariff number 85365019000
ECLASS 27-27-26-03 Safety switch with guard control
