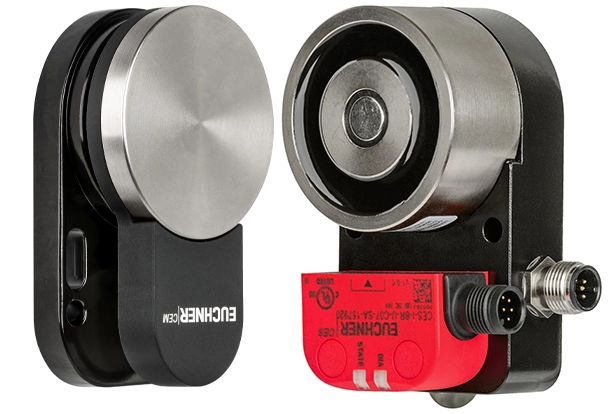

Variable magnetic guard locking CEM-C60

Your Benefits

• Electromagnetic solenoid guard locking with 650 N for process protection
• Versatile combination options with a wide selection of switch variants
• Functional expansion for safety switches in the CES-C04 / CES-C07 series
• Transponder coding provides high protection against tampering
• Highest safety level PLe / category 4 for reliable detection of the door position
• Yellow LED to indicate voltage at the magnet
• Nickel-plated solenoid surface with high corrosion resistance

Design and Function

As a complement to the proven CEM process interlocks, EUCHNER offers the CEM-C60, a new, modular concept. The modular design gives you greater flexibility in selecting the safety switch and even more freedom in choosing a suitable connection variant.
The CEM-C60 initially consists solely of a guard locking solenoid. You select the corresponding safety switch. The desired switch is mounted on the CEM-C60 and is used to reliably detect the door position. This allows you to easily convert the CES-C04 or CES-C07 safety switch into an interlock for process protection.
The guard locking solenoid prevents the safety door from opening unintentionally. Even when the solenoid is de-energized, a built-in permanent magnet (if present) holds the door in the closed position with an adhesive force of 30 N. An actuator serves as the counterpart to the guard locking solenoid and safety switch.
It consists of an anchor plate with a transponder. The spring-mounted actuator can be deflected up to an angle of ±4°. This allows it to automatically adapt to the surface of the CEM guard locking solenoid when the door closes—even if the solenoid has become slightly misaligned over time.
The CEM-C60 is mounting compatible with the CEM read heads that have been established on the market for many years.
