CES-A-LMN-SC (Order no. 077790)

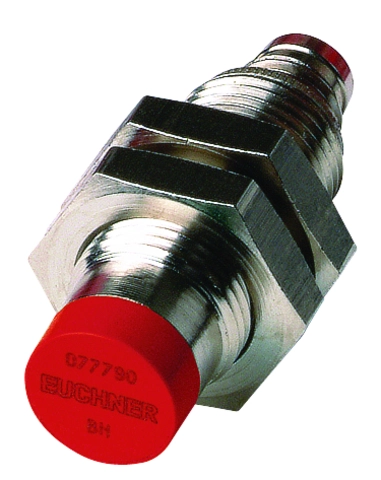

Read head CES-A-LMN-SC, M8 plug connector

  • Cylindrical design M12
  • M8 plug connector
CES-A-LMN-SC (Order no. 077790)

Description

Combination options

Suitable for connection to a CES-AZ evaluation unit or CES-FD field unit

Attention: The actuating range may vary depending on the substrate material and installation situation.

Important: Actuators must be ordered separately!

Typical actuating range

<p>Typical actuating range</p>

A minimum distance of s = 1.2 mm must be maintained.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings
1Active face
1)Metal-free zone
2in the inserted state
mCenter offset
sRead distance

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_3/1

Electrical connection values

Power supply via evaluation unit

Mechanical values and environment

Connection type M8 plug connector, 3-pin
Installation orientation any
Cable length
maximum allowed max. 15 m
Degree of protection IP67/IP69/IP69K
Ambient pressure max. 10 bar (only on active face in installed state)
Ambient temperature -25 ... +85 °C
Material
Cap Plastic PBT GF20
Housing sleeve CuZn, nickel plated
Method of operation inductive

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 15,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 077790
Item designation CES-A-LMN-SC
Gross weight 0,035kg
Customs tariff number 85389099990
ECLASS 27-27-24-03 Safety-related transponder switch
