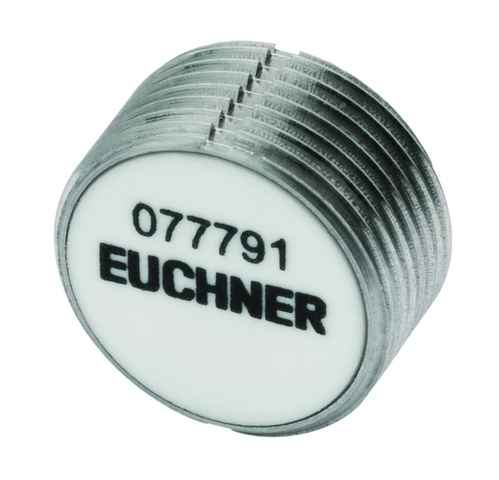

CES-A-BMB (Order no. 077791)

Actuator CES-A-BMB

  • Cylindrical design M12 x 0.75
CES-A-BMB (Order no. 077791)

Description

Insertion tool

With the aid of the insertion tool, the actuator CES-A-BMB (cylindrical design) can be screwed into a prepared M12 x 0.75 thread in the safety door.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

DGUV_CES-A-AEA_UEA_ET 25021_ET 25022c_UL_us_E155795_3/1

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Storage temperature -25 ... 85 °C
Mounting type screws, flush in steel
Degree of protection IP67/IP69/IP69K
Ambient pressure max. 10 bar (applies only if the pressure acts on the actuator from all sides)
Ambient temperature -25 ... 85 °C
Material
Sleeve stainless steel
Active face Ceramic (AL2 O3)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,0 MB)

Single Documents

Other Documents

ePlan macros

Ordering data

Ordernumber 077791
Item designation CES-A-BMB
Gross weight 0,005kg
Customs tariff number 85389099990
ECLASS 11.0 27-27-24-04 Actuator for safety-related proximity switch
