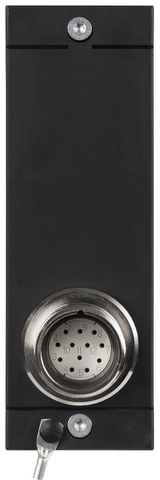

MSM-1-R-DA-00N-A7-137597 (Order no. 137597)

Submodule MSM-1-R... (M23 plug connector for enabling switch)

  • Function expansion for modules MGB2 and MCM
  • Connection type: R
  • 1 plug connector M23 for connecting an enabling switch
MSM-1-R-DA-00N-A7-137597 (Order no. 137597)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
MGB2 Modular: at a glance
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
Pos 3M23 built-in connector
Zmarks orientation of item 1

Dimensional drawings

Dimensional drawings

Technical data

Operating and display elements

ItemColorExtrasVersionNote slide-in labelSwitching elementSlide-in labelNumberDesignation1LED
3Connection M23x1 for enabling switch

Electrical connection values

Current consumption max. 48 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic, brass, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Evaluating safety signalsPL e-9.06x10-10420 y
Only applies to externally connected safety functions such as enabling switches, safety switches, etc.


Miscellaneous

Submodulbreite 1
Software ID (SW ID) 137597

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 137597
Item designation MSM-1-R-DA-00N-A7-137597
Gross weight 0,09kg
Customs tariff number 85389099990
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
