ZSM, + and - buttons, plug connector RC12
- 3-stage function
- + and – buttons
- Plug connector
- Straight connecting cable, 13 m
Description

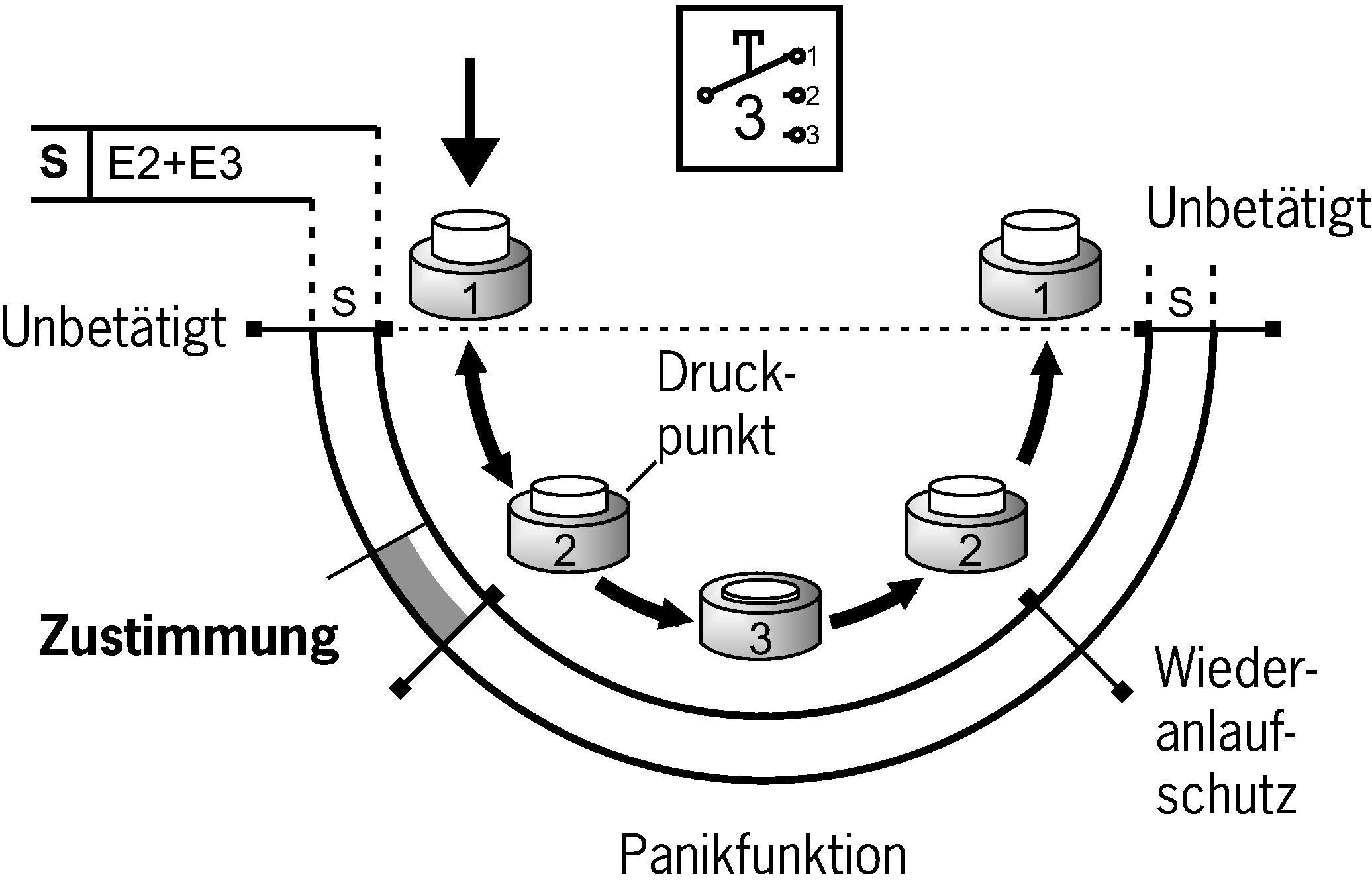

3-stage function
Enabling function is active only in the second stage (middle position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).
+ and – buttons
These buttons can be configured individually. For example for moving axes in the positive or negative direction.
Cable
The high-quality connecting cables are available in a straight version.

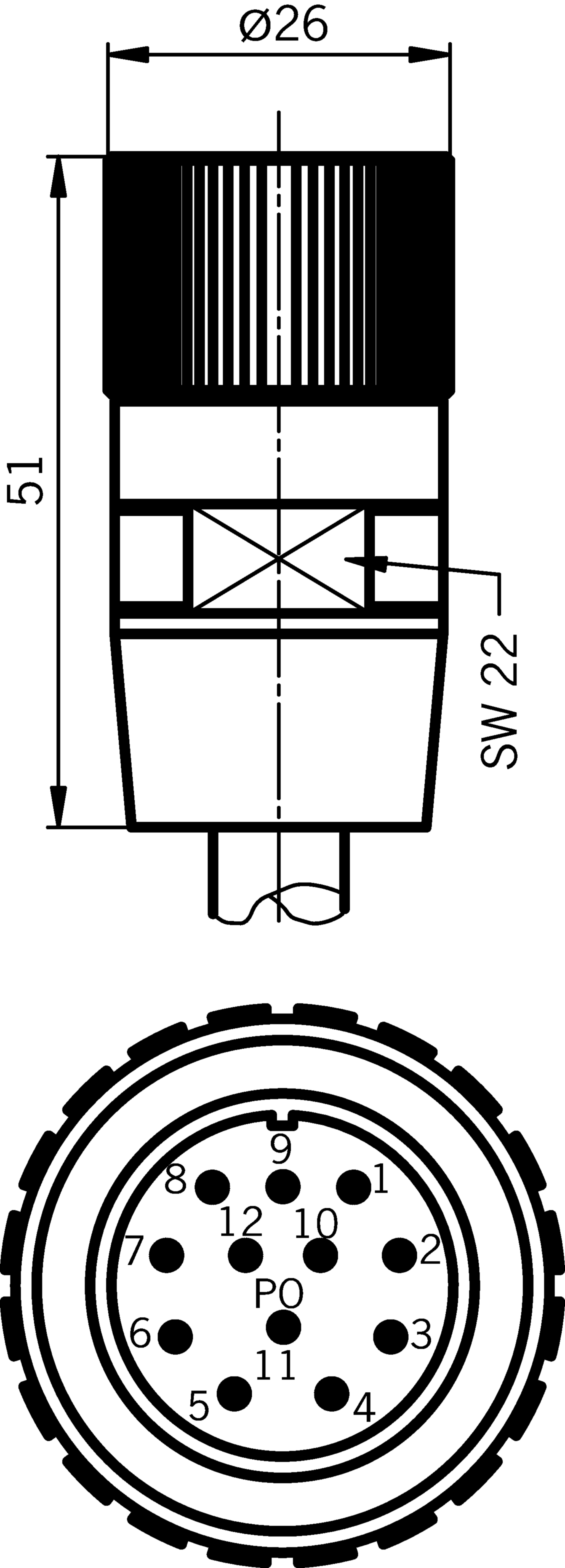

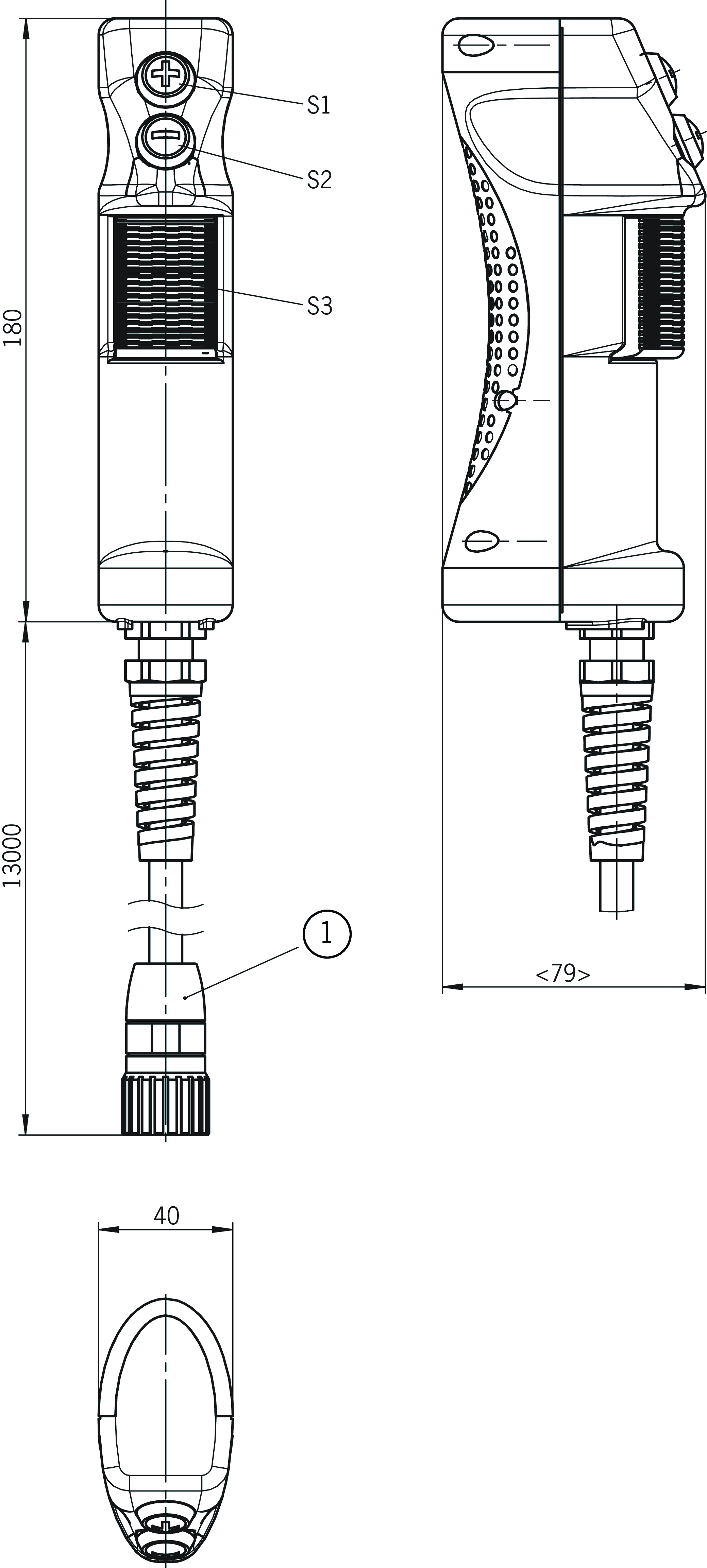

Dimension drawing
| 1 | 12-pin plug connector |
Dimension drawing

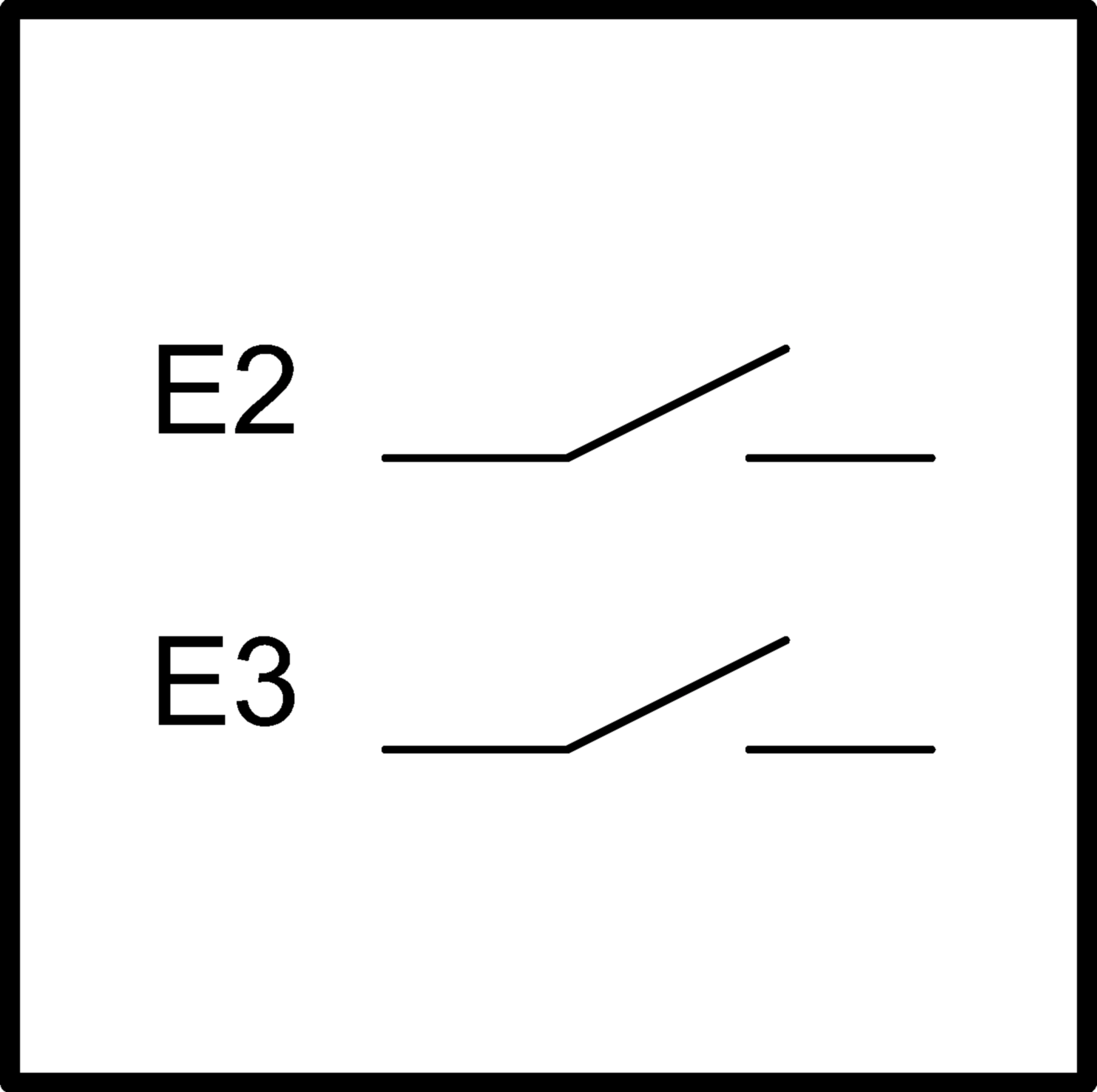

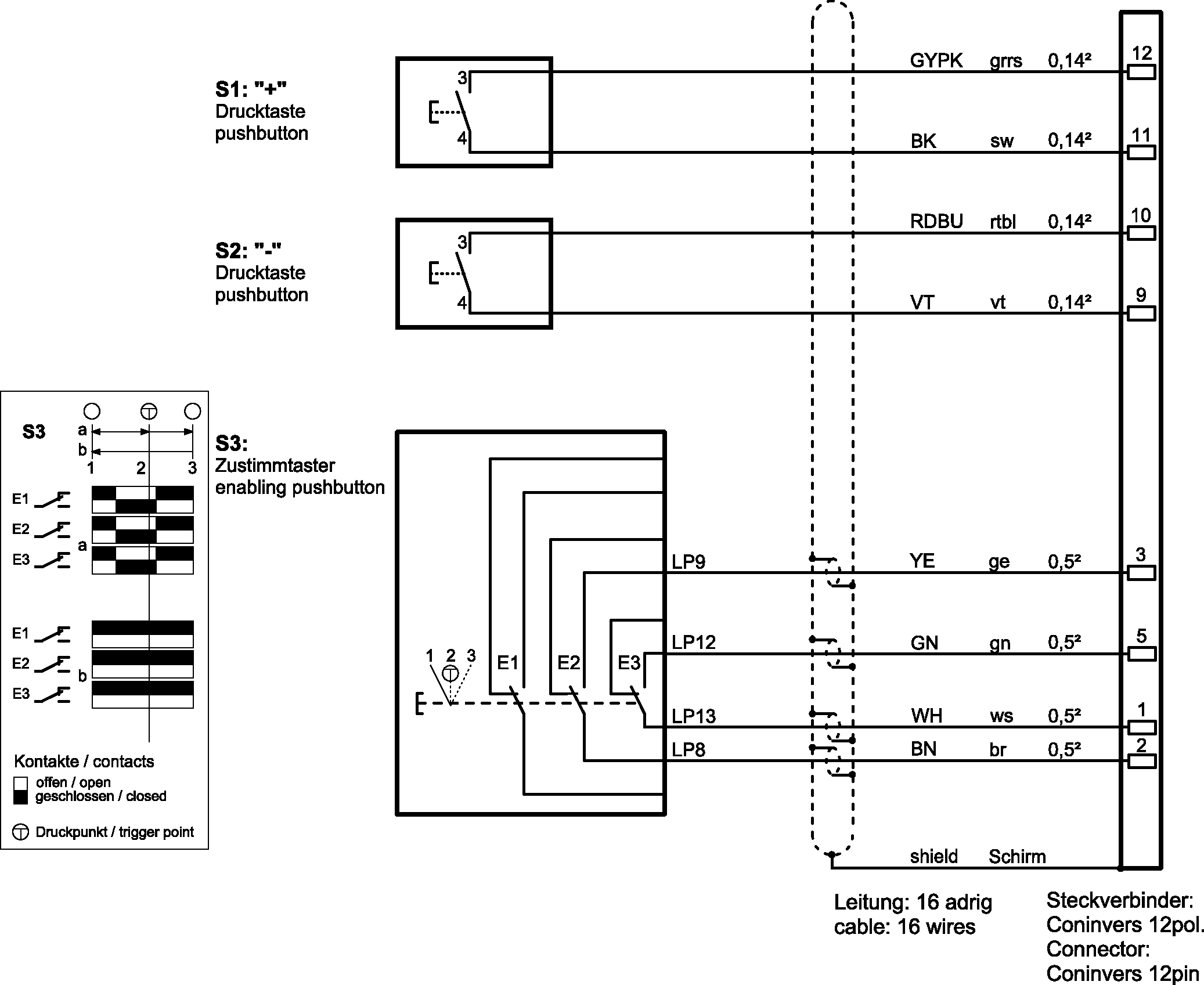

Wiring diagram
Wiring diagram
Wiring diagram
Technical data
Approvals
Mechanical values and environment
| Material | PA, CR, TPE (PAK arm) |
| Weight | |
| Net | 3 kg |
| Ambient temperature | -5 ... 60 °C |
| Degree of protection | IP54 |
| Mechanical life | 1 x 106 |
| Switching principle | Snap-action contact element |
| Number of changeover contacts | 3 (Connection as per block diagram) |
| Connection | Plug connector number of pins 12 |
| Cable length | |
| straight | 13 m |
Electrical connection ratings
| Rated conditional short-circuit current | 100 A |
| Utilization category acc. to EN 60947-5-1 | |
| DC-13 | 24V 0.3A (For additional devices) |
| 24V 1A (For enabling switch S4) | |
| Short circuit protection according to IEC 60269-1 | 2A gG (In case of operating voltages other than 24 V, the short circuit protection must be dimensioned accordingly and checked.) |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connecting cable | 8x0.5mm² + 8x0.14mm² (4x0.5mm² screened + 4x0.5mm² unscreened + 8x0.14mm² unscreened. Outer screen over everything.) |
| Switching characteristics | 3-stage enabling switch |
Controls and indicators
| Control/indicator | |
| Version | Pushbutton + |
| Slide-in label | |
| Special features | |
| Color | |
| Switching element | |
| Control/indicator | |
| Version | Pushbutton - |
| Slide-in label | |
| Special features | |
| Color | |
| Switching element |
Other
| In compliance with | 60947-5-8 |
Reliability values according to EN ISO 13849-1
| Enabling switch | |
| B10D | 0,1 x 106 |
Accessories
Downloads
Instructions
Operating Instructions Enabling Switch ZSM
Doc. no.
Version
Language
Size
Betriebsanleitung Zustimmtaster ZSM
Operating Instructions Enabling Switch ZSM
Manual de instrucciones Pulsadores de validación ZSM
Mode d’emploi Commande d’assentiment ZSM
Operating Instructions Enabling Switch ZSM
Manual de instrucciones Pulsadores de validación ZSM
Mode d’emploi Commande d’assentiment ZSM
Doc. no.
2098540
Version
06-06/19
Language
Size
1,2 MB
Manual de instruções Chave enable ZSM
Doc. no.
2098540
Version
06-06/19
Language
Size
0,3 MB
Istruzioni di impiego Pulsanti di consenso ZSM
Doc. no.
2098540
Version
06-06/19
Language
Size
0,3 MB
Návod k použití Potvrzovací tlačítka ZSM
Doc. no.
2098540
Version
06-06/19
Language
Size
0,8 MB
Instrucțiuni de utilizare Butoane de activare ZSM
Doc. no.
2098540
Version
06-06/19
Language
Size
0,8 MB
