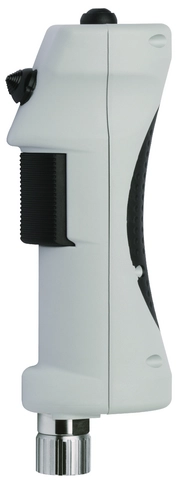

ZSM2300-106374 (Order no. 106374)

ZSM, pushbuttons, mini joystick, plug connector RC17

  • 3-stage function
  • Pushbuttons
  • Mini joystick
  • Plug connector
ZSM2300-106374 (Order no. 106374)

Description

3-stage function

Enabling function is active only in the second stage (center position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

Pushbuttons

Additional functions can be run directly at the enabling switch using the pushbuttons.

One-touch function (joystick)

The four contacts are connected to a common pin. This permits a one-touch function irrespective of the actuating direction.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Switching function
Switching function
Function sequence
Function sequence
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_4/1

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSwitching elementVersionNote slide-in labelSlide-in label
1Mini joystick
black1Pushbutton

Electrical connection values

rated conditional short-circuit current 100 A
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 0.5 kV
Utilization category
DC-13 30 V 0.1 A (For enabling switch, caution: outputs must be protected with a free-wheeling diode in case of inductive loads)
DC-13 24 V 0.3 A (For additional controls)
Short circuit protection according to IEC 60269-1 2A gG (In case of operating voltages other than 24 V, the short circuit protection must be dimensioned accordingly and checked.)
Switching characteristics 3-stage enabling switch
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Connection type Plug connector number of pins 17
Number of changeover contacts 3 (Connection as per block diagram)
Mechanical life 1 x 10⁶
Switching principle Snap-action contact element
Degree of protection IP54
Ambient temperature -5 ... +60 °C
Material PA, CR, TPE (Low PAH)

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Enabling switch
B10D 0.1 x 10⁶

Miscellaneous

in compliance with 60947-5-8

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 106374
Item designation ZSM2300-106374
Gross weight 0,51kg
Customs tariff number 85371098
ECLASS 27-37-12-38 Agreement switch
