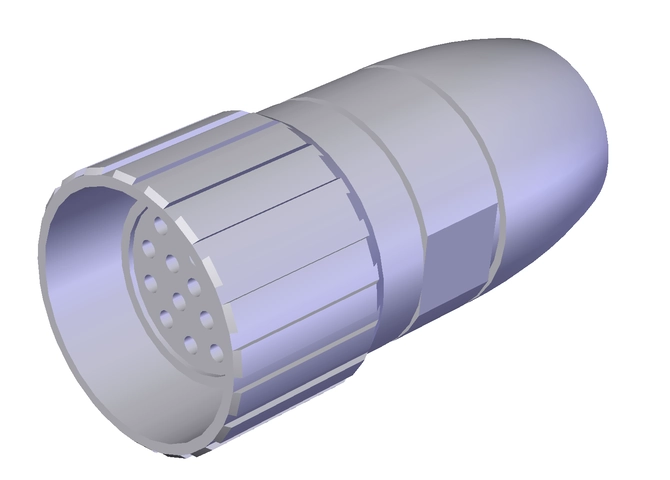

STECKVERBINDER 17POL RC-17P1N8A80CP (Order no. 096481)

Plug connector RC17 for connection to enabling switches, for example

STECKVERBINDER 17POL RC-17P1N8A80CP (Order no. 096481)

Description

Male plug RC17

For connection, e.g. to enabling switches.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Electrical connection values

Connection cross section 0.14 ... 0.56 mm²
Rated voltage 150 V
Rated current I 8000 mA (per contact at 25 °C)
Screen connection via housing connection

Mechanical values and environment

Connection type
enclosed Crimp contacts
Plug connector designation RC17
Cable outlet straight
Cable diameter max. 10 mm
Number of pins 17
Degree of protection IP67
Plug lock Screw connection
Ambient temperature -20 ... +125 °C
Material
Plug housing Metal

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 096481
Item designation STECKVERBINDER 17POL RC-17P1N8A80CP
Gross weight 0,08kg
Customs tariff number 85389099990
