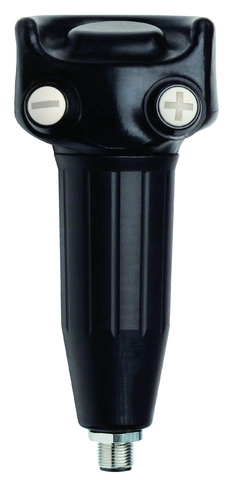

ZSB2B7CAS1 (Order no. 096703)

ZSB, housing G1, 3-stage, +/- buttons, AS-Interface

  • Housing G1
  • 3-stage function
  • Positively driven contacts
  • Dual-channel version
  • 2 pushbuttons (+ and -)
ZSB2B7CAS1 (Order no. 096703)

Description

AS-Interface inputs

D0, D1

Normally open contact

D2, D3

Normally open contact

3-stage function

Enabling function is active only in the second stage (center position, actuating point). Enabling is canceled when the pushbutton is released or pushed all the way down (panic function).

Dimension drawing
Dimension drawing
Connector assignment
Connector assignment
Travel diagram
Travel diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples
View of connection side

Shift travel diagrams

Shift travel diagrams
closed, enabling
closed
open

Technical data

Approvals

CCC2020980305002418_CQC2009010305380679_2024EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_4/2Asi Interface_56202_

Electrical connection values

ASI operating current max. 45 mA
ASI data in
according to AS-i Safety at Work D0, D1, D2, D3 (NO contact E1 on D0, D1 NO contact E2 on D2, D3)
ASI parameters in
Minus button P 1
Plus button P 0
ASI slave type
according to ASI specification 3.0 EA code: 7
according to ASI specification 3.0 ID code: B
ASI voltage 22.5 ... 30 ... 31.6 V
Switching characteristics 3-stage enabling switch
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Connection type M12 plug connector, 4-pin
Number of NO contacts 2
Mechanical life
Position 1-2-3-1 0.1 x 10⁶
Position 1-2-1 0.1 x 10⁶
Switching principle Slow-action contact element
Degree of protection
Mating connector inserted and screwed tight IP65
Ambient temperature -5 ... +50 °C
Material Plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Enabling switch
B10D 0.5 x 10⁶

Miscellaneous

in compliance with 60947-5-8
Additional feature 2 pushbuttons (+ and -)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 096703
Item designation ZSB2B7CAS1
Gross weight 0,223kg
Customs tariff number 85371098
ECLASS 27-37-12-38 Agreement switch
