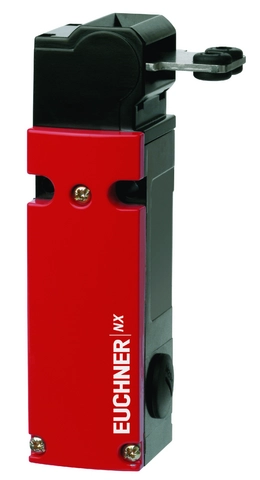

NX1-2131AL024-M (Order no. 091682)

Safety switch NX, cable entry M20 x 1.5

  • 3x cable entry M20 x 1.5
  • 3 pos. driven contact
  • 1 NO contacts
  • LED indicator
NX1-2131AL024-M (Order no. 091682)

Description

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Switching element

2131H

Slow-action switching contact 3 positively driven contacts + 1 NO contact

LED indicator

The switch has two freely assignable LED indicators (red and green).

Accessories required

Actuator is not included.

Switching function
Switching function
Dimension drawing
Dimension drawing
Wiring diagram 2131
Wiring diagram 2131
Electromechanical safety switches in use

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings
1LED indicator

Connection examples

Connection examples

Technical data

Approvals

DGUV_NX_ET 22034_ET 22035DNV-GL_TAA0000172 Rev. 1CCC2024010305643584_SafetySwitch Nc_UL_us_E155795_2/1

Electrical connection values

Fuse max. 4 A gG
Connection cross section 0.34 ... 1.5 mm²
Display module
AC/DC 24 V -15% ... +10% (2 LEDs; green, red)
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
DC-13 4 A 24 V
AC-15 4 A 230 V
Switching voltage 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Anfahrgeschwindigkeit max. 20 m/min
Approach direction A
Connection type
3 x M20 x 1.5
Number of door position NO contacts 1
Number of door position positively driven contacts 3
Extraction force 50 N
Actuation frequency max. 6700 1/h
Actuating force 40 N
Installation orientation any
Insertion depth 32 mm
Storage temperature -25 ... 80 °C
Solenoid alignment 3
Mechanical life 2 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... 80 °C
Material
Contact Silver alloy, gold flashed
Housing Die-cast alloy cathodically dipped

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position4.5x10620 y
Important! Values valid at DC-13 100 mA/24V


In combination with actuator ACTUATOR-X-GQ

Overtravel 1 mm

In combination with actuator ACTUATOR-X-GNQ

Overtravel 8 mm

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 091682
Item designation NX1-2131AL024-M
Gross weight 0,459kg
Customs tariff number 85365019000
ECLASS 11.0 27-27-26-02 Safety switch with separate actuator (Type 2)
