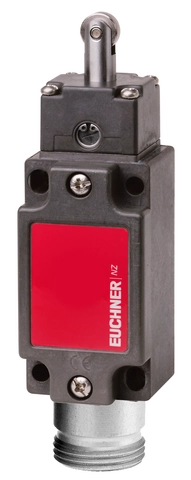

NZ2RS-3131-9C-GMMF (Order no. 087074)

Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector MR9

  • Roller plunger, steel roller ø 12 mm
  • Version C according to EN 50041
  • Plug connector MR9, 8-pin + PE
  • 2 pos. driven contact
  • 2 NO contacts
NZ2RS-3131-9C-GMMF (Order no. 087074)

Description

Approach direction

Horizontal

Can be adjusted in 90° steps

Switching element

3131H

Slow-action switching contact 2 positively driven contacts + 2 NO contact

Dimension drawing
Dimension drawing
Wiring diagram 3131H
Wiring diagram 3131H
Wiring diagram
Wiring diagram
Travel diagram
Travel diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Guide lug not aligned
10Switch can be replaced only with the same type.
2Dog
3Operating point, NO contact 13-14, NO contact 33-34
4Operating point NC contact 21-22, NC contact 41-42
5Free position
6Plug connector MENCOM (9-pin) MIN-9MR-1-18-M20
7Switching element in free position: Switching element SK 3131 H, 2 NC contacts + 2 NO contacts; NC contacts positively driven
8Positive opening function is dependent on maintaining this distance.
9Actuator (dog) must be positively mounted on the machine.

Connection examples

Connection examples

Connection examples

Connection examples
1orange
2blue
3red white/black
4green white/black
5white
6red
7green white/yellow
8white white/black
9black

Shift travel diagrams

Shift travel diagrams
g_Kontakte_geschlossen_sw.epsContacts closed
g_Kontakte_offen_sw.epsContacts open
g_Kontakte_zwangsgeoeffnet_sw.epsContacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1DGUV_NZ_ET 23025_ET 23026CCC2024010305643584_SafetySwitch Nc_UL_us_E155795_2/4

Electrical connection values

Fuse max. 4 A gG
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
DC-13 4 A 24 V
AC-15 4 A 230 V
Switching current
min. at DC 24V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Anfahrgeschwindigkeit 0.1 ... 20 m/min
Connection type
1 x Plug connector MR9 (8-pin + PE)
Number of NO contacts 2
Number of door position positively driven contacts 2
Actuating element
Slide bearing metal Roller plunger (Steel roller, d roller = 12 mm)
Actuating force 15 ... 30 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 30 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP65
Ambient temperature -25 ... 80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Safe position sensing2x10720 y
Important! Values valid at DC-13 100 mA/24V


Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 087074
Item designation NZ2RS-3131-9C-GMMF
Gross weight 0,38kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
