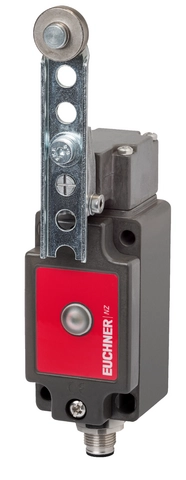

NZ2PS-511SVM5L060GE (Order no. 098645)

Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector M12

  • Lever arm, steel roller ø 18 mm
  • Plug connector M12, 5-pin
  • 1 pos. driven contact
  • 1 NO contacts
  • LED indicator: AC/DC 12-60 V yellow
NZ2PS-511SVM5L060GE (Order no. 098645)

Description

Approach direction

Horizontal

Can be adjusted in 90° steps

Switching direction adjustable

Right, left or both sides

LED indicator

The switch has one freely assignable LED indicator.

Switching element

511

Snap-action switching contact, 1 positively driven contact + 1 NO contact

Dimension drawing
Dimension drawing
Wiring diagram 511
Wiring diagram 511
Travel diagram
Travel diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Guide lug aligned
2Male socket adjustable (max. 270°)
3Positive opening function is dependent on maintaining this distance.
4Actuator (dog) must be positively mounted on the machine. Switch can be replaced only with the same type.
5Switching element ES511 snap-action contact element 1 NO contact + 1 NC contact, NC contact positive opening
A=Operating point
B=Positively driven travel
C=End position
D=Reset point

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
g_Kontakte_geschlossen_sw.epsContacts closed
g_Kontakte_offen_sw.epsContacts open
g_Kontakte_zwangsgeoeffnet_sw.epsContacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1CCC2024010305643584_SafetySwitch Nc_UL_us_E155795_2/4

Electrical connection values

Fuse max. 4 A gG
Display module
AC/DC 12 ... 60 ... 60 V LED yellow
Rated insulation voltage Ui 50 V
Rated impulse voltage Uimp 1.5 kV
Utilization category
DC-13 4 A 24 V
AC-15 4 A 30 V
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 4 A

Mechanical values and environment

Anfahrgeschwindigkeit 0.5 ... 30 m/min
Connection type
1 x Plug connector M12 (5-pin)
Number of NO contacts 1
Number of door position positively driven contacts 1
Actuating element
Slide bearing metal Lever arm adjustable (d roller = 18 mm, length = 28 - 78 mm)
Actuating force min. 15 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 30 x 10⁶
Contact bounce time max. 3 ms
Switching principle Snap-action switching contact (Contact closing time<4 Contact bounce time<3)
Schließzeit max. 4 ms
Degree of protection IP67
Ambient temperature -25 ... 80 °C
Material
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Safe position sensing2x10720 y
Important! Values valid at DC-13 100 mA/24V


Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 6,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 098645
Item designation NZ2PS-511SVM5L060GE
Gross weight 0,428kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
