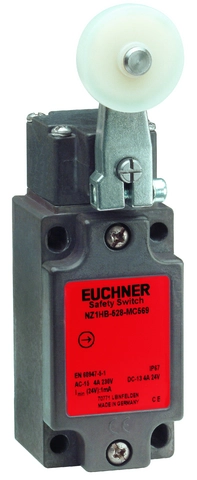

Safety switch NZ.HB.C569, lever arm with plastic roller, cable entry M20 x 1.5
- Lever arm, large plastic roller ø 30 mm
- Cable entry M20 x 1.5
- 2 pos. driven contacts
Description

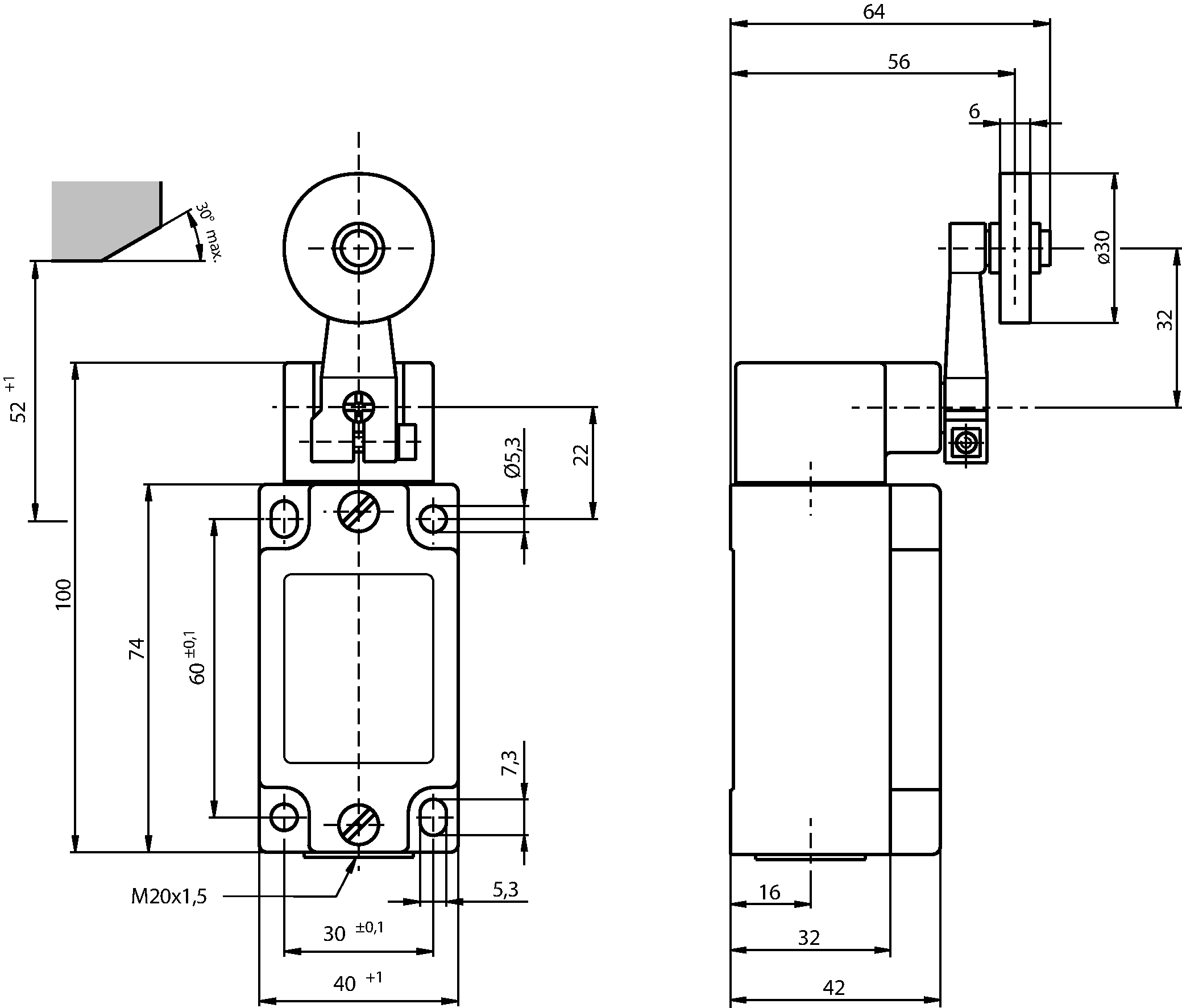

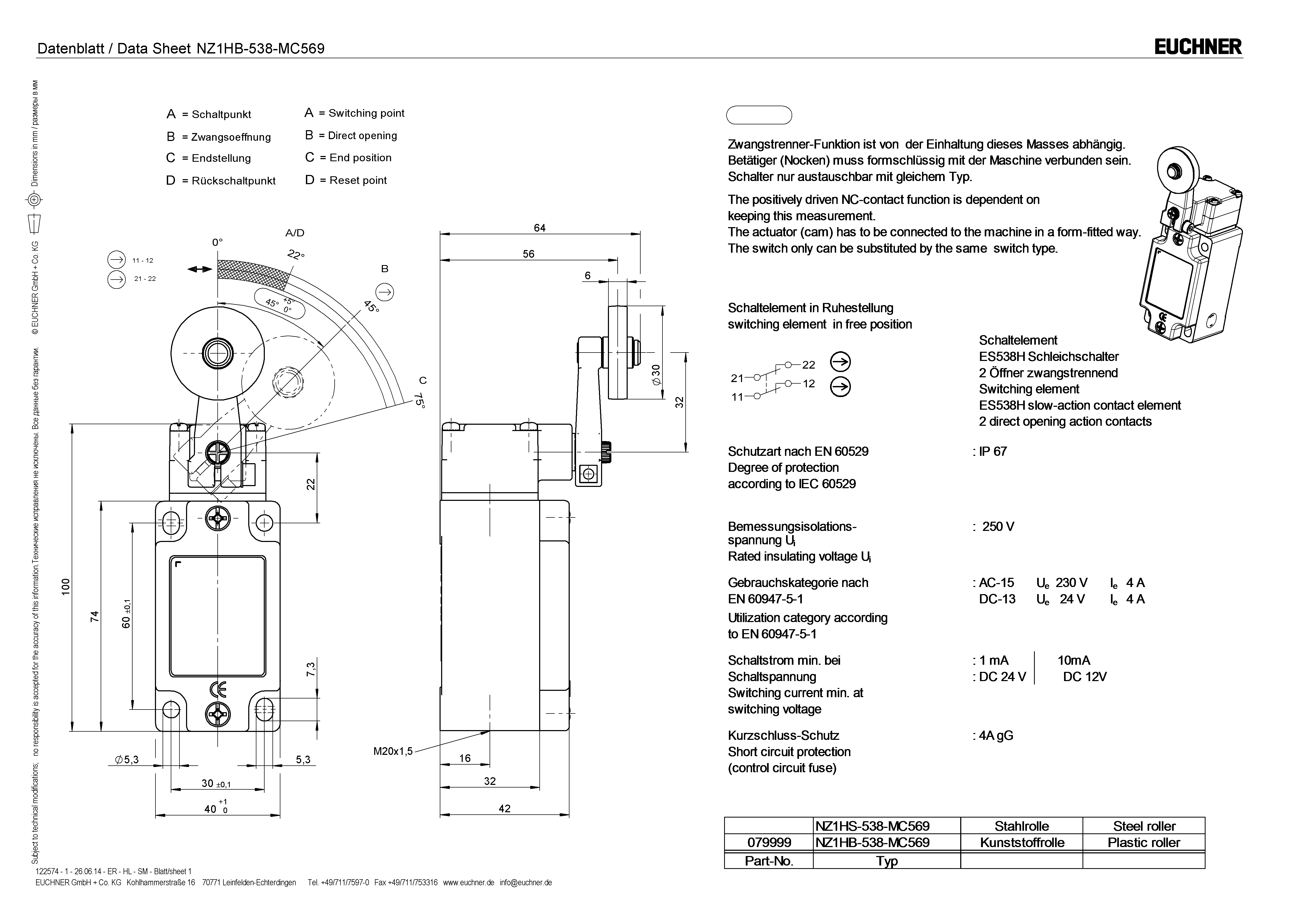

Dimensional drawings

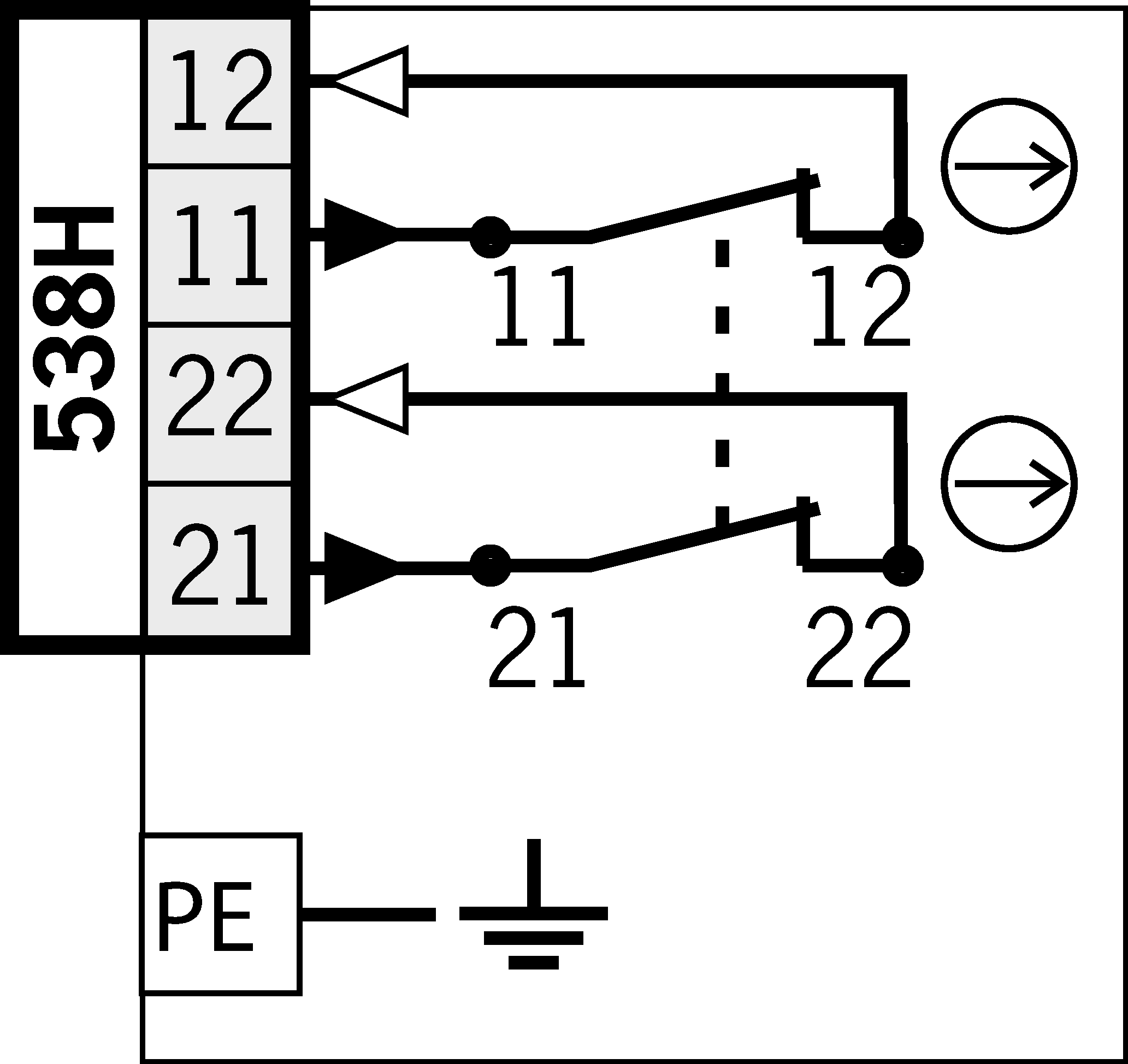

Connection examples

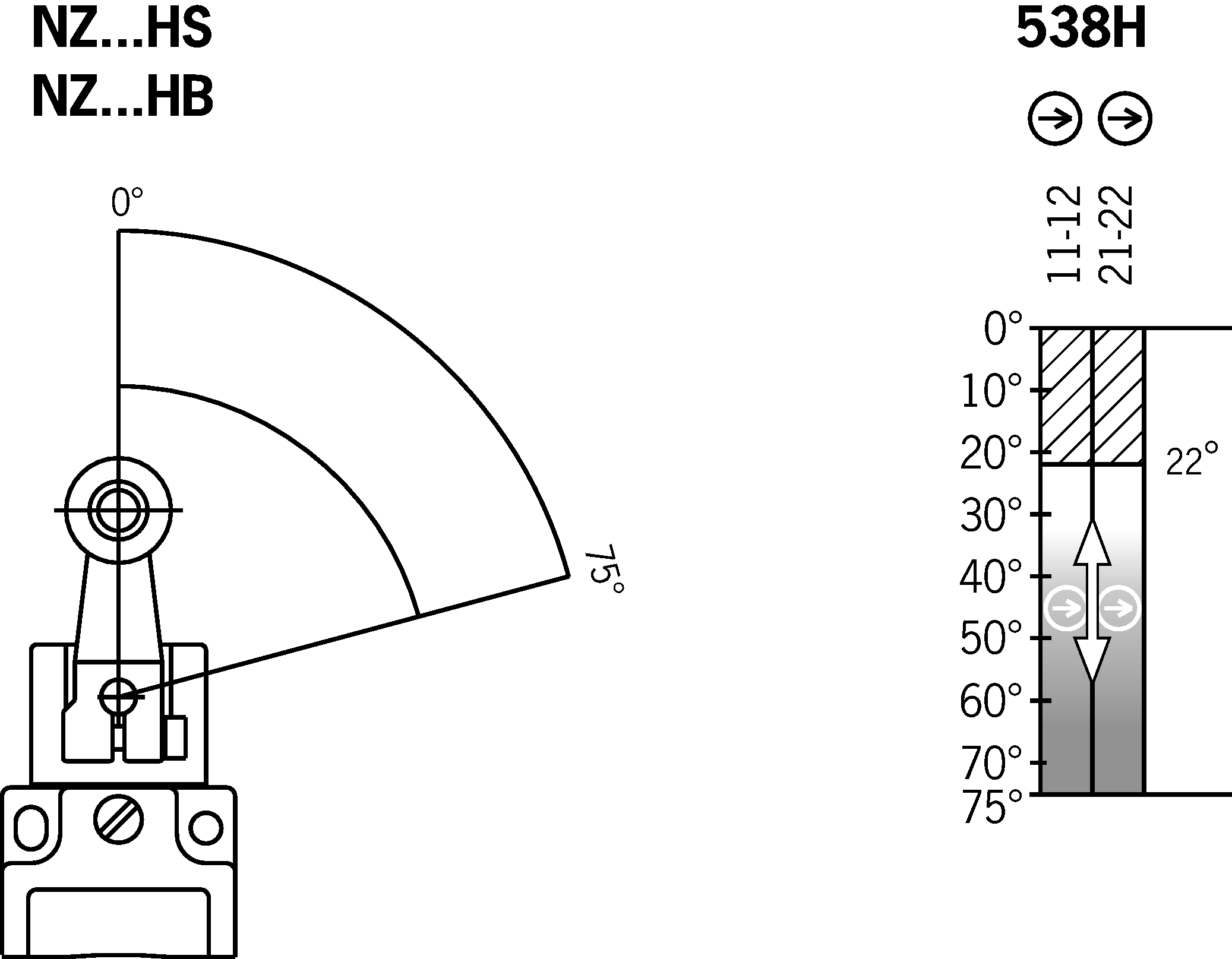

Shift travel diagrams
Contacts closed | |
Contacts open | |
Contacts positively driven |
Technical data
Approvals
Electrical connection values
Connection cross section | 0.34 ... 1.5 mm² |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2.5 kV |
Utilization category | |
AC-15 | 4 A 230 V |
DC-13 | 4 A 24 V |
Short circuit protection according to IEC 60269-1 | 4A gG |
Switching current | |
min. at DC 24V | 1 mA |
thermal rated current Ith | 4 A |
Mechanical values and environment
Approach speed | 0.1 ... 300 m/min |
Connection type | |
1 x | M20 x 1.5 |
Number of door position positively driven contacts | 2 |
Actuating element | |
Slide bearing plastic | Lever arm (d roll = 30 mm length = 32 mm) |
Actuating force | min. 15 N |
Installation orientation | any |
Mechanical life | 30 x 10⁶ |
Switching principle | Slow-action switching contact |
Degree of protection | IP67 |
Ambient temperature | -25 ... +80 °C |
Material | |
Housing | Anodized die-cast alloy |
Contact | Silver alloy, gold flashed |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
B10D | Mission time | |
---|---|---|
Safety position sensor | 2x107 | 20 y |
Important! Values valid at DC-13 100 mA/24V |
Miscellaneous
C number | |
C569 |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU declaration of conformity
Doc. no.
Version
Language
Size
EU declaration of conformity
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Doc. no.
EDC2539628
Version
Language
Size
0,2 MB
EU declaration of conformity
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Doc. no.
EDC2539628
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001551
Version
Language
Size
0,1 MB
Instructions
Operating Instructions Safety Switch NZ.H/P
Doc. no.
Version
Language
Size
Operating Instructions Safety Switch NZ.H/P
Betriebsanleitung Sicherheitsschalter NZ.H/P
Betriebsanleitung Sicherheitsschalter NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
1,4 MB
Mode d’emploi Interrupteur de sécurité NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
0,7 MB
Manual de instrucciones Interruptor de seguridad NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
0,7 MB
Betriebsanleitung Sicherheitsschalter NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
0,7 MB
Istruzioni di impiego Finecorsa di sicurezza NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
0,7 MB
Инструкция по эксплуатации Предохранительный выключатель NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
1,2 MB
Instrukcja obsługi Wyłącznik bezpieczeństwa NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
1,2 MB
Návod na prevádzku Bezpečnostný spínač NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
1,2 MB
İşletim kılavuzu Emniyet şalteri NZ.H/P
Doc. no.
2074550
Version
04/24
Language
Size
1,2 MB
Other Documents
Approvals and certificates
CCC
Doc. no.
Version
Language
Size
CCC
Doc. no.
Version
Language
Size
0,2 MB
CCC
Doc. no.
20001753
Version
Language
Size
0,0 MB
DGUV
Doc. no.
Version
Language
Size
DGUV
Doc. no.
Version
Language
Size
3,4 MB
DNV-GL
Doc. no.
Version
Language
Size
DNV-GL
Doc. no.
Version
Language
Size
0,2 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,3 MB
Sales documents
Safety Switches with Metal Housing
Doc. no.
Version
Language
Size
Safety Switches with Metal Housing
Doc. no.
100369
Version
11-03/18
Language
Size
7,8 MB
Interrupteurs de sécurité avec boîtier métallique
Doc. no.
100676
Version
11-03/18
Language
Size
7,9 MB
Interruptores de seguridad con carcasa metálica
Doc. no.
104856
Version
11-03/18
Language
Size
14,0 MB
Sicherheitsschalter mit Metallgehäuse
Doc. no.
100319
Version
11-03/18
Language
Size
7,9 MB
金属壳体 的安全开关
Doc. no.
102453
Version
11-03/18
Language
Size
8,2 MB
Bezpečnostní spínače s kovovým pouzdrem
Doc. no.
121650
Version
11-03/18
Language
Size
7,8 MB
CAD data
Ordering data
Ordernumber | 079999 |
Item designation | NZ1HB-538-MC569 |
Gross weight | 0,362kg |
Customs tariff number | 85365019000 |
ECLASS | 27-27-26-01 Safety position switch (Type 1) |
