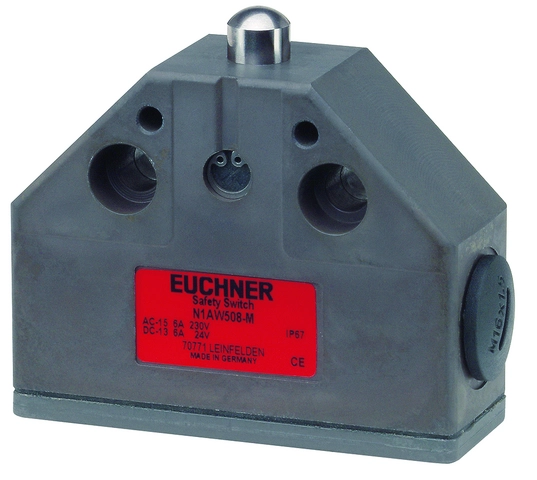

N1AW514-M (Order no. 083850)

Single limit switch N1AW, rounded plunger, cable entry M16x1.5

  • Rounded plunger
  • Housing according to DIN 43693
  • 2 x cable entry M16x1.5
  • 1 pos. driven contact
  • 1 NO contacts
N1AW514-M (Order no. 083850)

Description

Approach direction

Horizontal and vertical

Switching element

514

Snap-action switching contact, 1 positively driven contact + 1 NO contact

Dimension drawing
Dimension drawing
Wiring diagram 514
Wiring diagram 514
Travel diagram
Travel diagram

Dimensional drawings

Dimensional drawings
1Operating point
2Free position

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
g_Kontakte_geschlossen_sw.epsContacts closed
g_Kontakte_offen_sw.epsContacts open
g_Kontakte_zwangsgeoeffnet_sw.epsContacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1CCC2024010305643587_MultipleLimitSwitchc_UL_us_E155795_2/4

Electrical connection values

Fuse max. 6 A gG
Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 4 kV
Utilization category
AC-15 2.5 A 230 V
DC-13 6 A 24 V
Switching current
min. at DC 24V 5 mA
thermal rated current Ith 10 A

Mechanical values and environment

Anfahrgeschwindigkeit 0.01 ... 10 m/min
Connection type
2 x M16 x 1.5
Number of switching elements 1
Number of NO contacts 1
Number of positively driven contacts 1
Design Housing according to DIN 43693
Actuating element Rounded plunger
Actuating force min. 30 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 1 x 10⁶
Contact bounce time max. 3 ms
Switching principle Snap-action switching contact
Schließzeit max. 5 ms
Degree of protection IP67
Ambient temperature -25 ... 80 °C
Material
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Monitoring of the guard position
B10D 2 x 10⁶

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 083850
Item designation N1AW514-M
Gross weight 0,27kg
Customs tariff number 85365019000
ECLASS 27-27-06-01 Position switch (Type 1)
