N1AD508LE060-M (Order no. 087218)

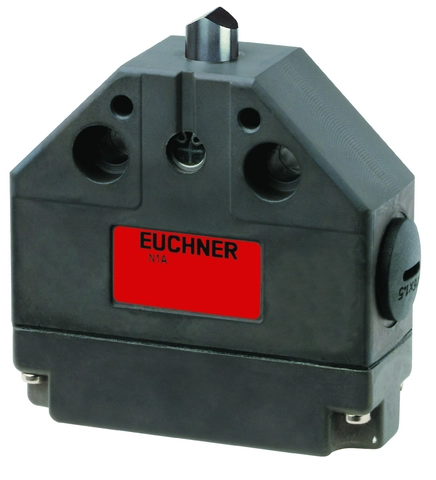

Single hole fixing limit switch N1AD, chisel plunger

  • Housing according to DIN 43693
  • LED indicator
  • Cable entry M16x1.5
N1AD508LE060-M (Order no. 087218)

Description

Approach direction

Horizontal

Can be adjusted in 90° steps

LED function display

A function display is available for the following voltage range:

  • AC/DC 12-60 V red

Switching element

508

Slow-action switching contact 1 NC

To achieve the positively driven travel, the dimension N/A must be maintained by the trip dog. Actuating elements such as dog approach guides must be firmly mounted in accordance with EN ISO 14119, i.e. riveted, welded or otherwise secured against becoming loose.

Dimension drawing
Dimension drawing
Wiring diagram 508
Wiring diagram 508
Travel diagram
Travel diagram

Dimensional drawings

Dimensional drawings
1Operating point
2Free position

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
Contacts closed
Contacts open
Contacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1c_UL_us_E155795_2/4CCC_2020980305000540_CQC2008010305306206

Electrical connection values

Connection cross section 0.34 ... 1.5 mm²
Display module
AC/DC 12 ... 60 ... 60 V LED
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 4 kV
Utilization category
DC-13 6 A 24 V
AC-15 6 A 230 V
Short circuit protection according to IEC 60269-1 10A gG
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 10 A

Mechanical values and environment

Approach speed 0.01 ... 40 m/min
Connection type
2 x M16 x 1.5
Number of switching elements 1
Number of positively driven contacts 1
Design Housing according to DIN 43693
Actuating element Chisel plunger
Actuating force min. 15 N
Installation orientation any
Mechanical life 30 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -25 ... +80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Monitoring of the guard position
B10D 20 x 10⁶

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 087218
Item designation N1AD508LE060-M
Gross weight 0,278kg
Customs tariff number 85365019000
ECLASS 27-27-06-01 Position switch (Type 1)
