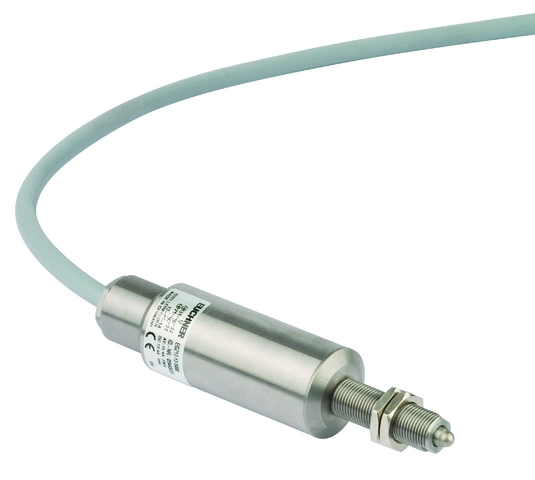

EGZ12-12-5000 (Order no. 094823)

Precision single hole fixing limit switch EGZ

  • Rounded plunger
  • Connecting cable, 5 m
  • Threaded section M12x1
  • 2 pos. driven contact
  • 1 NO contacts
  • Plunger and housing made of high-quality stainless steel
EGZ12-12-5000 (Order no. 094823)

Description

Switching element

ES12

Slow-action switching contact 2 positively driven contacts + 1 NO contact

Dimension drawing
Dimension drawing
Wiring diagram ES12
Wiring diagram ES12

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20

Electrical connection values

Fuse max. 4 A gG
Connection cross section 0.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
AC-15 4 A 230 V
DC-13 4 A 24 V
Switching voltage
min. 12 V
Switching current
min. at 24 V 1 mA

Mechanical values and environment

Anfahrgeschwindigkeit max. 8 m/min
Connection type PUR cable (seven-core)
Number of NO contacts 1
Number of positively driven contacts 2
Design Thread M12 x 1
Actuating element Rounded plunger
Actuating force max. 16 N
Installation orientation any
Storage temperature -25 ... 80 °C
Cable length 5 m
Mechanical life 3 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... 80 °C
Material
Housing Stainless steel
Contact Silver alloy, gold flashed
Repeat accuracy (absolute) ±0.01 mm (on axial actuation in the retracted state after approx. 2,000 operating cycles)

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position8x10620 y
Important! Values valid at DC-13 100 mA/24V


Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 094823
Item designation EGZ12-12-5000
Gross weight 0,59kg
Customs tariff number 85365019000
ECLASS 27-27-06-01 Position switch (Type 1)
