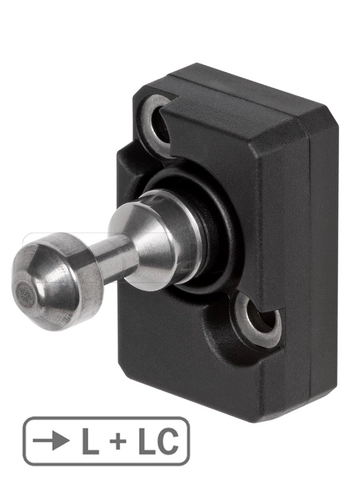

Function actuator for safety switch CTS
- Function actuator for configuration of the safety switch CTS
- Configuration: monitoring of the guard locking, low coding level (L+LC)
Description
Configuration of the safety switch
During the teach-in function, safety switch CTS is configured as follows using actuator A-FLX-D-0D-169045:
L | Monitoring of guard locking |
LC | Low coding level |
Function
The floating actuator can be used on sliding doors or hinged doors with door radii greater than 200 mm. Safety screws prevent unscrewing of the actuators.
The safety screws included (M5 x 16) can be inserted with a normal tool, but cannot be removed again.
Dimensional drawings
Dimensional drawings
Technical data
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Overtravel | 4 mm |
| Degree of protection | IP65/IP67/IP69/IP69K |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Actuating element | Stainless steel |
| Mounting | Safety screws, galvanized steel 8.8 |
| Cover | NBR |
| Housing | fiber reinforced plastic, black |
| Locking force Fmax | 3900 N |
| Locking force FZh | 3000 N |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC20001628
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001651
Version
Language
Size
0,2 MB
Other Documents
Approvals and certificates
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
1,0 MB
UQS document
Bescheinigung
Doc. no.
Version
Language
Size
Bescheinigung
Doc. no.
ECO20001630
Version
Language
Size
0,2 MB
CAD data
Ordering data
| Ordernumber | 169045 |
| Item designation | A-FLX-D-0E-169045 |
| Gross weight | 0,08kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
