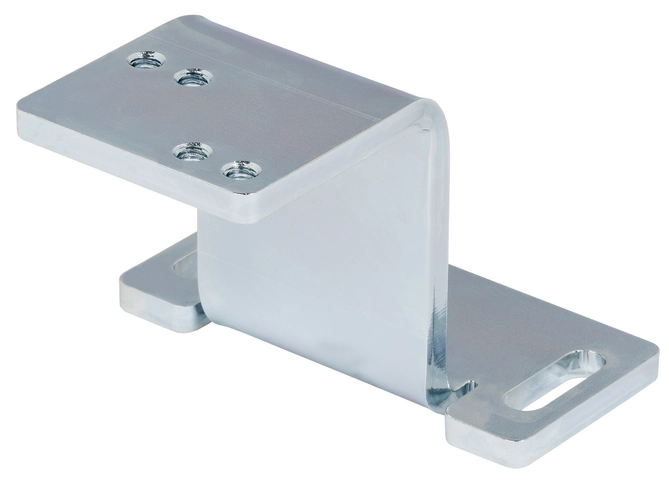

Mounting plate AM-B for actuator for safety switch CTS
- For hinged doors with hinges on the left and right
- Suitable for mounting on aluminum profiles of width 30 / 40 / 50 mm
- Galvanized steel
Description
Dimensional drawings
Technical data
Mechanical values and environment
| Material | Galvanized steel |
Miscellaneous
| Compatibility | CTS |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
CAD data
Ordering data
| Ordernumber | 171776 |
| Item designation | AM-B-171776 |
| Gross weight | 0,262kg |
| Customs tariff number | 85389099990 |
