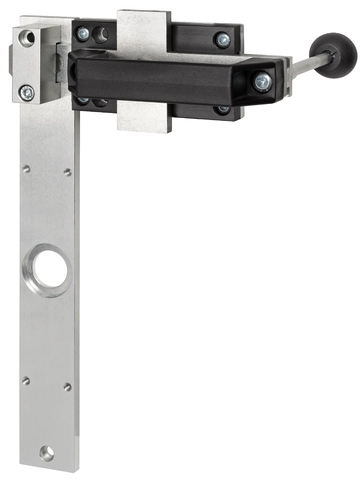

BTM-UNIP-S-TH-01-F-164196 (Order no. 164196)

Benefits

• Robust construction

• Easily mounted to standard aluminum profiles and machine covers by screw connection

• No additional door handle necessary

Notes

• The bolts are suitable for series TP, STP, STA, CTP and CTA.

• Order safety switch and actuator separately

• In combination with the safety switches CTP-...-EX, the bolt can be used in potentially explosive atmospheres according to ATEX in Zone 2/22.

• The specifications of the ATEX Directive and ATEX standards additionally apply to non-electric parts of a potentially explosive installation. Mechanical parts (the mechanical bolts in this case) are not subject to identification according to the ATEX Directive, however. The bolt BTM-UNIP-S-TH-00-X-159951 has no ATEX rating.

Latching in open position

Latching in the open position is intended to prevent persons from trapping themselves in a machine from the inside.The bolt slider is latched in the detent position. Unlock by pulling the detent knob upward.

Escape release

Bolts with escape release feature an escape lever enabling the bolt to be opened from inside a guard.

Integrated lockout bar

With the aid of the integrated lockout bar, the bolt can be secured in the open position, e.g. using padlocks. It is possible to prevent people from being locked in the danger area unintentionally.
