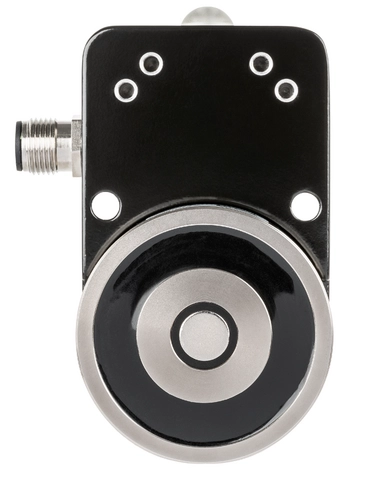

CEM-M2-C60-PZ-SE-161320 (Order no. 161320)

CEM-C60 Electromagnetic Guard Locking for CES-C04 / CES-C07 Safety Switches, M12 Plug Connector(s) (Left-Handed)

  • Plug connector M12, 5-pin
  • Plug connector(s) on the left
  • Built-in permanent magnet, 30 N adhesive force
CEM-M2-C60-PZ-SE-161320 (Order no. 161320)

Description

Approach direction

Horizontal

Guard locking principle

Operating current (power to lock): In a safety guard with guard locking based on the open-circuit current principle, the safety guard remains locked until the power supply to the guard locking solenoid is interrupted. This is also referred to as an electrical guard locking.

Combinations

Guard locking solenoidSafety switchActuatorApplication

Accessories required

Switches and actuators are not included.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings
1Permanent magnet
2With the installation orientation shown: cable outlet on left or right

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E155795_3/11

Workspace

Center offset
Solenoid 2.5 mm
Transponder detection (typical value at room temperature) 10 mm

Electrical connection values

Power consumption 2.4 W
Operating voltage DC
UCM 24 V DC -15% ... +10%
Solenoid duty cycle 100 %
Current consumption 100 mA

Mechanical values and environment

Connection type M12, 5-pin
Installation orientation any
Adhesive force
by permanent magnet 30 N 0 ... +15
Storage temperature -25 ... 70 °C
Mechanical life
in case of use as door stop, and 1 Joule impact energy 1 x 10⁶
Degree of protection IP65/IP67
Ambient temperature -25 ... 50 °C
Material
Housing Aluminum
Solenoid Steel, nickel plated
Locking force F
(not monitored, in axial direction) at UCM=24 V 650 N
Guard locking principle Open-circuit current principle

In combination with safety switch CES-I-BP-M-C07-SB-160076, CES-I-BP-U-C07-SB-160080, CES-I-BR-U-C07-SA-157920, CES-I-BP-M-C07-SI-162813, CES-I-BP-U-C07-SI-162815, CES-I-BR-M-C07-SA-156233, CES-I-BR-S-C07-SA-165914

Secured switch-off distance sar 17 mm
Secured switching distance sao
with center offset m=0 min. 2 mm

In combination with safety switch CES-I-AP-U-C04-USI-115150, CES-I-AP-U-C04-SK-115324, CES-I-AP-U-C04-USB-116502, CES-I-AP-U-C04-U05-116503, CES-I-AP-U-C04-U10-116504, CES-I-AP-U-C04-U20-116505, CES-I-AP-M-C04-USI-117323, CES-I-AP-M-C04-USB-117324, CES-I-AP-M-C04-SK-117325, CES-I-AP-M-C04-U05-117328, CES-I-AP-M-C04-U10-117329, CES-I-AP-M-C04-U20-117330, CES-I-AR-U-C04-SG-119469, CES-I-AR-U-C04-U05-119470, CES-I-AR-U-C04-U10-119471, CES-I-AR-U-C04-U20-119472, CES-I-AR-U-C04-USA-119473, CES-I-AR-M-C04-SG-119474, CES-I-AR-M-C04-U05-119475, CES-I-AR-M-C04-U10-119476, CES-I-AR-M-C04-U20-119477, CES-I-AR-M-C04-USA-119479, CES-I-AP-M-C04-USI-160832, CES-I-AR-F-C04-SG-161679, CES-I-AP-M-C04-USI-162592

Secured switch-off distance sar 40 mm
Secured switching distance sao
with center offset m=0 min. 5 mm

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,9 MB)

Single Documents

Other Documents

ePlan macros

Ordering data

Ordernumber 161320
Item designation CEM-M2-C60-PZ-SE-161320
Gross weight 0,505kg
Customs tariff number 85389099990
ECLASS 27-27-24-05 Safety-related transponder switch with guardlocking
