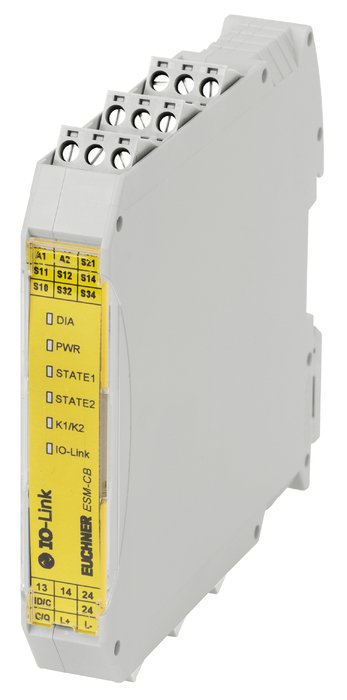

ESM-CB-AZ-FI2-BR-IO-158875 (Order no. 158875)

Basic device ESM-BR.., two safety contacts, no time-delay, cat. 4

  • Usage up to category 4 according to EN ISO 13849-1
  • Compact version measuring only 18 mm in width
  • LED status indicators
  • Single-channel or dual-channel control
  • 2 redundant safety contacts
  • 2 safety inputs suitable for up to 20 safety switches in the series connection of CES devices
  • 2 safety outputs
  • Diagnostic function can be polled via IO-Link
  • Short circuit and earth fault/ground fault monitoring
  • Industry 4.0 level
ESM-CB-AZ-FI2-BR-IO-158875 (Order no. 158875)

Description

Relay outputs

The outputs are electrically decoupled and of redundant design.

Connection options

By using suitable wiring the following functions can be selected:

  • Relay start with automatic start, or a monitored start button
  • Monitoring of downstream relays or contactors
  • Simultaneity monitoring to monitor safety components over time
  • Short circuit monitoring to detect short circuits between the connecting cables and to shut down the outputs or prevent relay starting if necessary
  • Earth fault/ground fault monitoring to detect short circuits between the connecting cables and earth or ground and to shut down the outputs or prevent relay starting if necessary.

No time-delayed shutdown

Supplies process-relevant parameters in real time

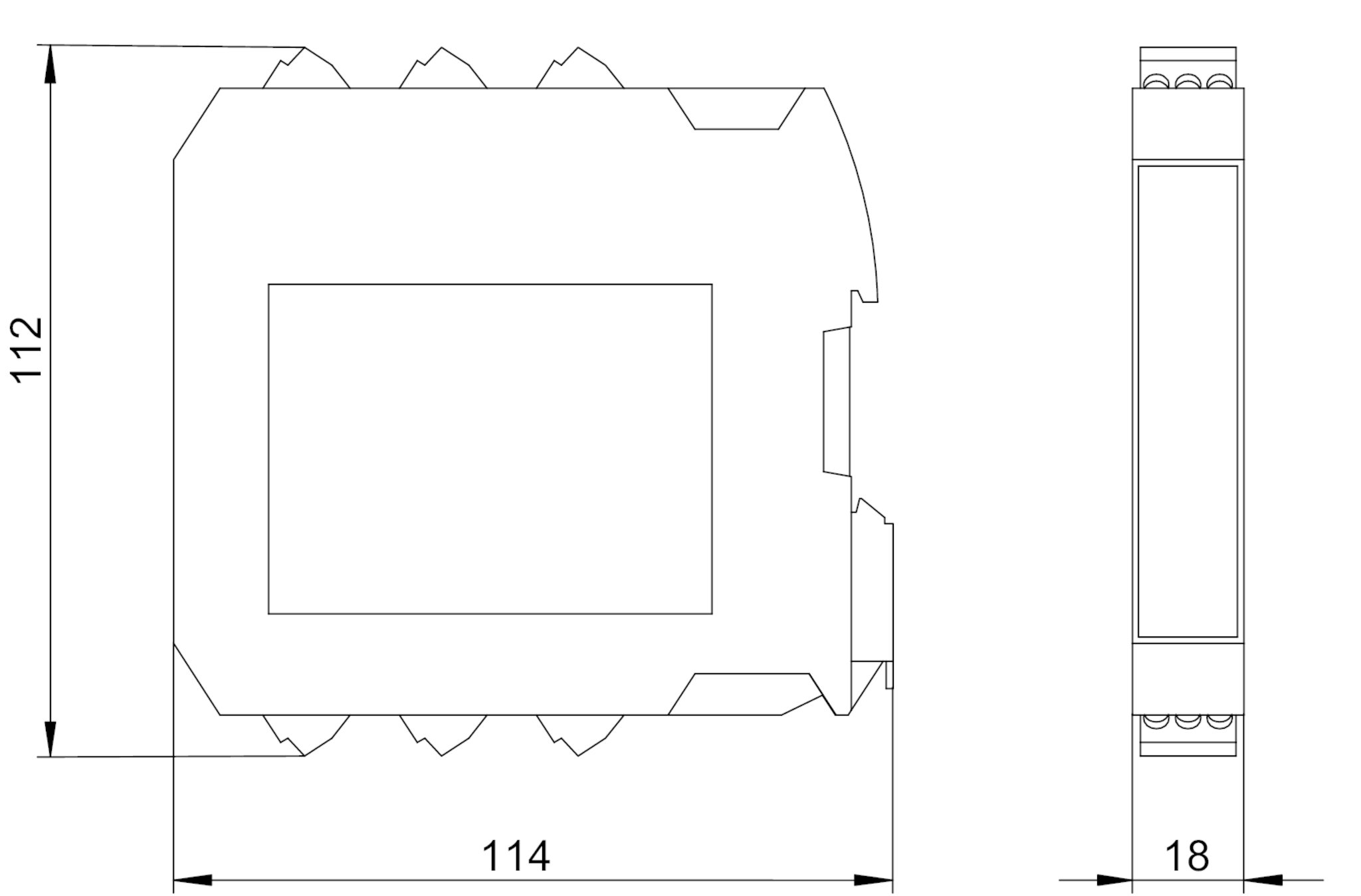

Dimension drawing
Dimension drawing

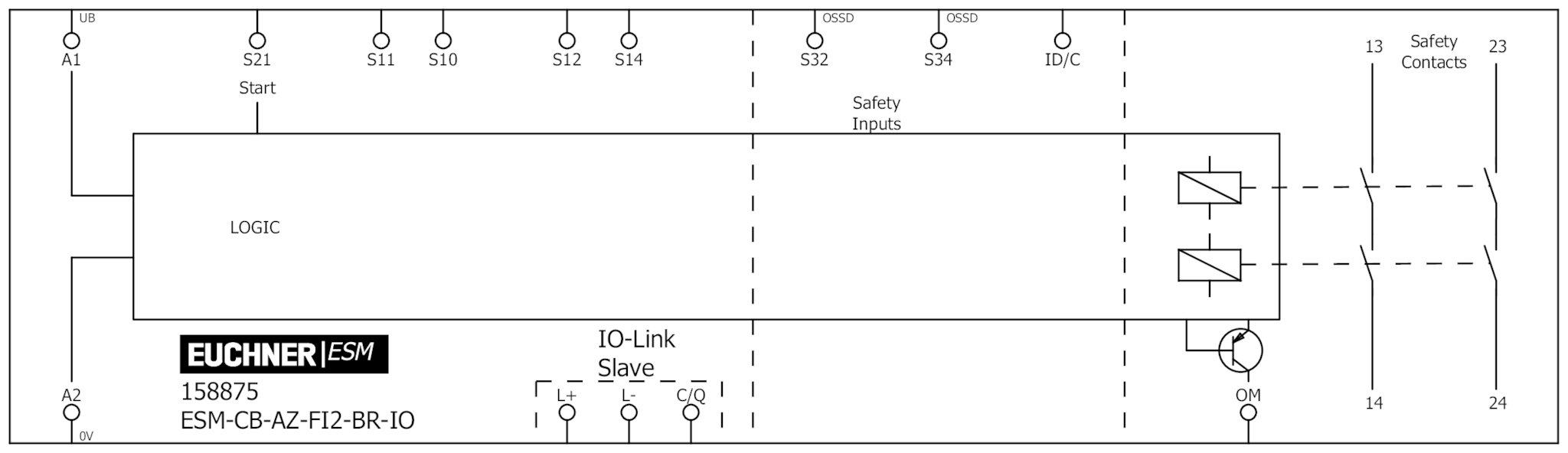

Wiring diagram
Wiring diagram

Dimension drawing

Dimension drawing

Wiring diagram

Wiring diagram

Technical data

Approvals

Zulassung TÜV Rheinland, BMPB mit ZG: Type Approved

Mechanical values and environment

Dimensions 17.5 x 116.5 x 114.5
Type specification Electromechanical relay with positively driven contacts according to IEC/EN 61810-3 (EN 50205)
Housing material
Housing PBT, gray
Weight
Net 0,148 kg
Ambient temperature
(operation) -25 ... 60 °C
(storage/transport) -40 ... 85 °C
Atmospheric humidity max.75 % rH
Degree of protection
IP20
IP54 (Installation location, min.)
permissible shock and vibration load 10 Hz...150 Hz, 2 g
Mounting method Mounting rail 35mm according to DIN EN 60715 TH35
Installation orientation vertical or horizontal
Connection plug-in spring terminals
Stripping length 8 mm
Safety contacts 13/14, 23/24
Number of safety contacts 2
Contact material AgSnO2
Mechanical life 10 x 106
Switching frequency 0,5 Hz
Monitoring output OM
Number of monitoring outputs 1
IO-Link
Number of masters
Class A 1
Number of inputs
Switching and communication line: ID/C 1
Connection Spring terminals
Connection type 3-conductor
Diagnostic input ID/C
Number of inputs 1
Sensor circuit S1: S12, S14
Number of inputs 2
Sensor circuit S2: S32, S34
Number of inputs 2
Start circuit S21
Number of inputs 1

Electrical connection ratings

100 %
Power dissipation max.6,45 W ((US=30 V, UL=30 V, I²=72 A²))
Rated insulation voltage Ui 320 V
Rated impulse withstand voltage Uimp
Leakage path/air gaps 4 kV
Overvoltage category according to IEC EN 60664-1 2
Connection rating
at 24V DC 1,44 W
Degree of contamination (external, according to EN 60947-1) 2
Connection cross-section 0,2 ... 1,5 mm²
LED indicator 1x operating voltage display PWR, 5x status displays DIA, STATE1, STATE2, K1/K2, IO-Link
Safety contacts 13/14, 23/24
Short-circuit current 4A (24 V (DC13)), 5A (250 V (AC15))
Type of output
NO Two NO contacts in series, non-time-delayed, floating, positively driven (redundant) (Positively-driven relay according to IEC/EN 61810-3 (EN 50205))
Switching voltage
AC/DC 12 ... 250 V
Switching current max.6000 mA
Cumulative current max.10,5 A For all contacts
Fusing
External contact fuses (safety circuit) according to IEC 60269-1 6A gG
Breaking capacity min.0,06 W
Monitoring output OM
Type of output
NC One NO contact (not relevant to safety) PNP
Switching current max.100 mA
Output voltage
Approx. 22 V DC (Us - 2 V)
IO-Link
Process-data update 5 ms
Cycle time 5 ms
Power supply
Supply: L+/L- 24 24 V DC -20% / +25% (provided via the IO-Link interface of the IO-Link master)
Current consumption
Supply: L+/L- 16 mA
Reverse polarity protection Serial reverse polarity protection
Diagnostic input ID/C
Current consumption 30 mA
Sensor circuit S1: S12, S14
Test pulses 1,5 ms ((test-pulse width, LOW test pulses))
Test-pulse interval Test-pulse rate = 5 x test-pulse width (Deactivate switch-on pulses/light tests on safety applications.)
Current consumption
at S12 <5 mA
at S22 / 24 V <5 mA
at S22 / 0 V >-5 mA
Input current
0-signal 0 ... 2 mA
Input voltage
1-signal 11 ... 30 V DC
0-signal 0 ... 5 V DC
Discrepancy time
Sensor circuit S2: S32, S34
Test pulses 1,5 ms ((test-pulse width, LOW test pulses))
Test-pulse interval Test-pulse rate = 5 x test-pulse width (Deactivate switch-on pulses/light tests on safety applications.)
Current consumption <5 mA
Input current
0-signal 0 ... 2 mA
Input voltage
0-signal 0 ... 5 V DC
1-signal 11 ... 30 V DC
Discrepancy time
Start circuit S21
Current consumption
at S21 / 0 V >-5 mA
at S21 / 24 V <5 mA
Input voltage
1-signal 19,2 ... 30 V DC
Supply A1/A2
Operating voltage DC
Us 24 V DC -20% ... +25% (All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.)
Current consumption 60 mA
Reverse polarity protection Serial reverse polarity protection

Interface, bus

IO-Link
Data rate
(COM3) 230 kbit/s

Other

In compliance with
Sensor circuit S1: S12, S14
Description NPN (S12), NPN/PNP (S22)
Sensor circuit S2: S32, S34
Description NPN
Start circuit S21
Description NPN (manual start), PNP (automatic start)
IO-Link
Product version number Version 1.1

Reliability values according to EN ISO 13849-1

Demand rate
for IEC 61508 – high demand < 12 Monate
PFD
for IEC 61508 – low demand 3.76 x 10-5 (This value is dependent on the number of switching cycles and the switching current.)
Proof-test interval
for IEC 61508 – high demand 240 Monate
for IEC 61508 – low demand 36 Monate
ESPE type
for IEC 61508 – high demand Type A
Performance Level
acc. to EN ISO 13849 PL e (4 A DC13; 5 A AC15; 8,760 operating cycles/year) (A demand rate of the safety function of once per month is required for applications in PL e.)
Category
acc. to EN ISO 13849 4
PFHD
for IEC 61508 – high demand 1.00 x 10-9 (This value is dependent on the number of switching cycles and the switching current.)
SIL CL
for IEC 61508 – high demand 3
for IEC 61508 – low demand 3
for EN 62061 3 (A demand rate of the safety function of once per month is required for applications in SIL CL 3.)
Mission time 20 y (This value is dependent on the number of switching cycles and the switching current.)
