AE-R-S1-158322 (Order no. 158322)

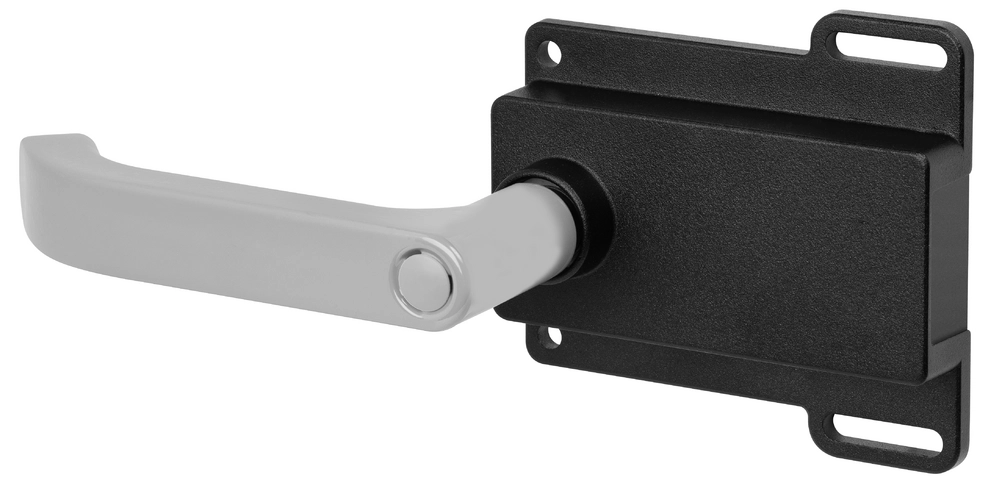

Inner door handle AE-R-S1

  • Inner door handle silver colored
  • A sticker describing the opening sequence is included with the locking module
  • Extended actuation axis for thicker doors (order separately)
AE-R-S1-158322 (Order no. 158322)

Description

Inner door handle

In combination with a locking module with escape release, the safety system must be equipped with an inner door handle. It enables people shut in to open the locked door from the danger zone.

The actuation axis supplied is suitable for profiles up to 40 mm.

Extended actuation axis

Optionally, for thicker doors or profiles>40 mm, a 250 mm long actuation axis (order no. 106761) (instead of 110 mm) can be ordered. The axis can be shortened to the required dimension.

Dimension drawing
Dimension drawing

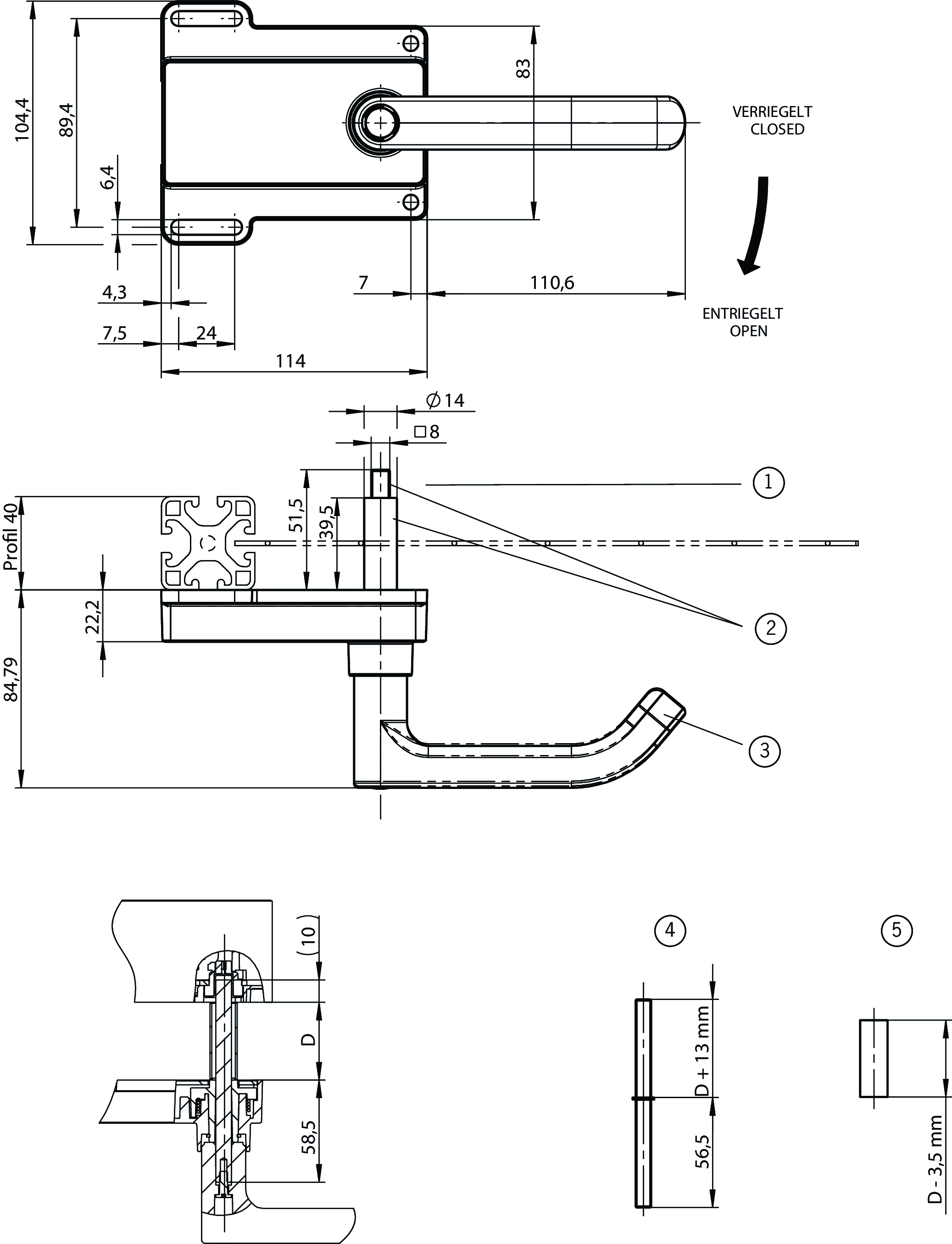

Dimensional drawings

Dimensional drawings
1Connection - handle module
2Protective sleeve and actuation axis enclosed separately
3Door handle/door knob (silver colored)
4Shaft
5Sleeve

Technical data

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Mechanical life 1 x 10⁶
Ambient temperature -20 ... 55 °C
Material
Housing Die-cast zinc, stainless steel powder-coated, brass

Miscellaneous

Additional feature with silver-colored handle

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,4 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 158322
Item designation AE-R-S1-158322
Gross weight 0,81kg
Customs tariff number 85389099990
