AC-DP-04-SA-120861 (Order no. 120861)

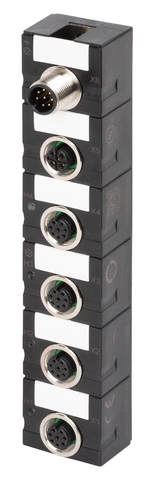

Passive distribution module

  • Connection of up to 4 CES-AR, CET-AR, CTP-AR, MGBS-AR and ESL-AR
  • LEDs for the indication of the door position on each port
  • Can be connected in series
AC-DP-04-SA-120861 (Order no. 120861)

Description

Dimension drawing
Dimension drawing

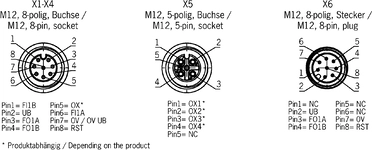

Connector assignment
Connector assignment

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E357602_V2

Electrical connection values

Rated impulse withstand voltage Uimp 0.8 kV
Rated voltage 18 ... 24 ... 30 V
Nominal current
per contact 2 A
Cumulative current max. 2 A

Mechanical values and environment

Dimensions 151 x 30 x 34.5
Ambient temperature -20 ... +60 °C
Material
Housing PBT plastic, black
Connection 5
Connection type 1 x plug connector M12
Connection type Female plug
Insulating material group III
Number of pins 5
Degree of protection IP67 (in the inserted state)
Plug lock Screw terminal
Material
Plug housing CuZn, nickel plated
Contact CuZn, gold plated
Connection 6
Connection type 1 x plug connector M12
Connection type Male plug
Insulating material group III
Number of pins 8
Degree of protection IP67 (in the inserted state)
Plug lock Screw terminal
Material
Plug housing CuZn, nickel plated
Contact CuZn, gold plated
Connection 1-4
Connection type 4 x plug connector M12
Connection type Female plug
Insulating material group III
Number of pins 8
Degree of protection IP67 (in the inserted state)
Plug lock Screw terminal
Material
Contact CuZn, gold plated
Plug housing PBT plastic, black

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 120861
Item designation AC-DP-04-SA-120861
Gross weight 0,193kg
Customs tariff number 85389091
