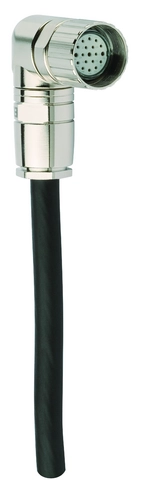

Connection cable with plug connector M23 with option C1825, 20m, angled
- M23 plug connector, 18-pin + PE
- Angled plug connector
- Cable exit A (right)
- PUR cable
- Cable length 20 m
- With flying lead
- Cores color-coded
Description
Connector assignment

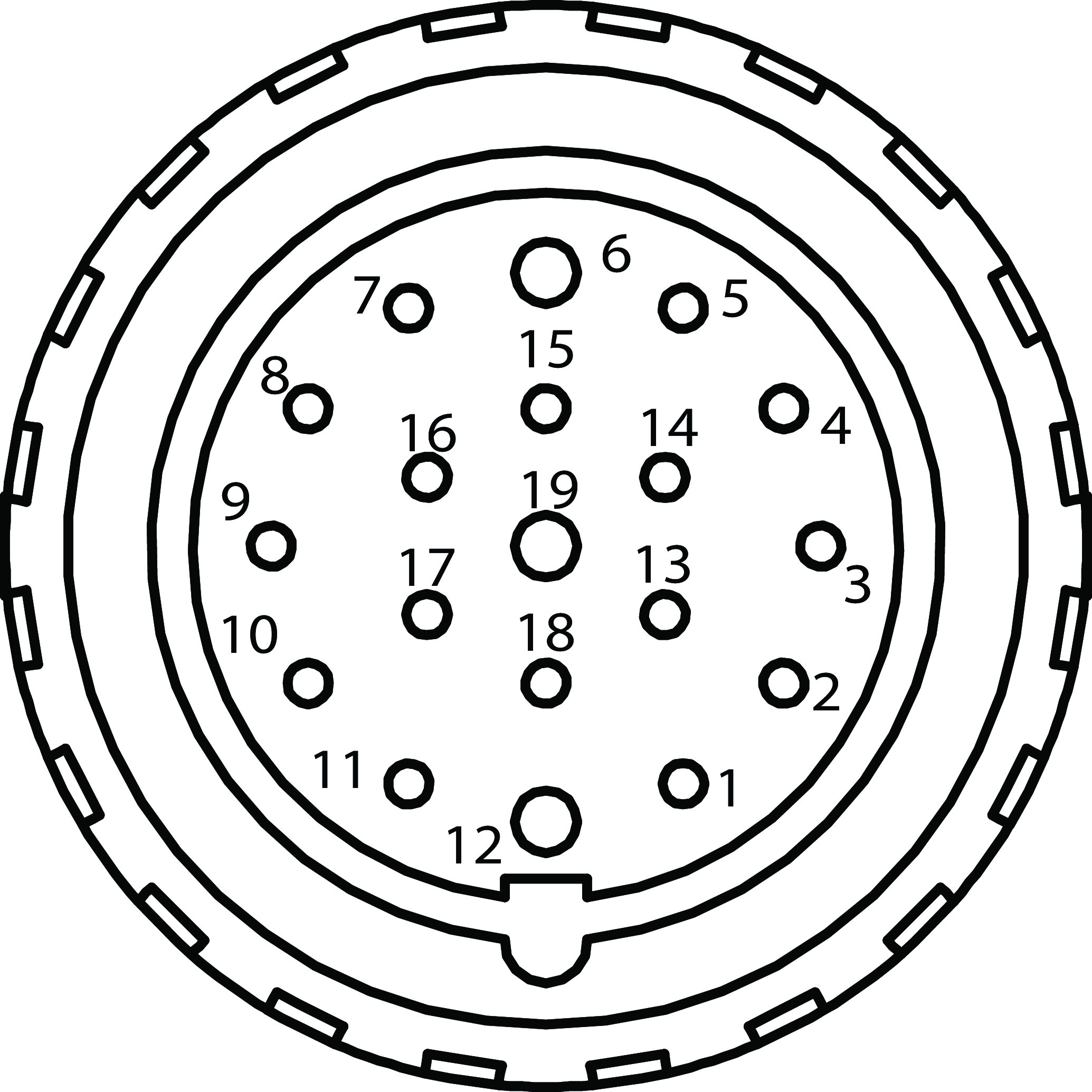

Plug connector (view of connection side) |
Pin |
Cross-section |
Conductor coloring |
|---|---|---|---|
|
1 |
0.5² |
VT |
2 |
0.5² |
RD |
|
3 |
0.5² |
GY |
|
4 |
0.5² |
RDBU |
|
5 |
0.5² |
GN |
|
6 |
1.0² |
BU |
|
7 |
0.5² |
GYPK |
|
8 |
0.5² |
GNWH |
|
9 |
0.5² |
YEWH |
|
10 |
0.5² |
GYWH |
|
11 |
0.5² |
BK |
|
12 |
1.0² |
GNYE |
|
13 |
0.5² |
PK |
|
14 |
0.5² |
BNGY |
|
15 |
0.5² |
BNYE |
|
16 |
0.5² |
BNGN |
|
17 |
0.5² |
WH |
|
18 |
0.5² |
YE |
|
19 |
1.0² |
BN |

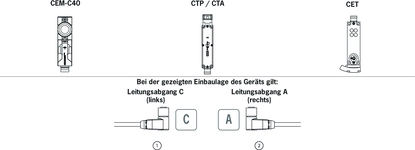

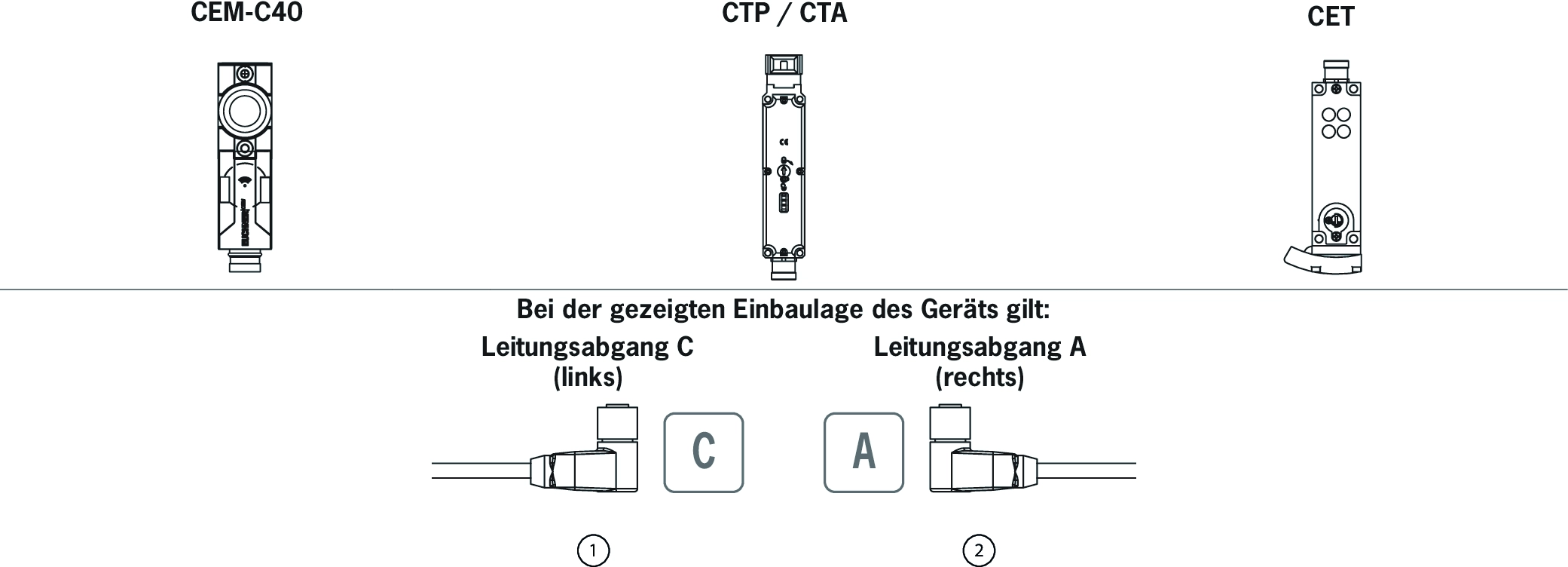

Dimension drawing

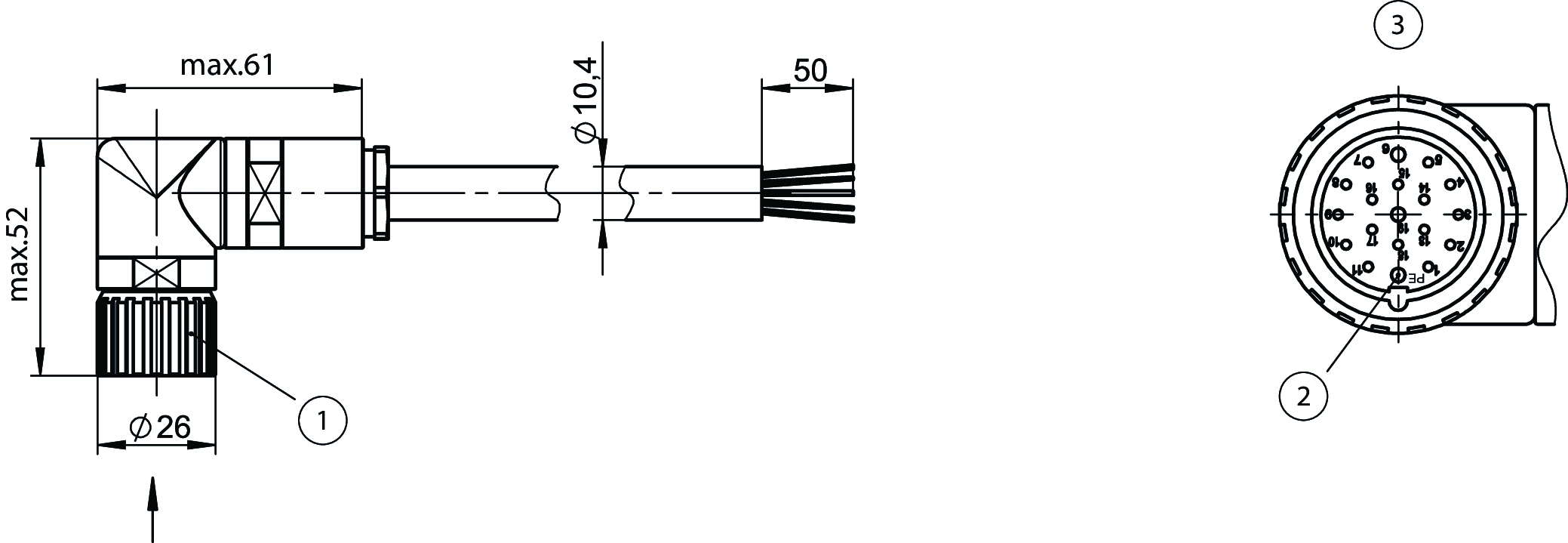

| 1 | Female plug M23, 19-pin, with shield spring |
| 2 | PIN 12 (PE with shield spring) |
| 3 | Terminal assignment as seen from the connection side cable outlet A |
Technical data
Approvals
Mechanical values and environment
| Cable ambient temperature (dynamic) | -20 ... +90 °C |
| Cable ambient temperature (static) | -40 ... +90 °C |
| Dynamic bending radius | 10x cable diameter |
| Sheath material | PUR |
| Conductor insulation material | PVC |
| Conductor material | EL-Cu flexible wire bare super fine strands |
| Fire behavior | Flame retardant according to VDE 0472 804 |
| Drag chain suitability | Yes |
| Number of conductors | 19 |
| Type of cable | straight |
| Cable length | 20 m |
| Cable diameter | |
| Approx. | 11,6 mm |
| Conductor cross-section | 16 x 0.5 mm² / 3 x 1 mm² |
| Conductor identification | Color code |
| Sheath color | Black |
| Connection 2 | |
| Conductor end | Sheath stripped |
| Connection | Flying lead |
| Connection 1 | |
| Degree of protection | IP65/IP67 (Locked) |
| Plug lock material | CuZn, nickel-plated |
| Designation of plug connector | RC (With screen bonding clamp) |
| Insertion cycles | 50 |
| Connection | Plug connector M23 |
| Connection type | Female plug |
| Cable outlet | Angle right |
| Number of pins | 19 (18+PE) |
| Plug lock | Screw connection |
| Plug housing material | CuZn, nickel-plated |
Electrical connection ratings
| Rated voltage | 150 V |
| Overvoltage category according to IEC EN 60664-1 | II |
| Test voltage | 1,5 kV |
| Connection 1 | |
| Degree of contamination according to EN 60664-1 | 3 |
