AC-PC-M23M19G-C1825-167889 (Order no. 167889)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

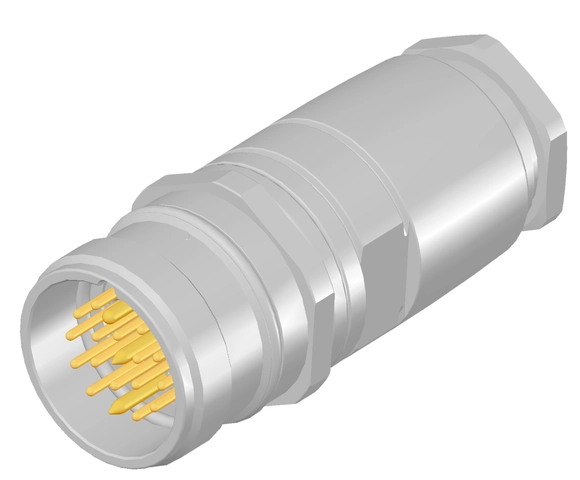

Plug connector M23 with option C1825, straight

Male plug M23 with external thread, straight
Number of pins: 18-pin + PE (with shield spring)
Conductor cross-section: 16 x 0.14...0.56 mm² + 2 x 0.5...1.0 mm² + 1 x 0.5...1.0 mm²
Cable diameter: 9...15 mm
for self-assembly
Crimp contacts included
Suitable for connection to cables with M23 female plug (with option C1825)

AC-PC-M23M19G-C1825-167889 (Order no. 167889)

Description

Crimp contacts

Socket contacts (included):

For pins 6, 9

For PE pin: groove identifying the crimp contact

Required crimp tools (supplied by Phoenix Contact): crimping pliers RC-Z2504 or RC-Z2514 and locator RC-Z2540 The locator is essential for the axial alignment of the crimp contacts during the crimping process, Extraction tools:

for the 16 crimp contacts (diameter 1.0 mm): RC-Z2097-1604251

for the 3 crimp contacts (diameter 1.5 mm): RC-Z2015-1183713

Dimensional drawings

1	Pin assignment view of connection side
2	PE (with shield spring)
3	Shield spring integrated in contact carrier.

Technical data

Electrical connection values

Connection cross section	16 x 0.14 - 0.56 mm² / 3 x 0.5 - 1.0 mm²
Rated impulse withstand voltage U_imp	1.5 kV
Rated voltage	max. 150 V
Nominal current	max. 4 A
Screen connection	Crimp contact for connecting the shield spring

Mechanical values and environment

Connection type	Plug connector M23
Connection type	Male plug with external thread
Cable outlet	straight
Cable diameter	9 ... 15 mm
Number of pins	19 (16+2+PE)
Degree of protection	IP65/IP67 (in the inserted and screwed tight state)
Material
Contact	Brass, gold plated
Plug connector housing	die-cast zinc, nickel plated

Miscellaneous

C number
C1825	Connection cross-section 16 x 0.5-1.0 mm² / 3 x 0.5-1.0 mm²

Accessories

Connection accessories

Replacement crimp contacts for male plug M23 with option C1825

168100
AY-SET-CM-C1825-168100

For male plug M23, 18 + PE
19 x pin crimp contacts
Conductor cross-section: 16 x 0.14...0.56 mm² + 2 x 0.5...1.0 mm² + 1 x 0.5...1.0 mm²
