C-M23F19-19XDIFPU06,0-MA-077014 (Order no. 077014)

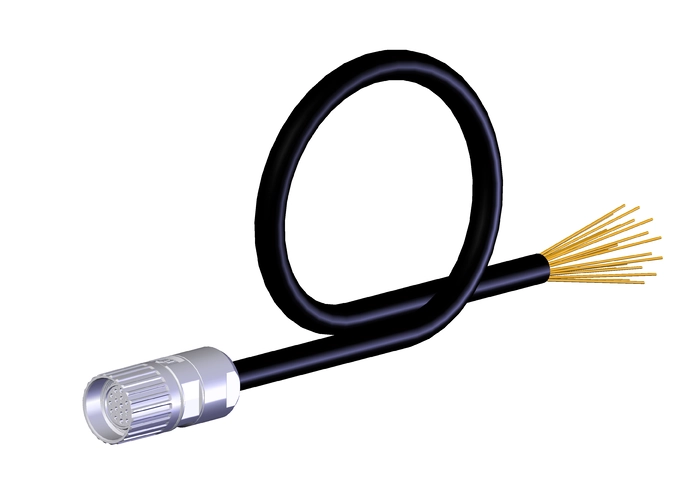

Connecting cable with plug connector M23 with option C1825, 6 m, straight

  • M23 plug connector, 18-pin + PE
  • Straight plug connector
  • PUR cable
  • Cable length 6 m
  • With flying lead
  • Cores color-coded
C-M23F19-19XDIFPU06,0-MA-077014 (Order no. 077014)

Description

Connector assignment

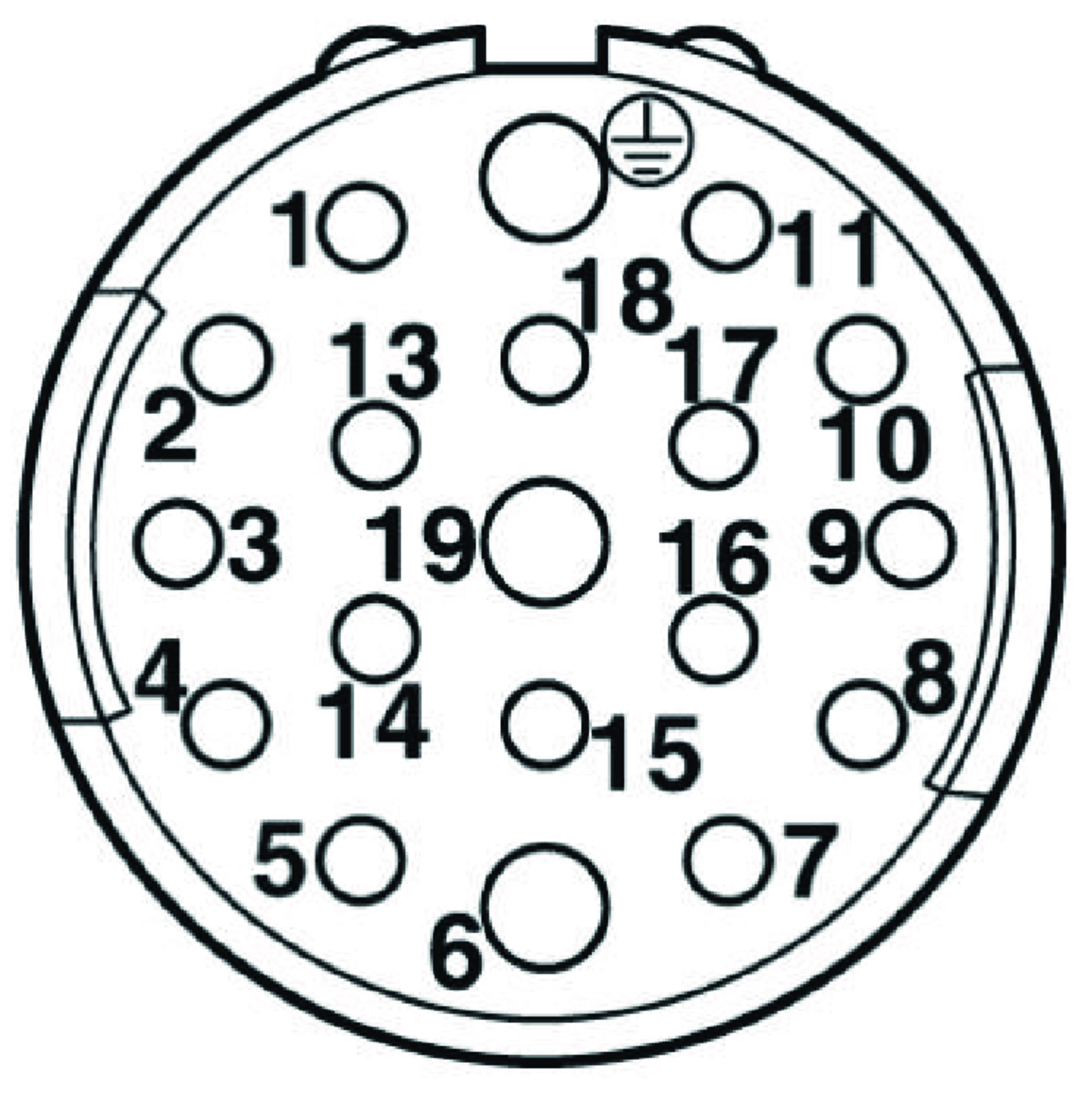

Plug connector (view of connection side)PinCross-sectionConductor coloring

10.5 mm²VT
20.5 mm²RD
30.5 mm²GY
40.5 mm²RDBU
50.5 mm²GN
61.0 mm²BU
70.5 mm²GYPK
80.5 mm²GNWH
90.5 mm²YEWH
100.5 mm²GYWH
110.5 mm²BK
121.0 mm²GNYE
130.5 mm²PK
140.5 mm²BNGY
150.5 mm²BNYE
160.5 mm²BNGN
170.5 mm²WH
180.5 mm²YE
191.0 mm²BN
Dimension drawing
Dimension drawing

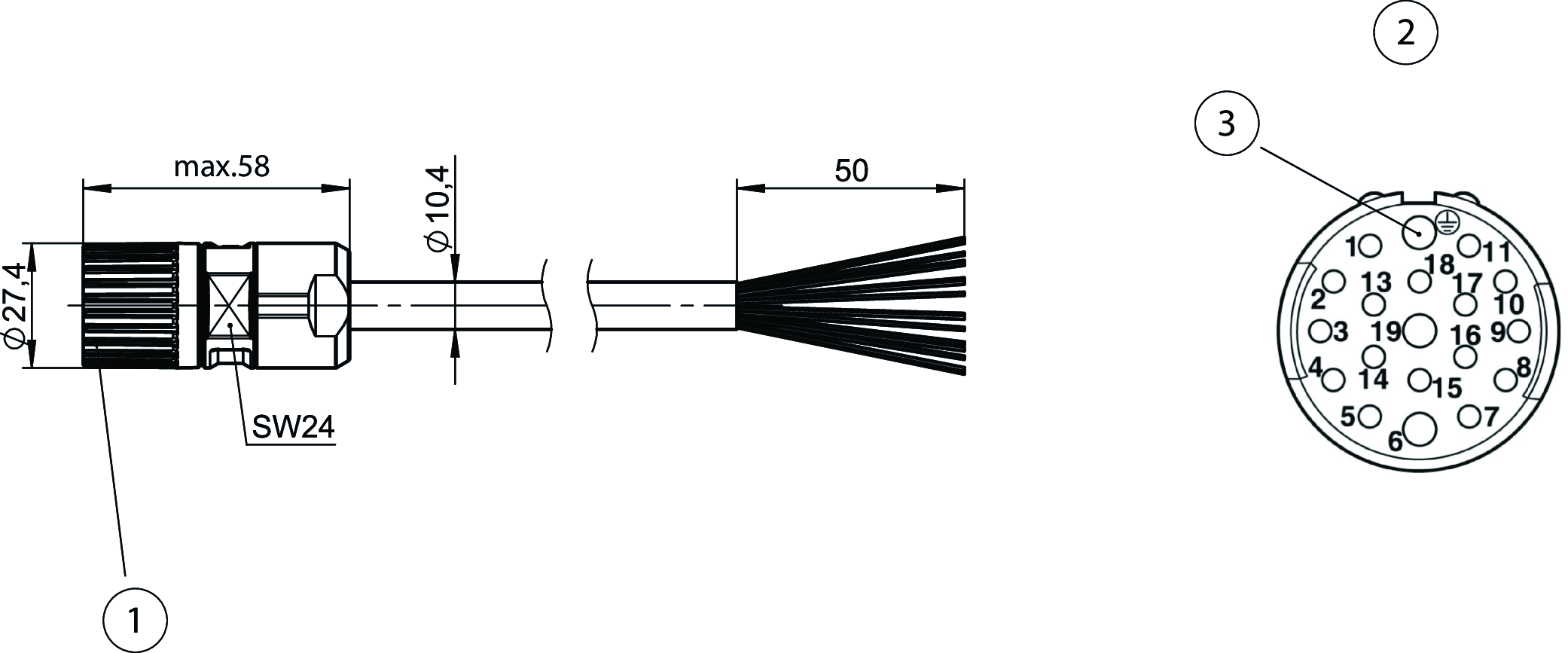

Dimensional drawings

Dimensional drawings
1Female plug with union nut M23, 19-pin.
2Terminal assignment as seen from the plug side
3PE with shield spring

Technical data

Approvals

c_UL_us_E357602_M23

Electrical connection values

Rated voltage 150 V
Test voltage 1.5 kV
Overvoltage category according to IEC EN 60664-1 II
Connection 1
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Conductor identification Color code
Conductor cross-section 16 x 0.5 mm² / 3 x 1 mm²
Number of conductors 19
Dynamic bending radius 10x cable diameter
Fire behavior flame retardant according to DIN EN 60332-1-2
Storage temperature -25 ... 80 °C
Cable type straight
Cable diameter
approx. 10.4 mm
Cable length 6 m
Sheath color black
Drag chain suitability Yes
Cable ambient temperature (dynamic) -20 ... 80 °C
Cable ambient temperature (static) -20 ... 80 °C
Material
Sheath PUR
Conductor Cu flexible wire, bare, super fine strands
Conductor insulation PP
Connection 2
Conductor end Sheath stripped
Connection type flying lead
Connection 1
Connection type Plug connector M23
Connection type Female plug
Plug connector designation RC (With shield spring)
Cable outlet straight
Number of pins 19 (18+PE)
Degree of protection IP65/IP67 (locked)
Plug lock Screw connection
Insertion cycles 50
Material
Plug lock CuZn, nickel plated
Plug housing CuZn, nickel plated

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,4 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 077014
Item designation C-M23F19-19XDIFPU06,0-MA-077014
Gross weight 1,317kg
Global Trade Item Number (GTIN) 4047048006454
Customs tariff number 85444290900
ECLASS 27-06-03-04 Appliance cord (data cable)
