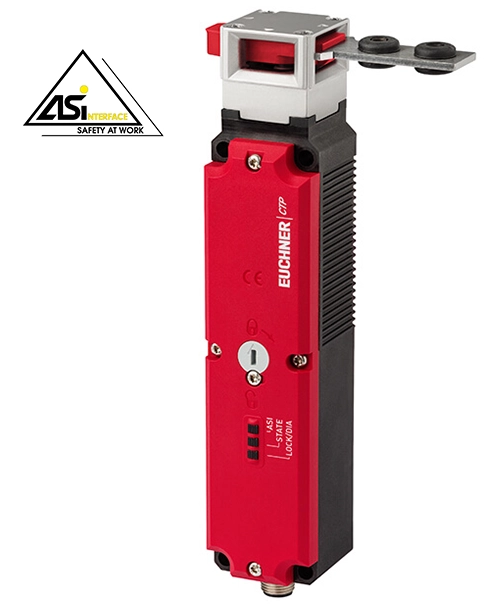

Safety switch CTP-AS
Benefits for you
- Integrated AS-i connection
- Robust housing with degree of protection IP67/IP69/IP69K
- Compact design
- Locking force 3900 N
- Comprehensive, detailed diagnostics option
- Mounting compatible with existing electromechanical safety switches
Design and functionality
The CTP-AS can be operated directly on the AS-i bus and provides the control system with both the door position and information about the locking position. Information about a possible malfunction in the switch can also be diagnosed directly in the control system.Operation on all known AS-i safety monitors in the proven manner is a matter of course. It is possible to change from an electromechanical safety switch to the CTP in PL e without modifying the software on the monitor.
Product finder
Products (6)
No results found
166889
CTP-I2-AS2B-U-HA-AZC-SJ-166889
Safety switch CTP-I2-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
CTP-I2-AS2B-U-HA-AZC-SJ-166889
Safety switch CTP-I2-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 3,900 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- Approach directions A, B and C (delivery state)
126645
CTP-L1-AS1B-M-HA-AZ-SJ-126645
Safety switch CTP-L1-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
CTP-L1-AS1B-M-HA-AZ-SJ-126645
Safety switch CTP-L1-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 3,900 N
- Category 4 / PL e according to EN ISO 13849-1
- Multicode
- Approach directions A, B and C (delivery state)
126644
CTP-L1-AS1B-U-HA-AE-SJ-126644
Safety switch CTP-L1-AS – with AS-i connection, plug connector M12, with escape release (closed-circuit current principle)
CTP-L1-AS1B-U-HA-AE-SJ-126644
Safety switch CTP-L1-AS – with AS-i connection, plug connector M12, with escape release (closed-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 3,900 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- With escape release
- Approach directions A, B and C (delivery state)
124987
CTP-L1-AS1B-U-HA-AZ-SJ-124987
Safety switch CTP-L1-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
CTP-L1-AS1B-U-HA-AZ-SJ-124987
Safety switch CTP-L1-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 3,900 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- Approach directions A, B and C (delivery state)
126646
CTP-L2-AS1B-M-HA-AZ-SJ-126646
Safety switch CTP-L2-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
CTP-L2-AS1B-M-HA-AZ-SJ-126646
Safety switch CTP-L2-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 3,900 N
- Category 4 / PL e according to EN ISO 13849-1
- Multicode
- Approach directions A, B and C (delivery state)
124988
CTP-L2-AS1B-U-HA-AZ-SJ-124988
Safety switch CTP-L2-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
CTP-L2-AS1B-U-HA-AZ-SJ-124988
Safety switch CTP-L2-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 3,900 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- Approach directions A, B and C (delivery state)
