CES-A-LNN-SC-106601 (Order no. 106601)

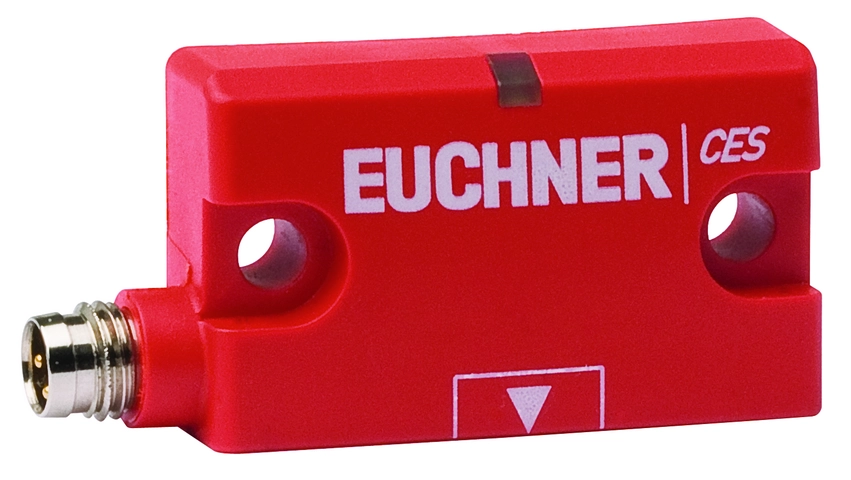

Read head CES-A-LNN-SC... M8 plug connector

  • Cube-shaped design 42 x 25 mm
  • Mounting compatible with series CES-A-LNA/LCA
  • LED for indicating the door position
  • With plug connector M8
CES-A-LNN-SC-106601 (Order no. 106601)

Description

Combination options

Suitable for connection to a CES-AZ evaluation unit

Attention: The actuating range may vary depending on the substrate material and installation situation.

Important: Actuators must be ordered separately!

Approach directions

<p>Approach directions</p>

Typical actuating range

<p>Typical actuating range</p>

For a side approach direction for the actuator and read head, a minimum distance of s = 6 mm must be maintained so that the actuating range of the side lobes is not entered.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings
1Active face
2LED

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_3/1

Operating and display elements

LED display white: valid actuator detected

Electrical connection values

Power supply via evaluation unit

Mechanical values and environment

Connection type M8 plug connector, 3-pin
Tightening torque
Fixing screws max. 1 Nm
Installation orientation any
Cable length
maximum allowed max. 25 m
Degree of protection IP67
Ambient temperature -25 ... +70 °C
Material
Housing Reinforced thermoplastic (PBT), fully encapsulated
Method of operation inductive

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 15,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 106601
Item designation CES-A-LNN-SC-106601
Gross weight 0,027kg
European Article Number (EAN) 4047048006034
Customs tariff number 85389099990
ECLASS 27-27-24-03 Safety-related transponder switch
