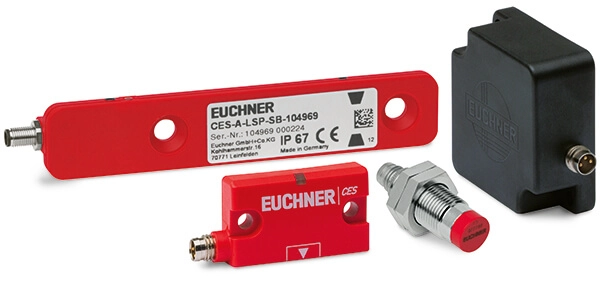

Read Heads CES
Description
The read head is fastened to the fixed part of the guard and is connected to the evaluation unit via a two-core screened cable. The actuator fastened to the guard is moved towards the read head by closing the door. When the operating distance is reached, power is supplied to the actuator via the read head and the read head transfers the actuator’s data to the evaluation unit.
Transponder-coded read heads
Actuator and read head have a wide actuating range and a broad hysteresis. Misalignment of the door will therefore not result in the system switching off unintentionally. If the actuator is positioned exactly at the limit of the operating distance, vibration at the guard will not cause the machine to stop unintentionally.Product finder
Products (16)
No results found
088785
CES-A-LCA-10V
Read head CES-A-LCA..., hard-wired encapsulated cable 10 m, PVC
CES-A-LCA-10V
Read head CES-A-LCA..., hard-wired encapsulated cable 10 m, PVC
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PVC
- Cable length 10 m
- Two safety screws M4x14 included
077790
CES-A-LMN-SC
Read head CES-A-LMN-SC, M8 plug connector
CES-A-LMN-SC
Read head CES-A-LMN-SC, M8 plug connector
- Cylindrical design M12
- M8 plug connector
077806
CES-A-LNA-05P-077806
Read head CES-A-LNA..., hard-wired encapsulated cable 5 m, PUR
CES-A-LNA-05P-077806
Read head CES-A-LNA..., hard-wired encapsulated cable 5 m, PUR
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PUR
- Cable length 5 m
- Two safety screws M4x14 included
071845
CES-A-LNA-05V-071845
Read head CES-A-LNA..., hard-wired encapsulated cable 5 m, PVC
CES-A-LNA-05V-071845
Read head CES-A-LNA..., hard-wired encapsulated cable 5 m, PVC
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PVC
- Cable length 5 m
- Two safety screws M4x14 included
077807
CES-A-LNA-10P-077807
Read head CES-A-LNA..., hard-wired encapsulated cable 10 m, PUR
CES-A-LNA-10P-077807
Read head CES-A-LNA..., hard-wired encapsulated cable 10 m, PUR
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PUR
- Cable length 10 m
- Two safety screws M4x14 included
071846
CES-A-LNA-10V-071846
Read head CES-A-LNA..., hard-wired encapsulated cable 10 m, PVC
CES-A-LNA-10V-071846
Read head CES-A-LNA..., hard-wired encapsulated cable 10 m, PVC
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PVC
- Cable length 10 m
- Two safety screws M4x14 included
084682
CES-A-LNA-15P-084682
Read head CES-A-LNA..., hard-wired encapsulated cable 15 m, PUR
CES-A-LNA-15P-084682
Read head CES-A-LNA..., hard-wired encapsulated cable 15 m, PUR
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PUR
- Cable length 15 m
- Two safety screws M4x14 included
071847
CES-A-LNA-15V-071847
Read head CES-A-LNA..., hard-wired encapsulated cable 15 m, PVC
CES-A-LNA-15V-071847
Read head CES-A-LNA..., hard-wired encapsulated cable 15 m, PVC
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PVC
- Cable length 15 m
- Two safety screws M4x14 included
071975
CES-A-LNA-25V-071975
Read head CES-A-LNA..., hard-wired encapsulated cable 25 m, PVC
CES-A-LNA-25V-071975
Read head CES-A-LNA..., hard-wired encapsulated cable 25 m, PVC
- Cube-shaped design 42 x 25 mm
- Hard-wired encapsulated cable made of PVC
- Cable length 25 m
- Two safety screws M4x14 included
077715
CES-A-LNA-SC-077715
Read head CES-A-LNA-SC, M8 plug connector
CES-A-LNA-SC-077715
Read head CES-A-LNA-SC, M8 plug connector
- Cube-shaped design 42 x 25 mm
- With plug connector M8
- Two safety screws M4x14 included
106602
CES-A-LNN-05V-106602
Read head CES-A-LNN-...hard-wired encapsulated cable 5 m, PVC
CES-A-LNN-05V-106602
Read head CES-A-LNN-...hard-wired encapsulated cable 5 m, PVC
- Cube-shaped design 42 x 25 mm
- Mounting compatible with series CES-A-LNA/LCA
- LED for indicating the door position
- Hard-wired encapsulated cable, PVC
- Cable length 5 m
113294
CES-A-LNN-10V-113294
Read head CES-A-LNN-...hard-wired encapsulated cable 10 m, PVC
CES-A-LNN-10V-113294
Read head CES-A-LNN-...hard-wired encapsulated cable 10 m, PVC
- Cube-shaped design 42 x 25 mm
- Mounting compatible with series CES-A-LNA/LCA
- LED for indicating the door position
- Hard-wired encapsulated cable, PVC
- Cable length 10 m
115107
CES-A-LNN-25V-115107
Read head CES-A-LNN-...hard-wired encapsulated cable 25 m, PVC
CES-A-LNN-25V-115107
Read head CES-A-LNN-...hard-wired encapsulated cable 25 m, PVC
- Cube-shaped design 42 x 25 mm
- Mounting compatible with series CES-A-LNA/LCA
- LED for indicating the door position
- Hard-wired encapsulated cable, PVC
- Cable length 25 m
106601
CES-A-LNN-SC-106601
Read head CES-A-LNN-SC... M8 plug connector
CES-A-LNN-SC-106601
Read head CES-A-LNN-SC... M8 plug connector
- Cube-shaped design 42 x 25 mm
- Mounting compatible with series CES-A-LNA/LCA
- LED for indicating the door position
- With plug connector M8
095650
CES-A-LQA-SC
Read head CES-A-LQA-SC, M8 plug connector
CES-A-LQA-SC
Read head CES-A-LQA-SC, M8 plug connector
- Cube-shaped design 50 x 50 mm
- M8 plug connector
- Two safety screws M4x14 included
104966
CES-A-LSP-05V-104966
Read head CES-A-LSP-..., hard-wired encapsulated cable, 5 m, PVC
CES-A-LSP-05V-104966
Read head CES-A-LSP-..., hard-wired encapsulated cable, 5 m, PVC
- Optimized for aluminum profile mounting
- LED for indicating the door position
- Hard-wired encapsulated cable made of PVC
- Cable length 5 m
