HomeProductsTransponder-coded read heads with external evaluationCEM read headsCEM-A-ME05K-S1

CEM-A-ME05K-S1 (Order no. 109755)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

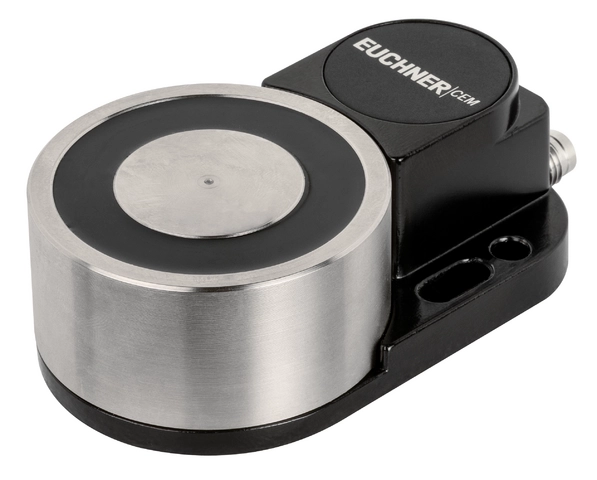

Mounting magnet CEM with guard locking

Solenoid for locking access doors
Locking force 650 N
With remanence
No guard lock monitoring, no monitoring of the door position
Connection using an M8 plug connector

Description

Combination options

Suitable for connection to a CES-AZ evaluation unit

Dimensional drawings

Connection examples

Technical data

Approvals

Workspace

Center offset	-2.5 ... +2.5 mm

Center offset

-2.5 ... +2.5 mm

Electrical connection values

Power consumption	2.5 W
Operating voltage DC
U_CM	24 V DC -15% ... +10%
Solenoid duty cycle	100 %
Current consumption
U_B	100 mA

Mechanical values and environment

Connection type
X1, solenoid (yellow LED integrated in the plug)	Plug connector M8x1, 4-pin, plug (with snap-action/screw terminal)
Installation orientation	any
Adhesive force
due to remanence	10 N -25% ... +25%
Mechanical life
in case of use as door stop, and 1 Joule impact energy	1 x 10⁶
Degree of protection	IP67
Ambient temperature	-25 ... +50 °C
Material
Solenoid	Steel, nickel plated
Housing	Die-cast aluminum
Cover	Plastic (PPS)
Locking force F
(not monitored, in axial direction) at U_CM=24 V	650 N
Guard locking principle	Open-circuit current principle

Accessories

Actuator

Actuator CEM-A-BE05

094805
CEM-A-BE05

Locking force 650 N
Two safety screws M5x16 included

Connection accessories

Connecting cable with angled plug connector M8, 4-pin, 10 m

084703
C-M08F04-04X025PV10,0-ES-084703

M8 female plug, 4-pin
Angled plug connector
PVC cable
Cable length 10 m
With flying lead

Connecting cable with plug connector M8, 4-pin, 10 m

088814
C-M08F04-04X025PV10,0-ES-088814

M8 female plug, 4-pin
Straight plug connector
PVC cable
Cable length 10 m
With flying lead

116050
C-M08F04-04X034PU10,0-ES-116050

M8 female plug, 4-pin
Straight plug connector
PUR cable
Cable length 10 m
With flying lead

Connecting cable with plug connector M8, 4-pin, 15 m

088815
C-M08F04-04X025PV15,0-ES-088815

M8 female plug, 4-pin
Straight plug connector
PVC cable
Cable length 15 m
With flying lead

Connecting cable with plug connector M8, 4-pin, 20 m

116051
C-M08F04-04X034PU20,0-ES-116051

M8 female plug, 4-pin
Straight plug connector
PUR cable
Cable length 20 m
With flying lead

Connecting cable with plug connector M8, 4-pin, 25 m

095035
C-M08F04-04X025PV25,0-ES-095035

M8 female plug, 4-pin
Straight plug connector
PVC cable
Cable length 25 m
With flying lead

Connecting cable with plug connector M8, 4-pin, 5 m

088813
C-M08F04-04X025PV05,0-ES-088813

M8 female plug, 4-pin
Straight plug connector
PVC cable
Cable length 5 m
With flying lead

116049
C-M08F04-04X034PU05,0-ES-116049

M8 female plug, 4-pin
Straight plug connector
PUR cable
Cable length 5 m
With flying lead

Mounting accessories

Safety screws M5 x 16

073456
M5X16/V100

Safety screws M5 x 16
Packaging unit 100 pieces

Downloads

Complete package

Download all important documents with a single click.

Content:

The operating instructions and any additions to the operating instructions or brief instructions
Any data sheets to supplement the operating instructions
The declaration of conformity

Download Complete Package (ZIP, 0,5 MB)

Single Documents

Data sheets

Data sheet

Doc. no.

Version

Language

Size

Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データシート
데이터 시트
Datový list

Declarations of conformity

EU-Konformitätserklärung

Doc. no.

Version

Language

Size

EU-Konformitätserklärung

UKCA-Konformitätserklärung

Doc. no.

Version

Language

Size

UKCA-Konformitätserklärung

Other Documents

Approvals and certificates

Approval

Doc. no.

Version

Language

Size

Approval
Homologation
Homologación
EAC
Homologação
Omologazione
认证
認可
승인
Сертификат
Atest
Engedély
Разрешително
Godkendelse
Heakskiit
Hyväksyntä
Έγκριση
Odobrenje
Atļauja
Patvirtinimas
Goedkeuring
Godkjenning
Dopuszczenie
Godkännande
Dovoljenje
Povolenie
Onay
Дозвіл

S-Mark

Doc. no.

Version

Language

Size

c UL us

Doc. no.

Version

Language

Size

Sales documents

Sistemas de seguridad codificados por transponder CEM con bloqueo para la protección de procesos

Doc. no.

Version

Language

Size

Sistemas de seguridad codificados por transponder CEM con bloqueo para la protección de procesos

Sistemas de seguridad con codificación por transponder y evaluación externa

Doc. no.

Version

Language

Size

Sistemas de seguridad con codificación por transponder y evaluación externa

Sistemi di sicurezza con codifica a transponder CEM con meccanismo di ritenuta per la protezione del processo

Doc. no.

Version

Language

Size

Sistemi di sicurezza con codifica a transponder CEM con meccanismo di ritenuta per la protezione del processo

Systèmes de sécurité à codage par transpondeur CEM avec verrouillage pour la protection du process

Doc. no.

Version

Language

Size

Systèmes de sécurité à codage par transpondeur CEM avec verrouillage pour la protection du process

Systèmes de sécurité à codage par transpondeur avec analyse externe

Doc. no.

Version

Language

Size

Systèmes de sécurité à codage par transpondeur avec analyse externe

Transponder-coded safety systems - CEM with guard locking for process protection

Doc. no.

Version

Language

Size

Transponder-coded safety systems - CEM with guard locking for process protection

Transpondercodierte Sicherheitssysteme - CEM mit Zuhaltung für den Prozessschutz

Transponder-coded safety systems with external evaluation

Doc. no.

Version

Language

Size

Transponder-coded safety systems with external evaluation

Transpondercodierte Sicherheitssysteme mit externer Auswertung

Doc. no.

Version

Language

Size

Transpondercodierte Sicherheitssysteme mit externer Auswertung

Ordering data

Ordernumber	109755
Item designation	CEM-A-ME05K-S1
Gross weight	0,419kg
Customs tariff number	85365019000
ECLASS	27-27-24-05 Safety-related transponder switch with guardlocking
