SW ELECTRONIC-KEY-MANAGER EKM2 DEMO (Order no. 8000211)

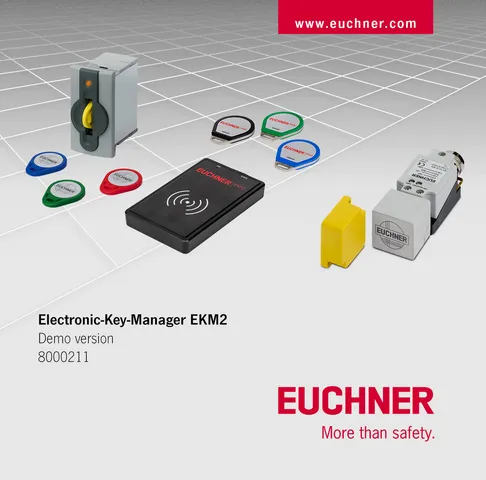

Electronic-Key-Manager EKM2 Demo Version

  • Reading and writing CIS data carriers and EKS / EKS2 Electronic-Keys
  • Database for managing the keys
  • Editor for customizing texts in input masks
  • Export and import of projects
  • Limited to a term of 90 days
  • Input masks, projects and the database created with the demo version can continue to be used with the full version.
SW ELECTRONIC-KEY-MANAGER EKM2 DEMO (Order no. 8000211)

Description

Product description

The Electronic-Key-Manager EKM2 Basic application software is used to read and write CIS data carriers or EKS / EKS2 Electronic-Keys on a standard PC.
The software is used in conjunction with a read/write station with a serial interface or USB interface.

Licensing

The software requires a license. Before use, the license must be activated once for the desired PC.

Suitable for

Read/write stationSystemKey/data carrierIllustration of the programmed data on the data carrier
CIS read/write station with serial interfaceIdentification System CISCIS3(A) with
  • 16-byte read/write memory
  • ASCII and hex view
CIS3A-Mini with
  • 116-byte read/write memory
CIS3A-Mini with
  • 5-byte read-only memory
EKS read/write station with serial interface or USB interfaceElectronic-Key-System EKSElectronic-Key EKS with
  • 116-byte read/write memory

  • 8-byte fixed-code memory (serial number)
  • ASCII and hex view
EKS2 Programming StationElectronic-Key-System EKSElectronic-Key EKS with
  • 116-byte read/write memory

  • 8-byte fixed-code memory (serial number)
  • ASCII and hex view
Electronic-Key-System EKS2Electronic-Key EKS2 with
  • 4096-byte read/write memory

  • 7-byte fixed-code memory (serial number)
  • ASCII and hex view

  • Additional input fields for data structures with predefined functions

Technical data

Miscellaneous

Automatische Updates möglich Yes
Product version number V1.0.0

Systemanforderungen

Betriebssystem Windows® 10 64-Bit, Windows® 11 64-Bit
Hardware Standard PC

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,7 MB)

Ordering data

Ordernumber 8000211
Item designation SW ELECTRONIC-KEY-MANAGER EKM2 DEMO
Gross weight 0,kg
Customs tariff number 00000000
ECLASS 27-39-90-90 Property, access monitor (other, unspecified)
