EKS-A-IUX-G01-ST01 (Order no. 092750)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

Electronic-Key adapter with USB interface

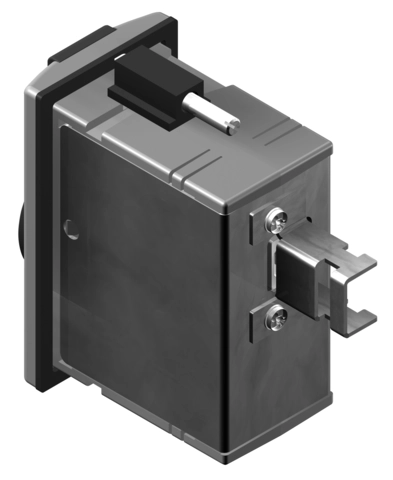

Electronic-Key adapter with USB interface in housing G01
Read/write system
Power supply via USB interface
Type B socket connection
Electronic-Key adapter and electronics in one housing
Transfers the data from the Electronic-Key to a control system for processing
Connection to PC
Virtual serial COM port
Open communication commands at the lowest level
3964R protocol
Connection to the user software possible via ActiveX® module under Windows®
Very reliable retention of the Electronic-Key, even if there is heavy vibration
Especially recommended for setting up a programming station on a PC
Degree of protection: IP65/IP67 (installed)
LED indicator

Description

Dimensional drawings

Connection examples

Technical data

Approvals

Operating and display elements

LED display
yellow	Key in the actuating range
green	operational

Electrical connection values

Power supply	via USB
Current consumption
I_B	max. 100 mA

Mechanical values and environment

Installation orientation	on the front
Storage temperature	-25 ... 70 °C
Mounting cut-out	33 x 68 mm
Degree of protection
in mounted condition (only access side)	IP65/IP67
Ambient temperature	0 ... 55 °C
Material
Housing	Plastic (PA6 GF30, gray)
	USB interface
Connection type	USB type B socket
Cable length	max. 3 m USB

Interface

	USB interface
Data protocol	3964R via USB
Data rate	9.6 ... 28.8 kbit/s
Interface
to PC	USB Full Speed (compatible with all USB versions)

Accessories

.NET

.NET 3964R library

8000140
SW .NET 3964R LIBRARY

Protocol driver software for integrating the EKS Electronic-Key adapters with serial or USB interface as well as the identification systems CIS with a serial interface into a PC application

Connection material

Connecting cable with USB type B to female plug, 5-pin

095633
EKS USB - PC INTERN

USB 2.0 cable type B to tab connector, 4-core
Straight plug connector
Cable length 0.8 m
double-screened cable

EKM

Electronic Key Manager EKM Light version

8111410
SW ELECTRONIC-KEY-MANAGER EKM LIGHT

Software for setting key parameters
Only local EKM client, no network support
No access to key database and no key database export/import

Electronic Key Manager EKM demo version

8093320
SW ELECTRONIC-KEY-MANAGER EKM DEMO

Software for key management
Client/server architecture, full network support, optional TLS-encrypted communication
Access to key database and key database export/import in csv format
The input mask and database created with the demo version can continue to be used with the full version
Includes REST API for connecting the EKM server to an external application via HTTP or HTTPS for reading or changing key data records
Limited to 10 weeks runtime

Electronic Key Manager EKM full version

8093322
SW ELECTRONIC-KEY-MANAGER EKM FULL

Software for key management
Client/server architecture, full network support, optional TLS-encrypted communication
Access to key database and key database export/import in csv format
Forms and databases prepared using the demo version, light version or single-user version can continue to be used with the full version
Includes REST API for connecting the EKM server to an external application via HTTP or HTTPS for reading or changing key data records

Electronic Key Manager EKM single-user version

8098578
SW ELECTRONIC-KEY-MANAGER EKM SINGLE

Software for key management
Only local EKM client, no network support
Access to key database and key database export/import in csv format
Forms and databases prepared using the demo version or light version can continue to be used with the full version

EKS

ActiveX® module - serial communication

8098708
SW EKS ACTIVEX-MODULE SERIAL 3964R

Protocol driver software for integrating the EKS Electronic-Key adapters with serial or USB interface into a PC application in Windows

Electronic-Key

Electronic-Key read/write

077859
EKS-A-K1RDWT32-EU

Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number)

084735
EKS-A-K1BKWT32-EU

Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number)

091045
EKS-A-K1BUWT32-EU

Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number)

094839
EKS-A-K1GNWT32-EU

Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number)

094840
EKS-A-K1YEWT32-EU

Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number)

123097
EKS-A-K1WHWT32-EU

Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number)

123098
EKS-A-K1OGWT32-EU

Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number)

Miscellaneous

Desktop case

113106
EKS DESKTOP CASE

Establishment of a programming station for Electronic-Key management on the desk
EKS data entry station on desktop for which a degree of protection is not required
Installation of the compact version of the Electronic-Key adapter (all interfaces)
Easy installation from above in removable cover (2-piece housing, bottom open)
Strain relief for connecting cable
Including mounting parts (notice: screw clamp elements are included with the Electronic-Key adapter)
ATTENTION: Figure shows desktop case including key adapter. Electronic-Key adapter not included.

PC mounting frame

093615
EKS PC-MOUNTING FRAME

PC mounting frame for 5.25" drive bay
For installing the EKS Electronic-Key adapter in a PC
Front signal black matte RAL 9004
Including 4 fixing screws
An optional connecting cable is available for the connection from the USB Electronic-Key adapter to the internal USB connection on the motherboard

Transponder Coding software

Transponder Coding TC

8067190
SW TRANSPONDER CODING TC

Software for reading and writing CIS data carriers or EKS Electronic-Keys

Transponder Coding TC2

8000151
SW TRANSPONDER CODING TC2

Software for reading and writing CIS data carriers and EKS / EKS2 Electronic-Keys

Downloads

Complete package

Download all important documents with a single click.

Content:

The operating instructions and any additions to the operating instructions or brief instructions
Any data sheets to supplement the operating instructions
The declaration of conformity

Download Complete Package (ZIP, 4,9 MB)

Single Documents

Data sheets

Data sheet

Doc. no.

Version

Language

Size

Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データシート
데이터 시트
Datový list

Declarations of conformity

EU-Konformitätserklärung

Doc. no.

Version

Language

Size

EU-Konformitätserklärung

UKCA-Konformitätserklärung

Doc. no.

Version

Language

Size

UKCA-Konformitätserklärung

Instructions

Manual Electronic-Key Adapter EKS and EKS FSA with USB Interface

Doc. no.

Version

Language

Size

Manual Electronic-Key Adapter EKS and EKS FSA with USB Interface

Handbuch Schlüsselaufnahme EKS und EKS FSA mit USB-Schnittstelle

Příručka Klíčový adaptér EKS a EKS FSA s rozhraním USB

CAD data

Show CAD data for TraceParts

Ordering data

Ordernumber	092750
Item designation	EKS-A-IUX-G01-ST01
Gross weight	0,179kg
Global Trade Item Number (GTIN)	4047048007154
Customs tariff number	85364900
ECLASS	27-39-90-90 Property, access monitor (other, unspecified)
