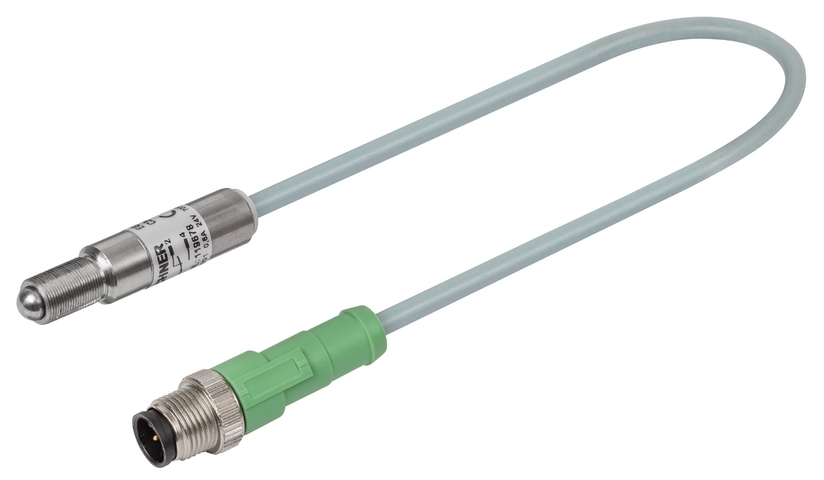

EGM8-1000C2403 (Order no. 119678)

Precision single hole fixing limit switch EGM8

  • precise and small
  • round design with thread M8x0.5
  • Housing and plunger made of stainless steel
  • with snap-action switching element
  • Any installation position
EGM8-1000C2403 (Order no. 119678)

Description

Switching element

Snap-action switching contact, 1 changeover contact

Single hole fixing limit switches must not be used as an end stop.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

CCC2024010305643589_SingleHoleswitch_EGc_UL_us_E155795_3/6

Electrical connection values

Fuse max. 2 A gG
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
AC-15 0.5 A 230 V
DC-13 0.6 A 24 V
Switching voltage
min. 12 V
Switching current
min. at 24 V 10 mA

Mechanical values and environment

Anfahrgeschwindigkeit 0.01 ... 8 m/min
Connection type Plug connector M12 with 1,000 mm cable section (4-pin)
Number NC contacts 1 (Changeover contact)
Number of NO contacts 1 (Changeover contact)
Design Thread M8 x 0.5
Actuating element Rounded plunger (short)
Actuating force 16 N
Installation orientation any
Storage temperature -30 ... 85 °C
Cable length 1 m
Mechanical life
On side 0.003 x 10⁶ (With trip dogs U1216-10, unlubricated)
axial 1 x 10⁶
Switching principle Snap-action switching contact
Degree of protection IP65
Ambient temperature -30 ... 85 °C
Material
Housing stainless steel
Contact Silver alloy, gold plated
Repeat accuracy (absolute) ±0.01 mm (on axial actuation in the retracted state after approx. 2,000 operating cycles)

Miscellaneous

C number
C2403 Rounded plunger

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,4 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 119678
Item designation EGM8-1000C2403
Gross weight 0,06kg
Customs tariff number 85365019000
ECLASS 11.0 27-27-06-01 Position switch (Type 1)
