N11RL-M (Order no. 086299)

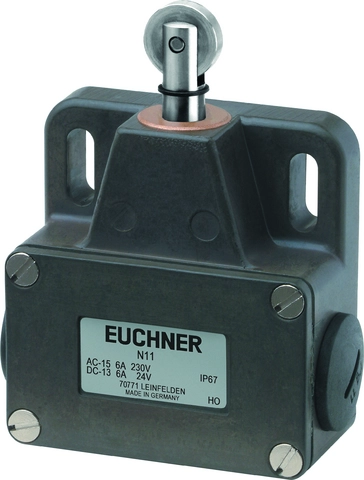

Precision single limit switch N11, extended roller plunger

  • Plunger material stainless steel
N11RL-M (Order no. 086299)

Description

Dimension drawing
Dimension drawing
Wiring diagram ES502E
Wiring diagram ES502E

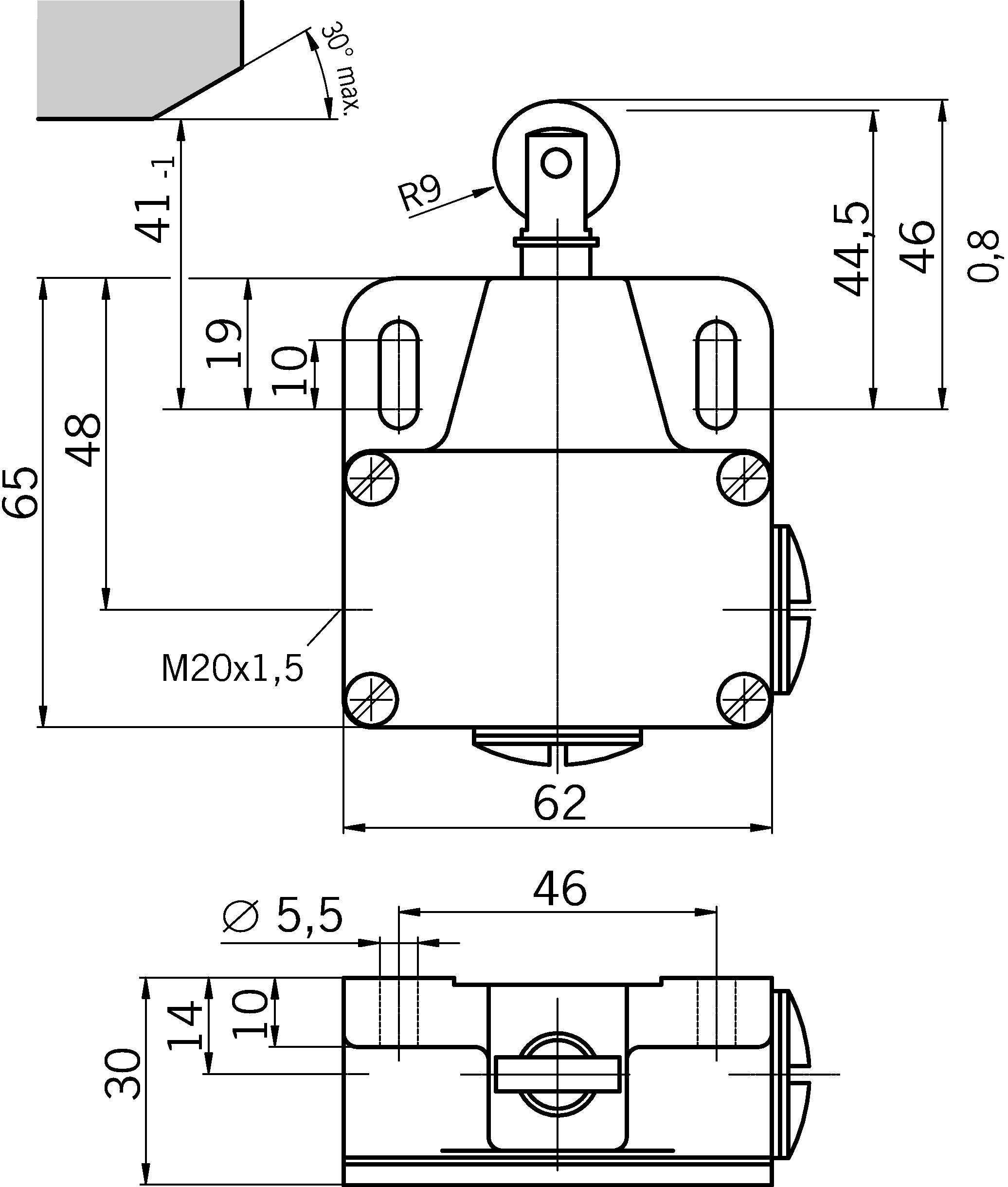

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20

Electrical connection values

Fuse max. 16 A gG
Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
AC-12 16 A 230 V
DC-13 6 A 24 V
AC-15 10 A 230 V
Switching current
min. at DC 24V 20 mA
thermal rated current Ith 10 A

Mechanical values and environment

Anfahrgeschwindigkeit 0.01 ... 20 m/min
Connection type
3 x M20 x 1.5
Number of door position NC contacts 1
Number of door position NO contacts 1
Actuating element
Slide bearing metal Extended roller plunger (D roller = 18 mm)
Actuating force min. 20 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 30 x 10⁶
Switching principle Snap-action switching contact
Degree of protection IP67
Ambient temperature -5 ... 80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10D 20 x 10⁶

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,7 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 086299
Item designation N11RL-M
Gross weight 0,214kg
Customs tariff number 85365019000
ECLASS 27-27-06-01 Position switch (Type 1)
