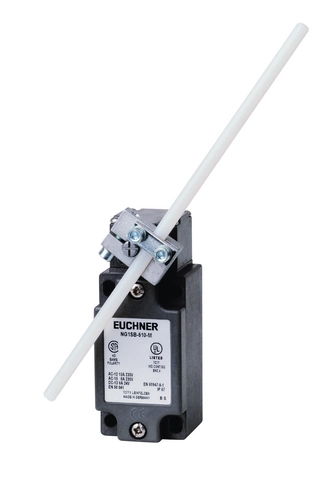

NG1SB-510-M (Order no. 088609)

Position switch NG.SB, plastic rod

  • Pivoted lever arm SB (plastic rod)
  • Cable entry M20 x 1.5
NG1SB-510-M (Order no. 088609)

Description

Switching element

510

Snap-action switching contact 1 NC + 1 NO

Adjustment options

Horizontal and vertical 4 x 90°

Switching direction

Switches to the right, left or both sides

Dimension drawing
Dimension drawing
Wiring diagram 510
Wiring diagram 510
Travel diagram
Travel diagram
Electromechanical safety switches in use

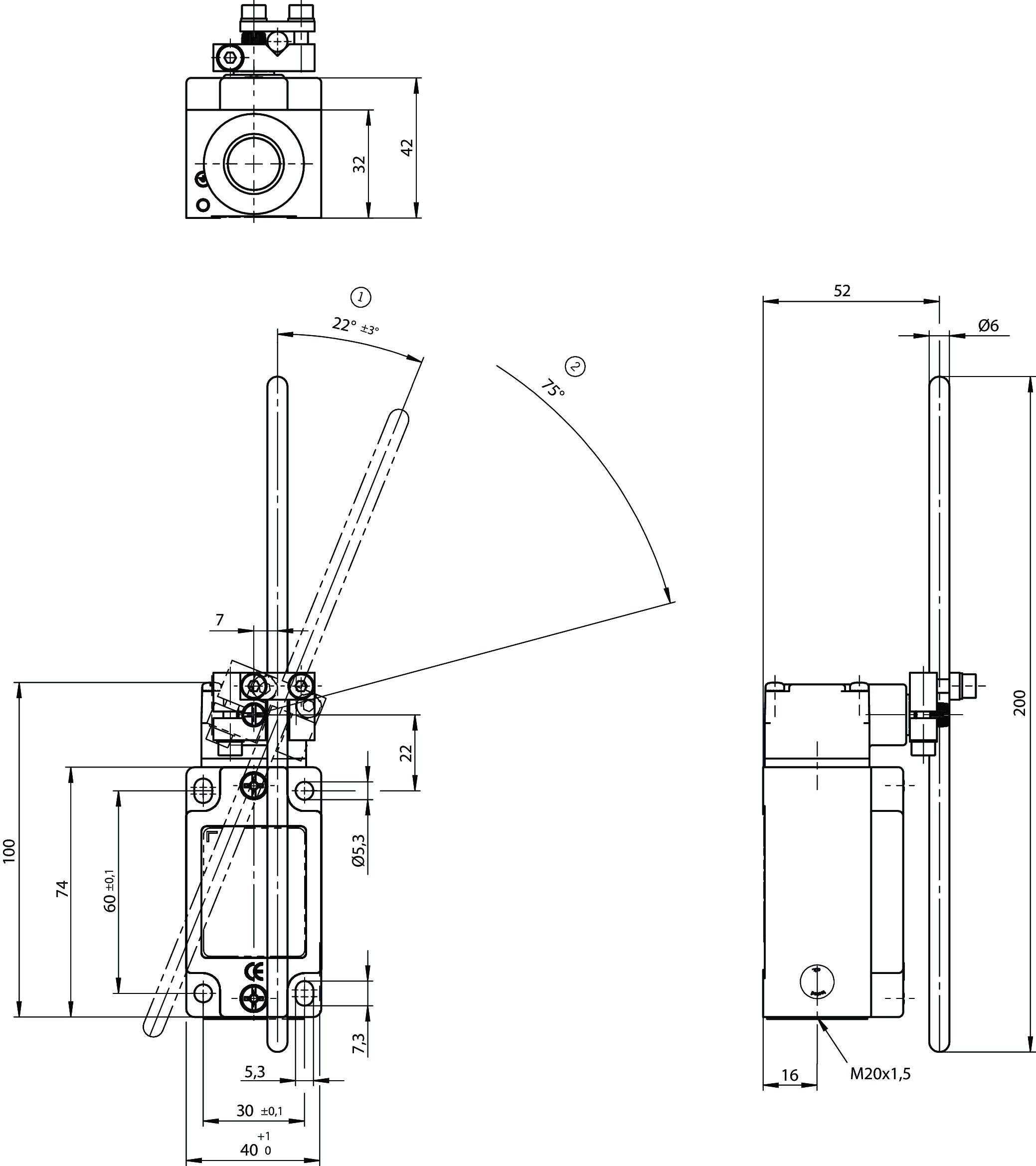

Dimensional drawings

Dimensional drawings
1Operating point
2Final position

Connection examples

Connection examples

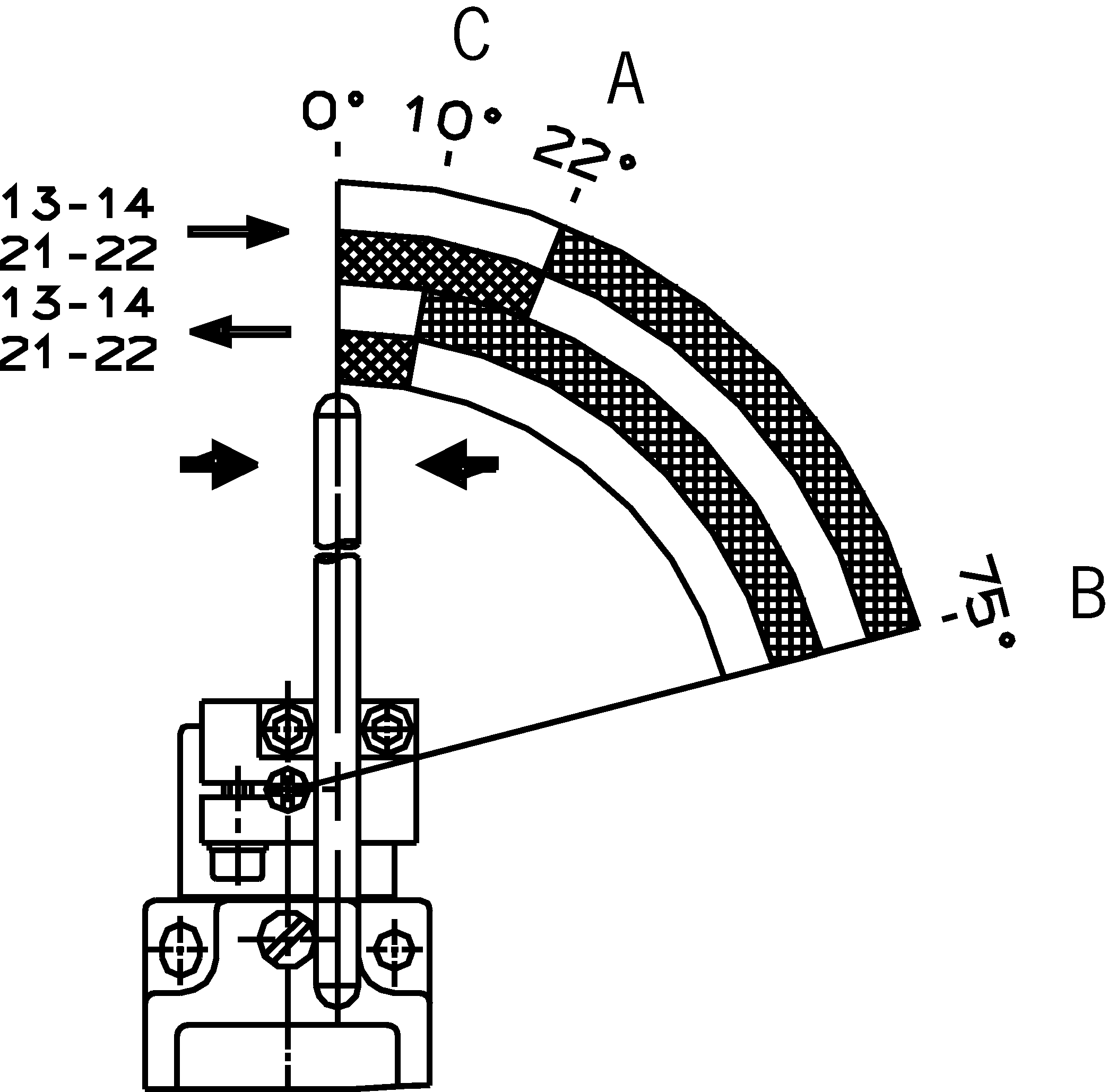

Shift travel diagrams

Shift travel diagrams
AOperating point
BEnd position
CReset point
Contacts closed
Contacts open

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_2/1

Electrical connection values

Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 6 A 24 V
AC-15 6 A 230 V
AC-12 10 A 230 V
Short circuit protection according to IEC 60269-1 6A gG
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 6 A

Mechanical values and environment

Approach speed 0.5 ... 60 m/min
Connection type
1 x M20 x 1.5
Number of door position NC contacts 1
Number of door position NO contacts 1
Actuating element Pivoted lever arm (Plastic rod)
Actuating force min. 15 N
Installation orientation any
Mechanical life 30 x 10⁶
Contact bounce time max. 3 ms
Switching principle Snap-action switching contact
Contact closing time max. 4 ms
Degree of protection IP67
Ambient temperature -25 ... +80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 088609
Item designation NG1SB-510-M
Gross weight 0,355kg
Customs tariff number 85365019000
ECLASS 27-27-06-01 Position switch (Type 1)
