SN02R12-514-MC1985 (Order no. 087083)

Series SN... 12 mm, mechanical

  • Plunger spacing 12 mm
  • Upright housing, small flange
  • Degree of protection IP67 according to IEC 60529
SN02R12-514-MC1985 (Order no. 087083)

Description

Switching elements

ES 514

Snap-action switching contact 1 NC + 1 NO

On the usage of safety switching elements, the dog distance must be maintained to achieve the positively driven travel. The dogs must be positively mounted according to EN ISO 14119, i.e. riveted, welded or secured in some other way against becoming loose.

Dimension drawing
Dimension drawing
Wiring diagram ES514
Wiring diagram ES514

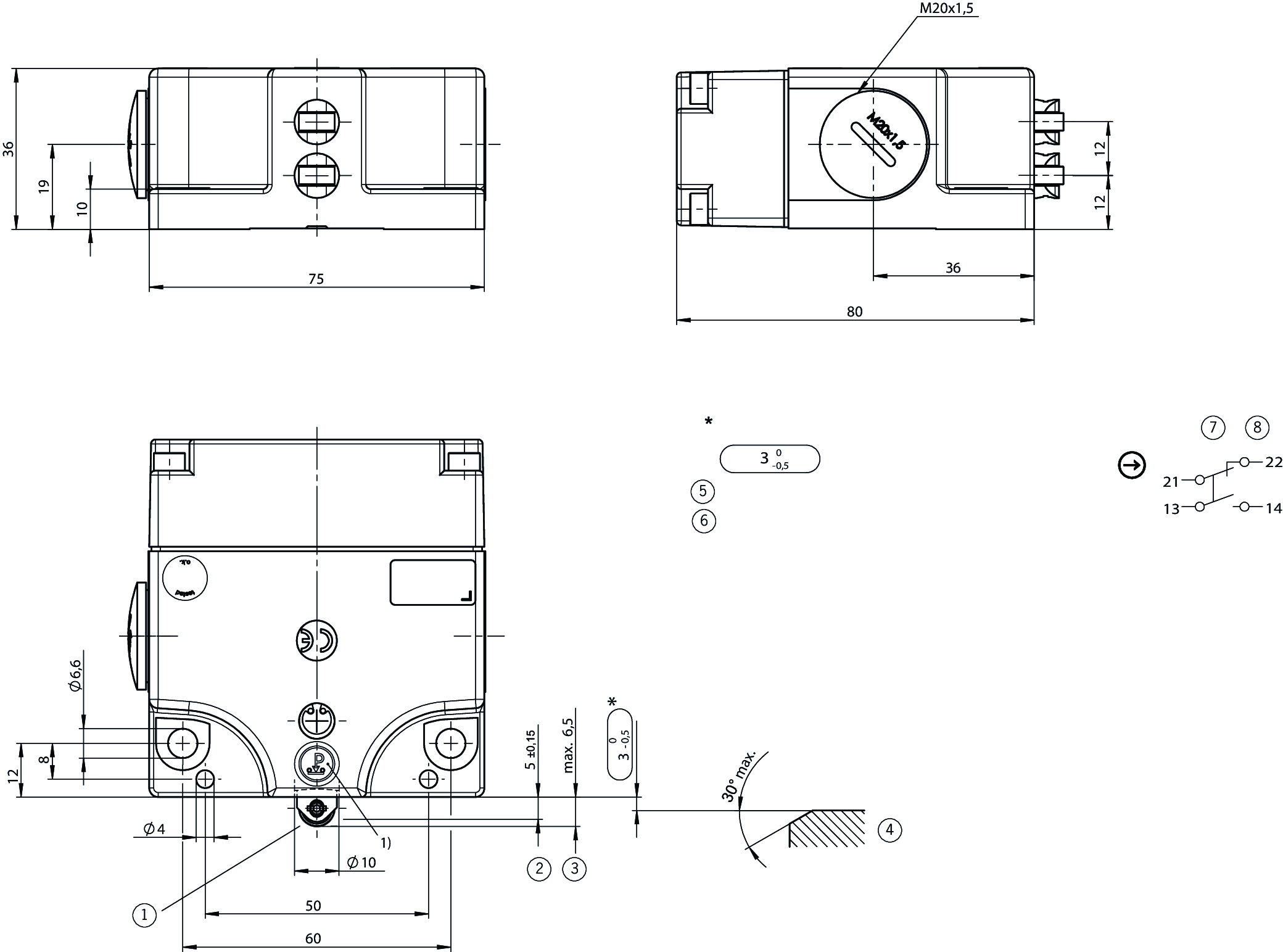

Dimensional drawings

Dimensional drawings
*Safety switching element ES514 positive opening. Positive opening function is dependent on maintaining this distance.
1Roller plunger with ball bearings + soft spring
1)Pressure sensitive label 041734 applied.
2Operating point
3Free position
4Dog
5Actuators (dogs) must be connected to the machine in a flush position.
6Switch can be replaced only with the same type.
7Switching element ES514 with snap-action function: 1 NO contact and 1 positively driven NC contact with double gap and electrically isolated switching bridge.
8Operating cycles:1 million. Only with stipulated actuation approach speed: max. 80 m/min.

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_3/6CCC_2020980305000540_CQC2008010305306206

Electrical connection values

Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 4 kV
Utilization category
AC-15 2.5 A 230 V
DC-13 6 A 24 V
Short circuit protection according to IEC 60269-1 6A gG
Switching current
min. at DC 24V min. 5 mA
thermal rated current Ith 10 A

Mechanical values and environment

Approach speed 0.01 ... 120 m/min
Connection type 2 x M20 x 1.5
Number of switching elements 2
Number of NO contacts 2
Number of positively driven contacts 2
Design upright
Actuating element Roller plunger (Ball bearings)
Actuating force min. 25 N
Installation orientation any
Mechanical life 1 x 10⁶
Contact bounce time ≤ 3ms
Roller diameter 8
Switching principle Snap-action switching contact
Contact closing time ≤ 5ms
Degree of protection IP67
Plunger spacing 12 mm
Ambient temperature -5 ... +80 °C
Material
Housing Die-cast aluminum, anodized
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10D 2 x 10⁶

Miscellaneous

C number
C1985

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,1 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 087083
Item designation SN02R12-514-MC1985
Gross weight 0,381kg
Customs tariff number 85365019000
ECLASS 27-27-06-02 Multi-position switch
